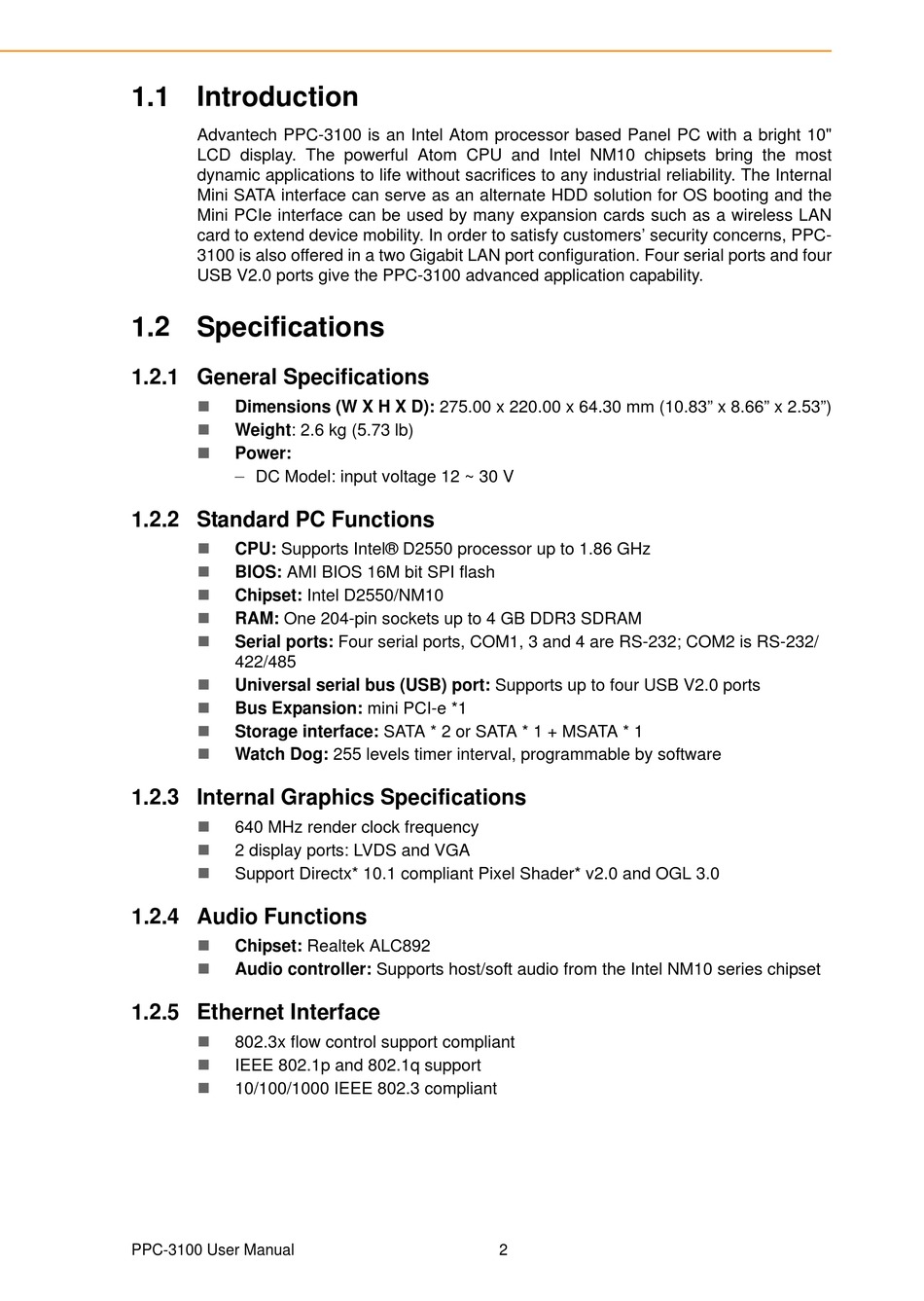

1.1 Introduction

Advantech PPC-3100 is an Intel Atom processor based Panel PC with a bright 10"
LCD display. The powerful Atom CPU and Intel NM10 chipsets bring the most
dynamic applications to life without sacrifices to any industrial reliability. The Internal
Mini SATA interface can serve as an alternate HDD solution for OS booting and the
Mini PCIe interface can be used by many expansion cards such as a wireless LAN
card to extend device mobility. In order to satisfy customers' security concerns, PPC-
3100 is also offered in a two Gigabit LAN port configuration. Four serial ports and four
USB V2.0 ports give the PPC-3100 advanced application capability.

1.2 Specifications

1.2.1 General Specifications


Dimensions (W X H X D): 275.00 x 220.00 x 64.30 mm (10.83" x 8.66" x 2.53")

Weight: 2.6 kg (5.73 lb)

Power:
– DC Model: input voltage 12 ~ 30 V

1.2.2 Standard PC Functions


CPU: Supports Intel® D2550 processor up to 1.86 GHz

BIOS: AMI BIOS 16M bit SPI flash

Chipset: Intel D2550/NM10

RAM: One 204-pin sockets up to 4 GB DDR3 SDRAM

Serial ports: Four serial ports, COM1, 3 and 4 are RS-232; COM2 is RS-232/
422/485

Universal serial bus (USB) port: Supports up to four USB V2.0 ports

Bus Expansion: mini PCI-e *1

Storage interface: SATA * 2 or SATA * 1 + MSATA * 1

Watch Dog: 255 levels timer interval, programmable by software

1.2.3 Internal Graphics Specifications


640 MHz render clock frequency

2 display ports: LVDS and VGA

Support Directx* 10.1 compliant Pixel Shader* v2.0 and OGL 3.0

1.2.4 Audio Functions


Chipset: Realtek ALC892

Audio controller: Supports host/soft audio from the Intel NM10 series chipset

1.2.5 Ethernet Interface


802.3x flow control support compliant

IEEE 802.1p and 802.1q support

10/100/1000 IEEE 802.3 compliant
