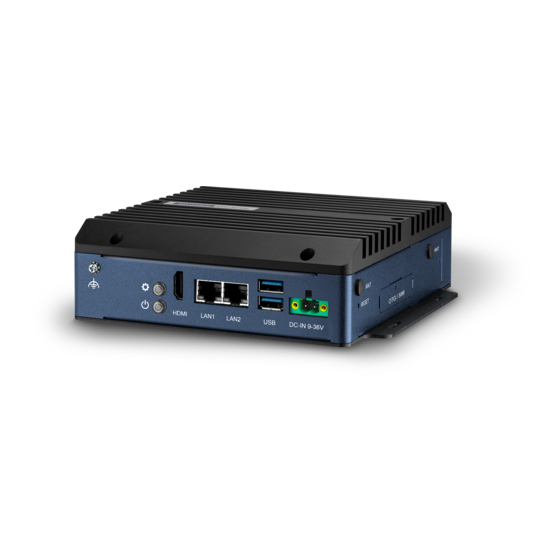

- Page 1 User Manual EPC-R7300 Edge AI Barebone Box for NVIDIA Jetson Orin NX and Nano Series Modules...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
- Page 3 This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information.
- Page 4 Technical Support and Assistance Visit the Advantech website at http://support.advantech.com where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: –...
- Page 5 The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
- Page 6 Don't touch any components on the CPU card or other cards while the PC is on. ◼ Disconnect power before making any configuration changes. The sudden rush of power as you connect a jumper or install a card may damage sensitive electronic component. EPC-R7300 User Manual...
-
Page 7: Table Of Contents
Environmental Specifications ........................... 7 Chapter 2 ..................................8 Introduction ..............................10 EPC-R7300 I/O Overview ..........................10 EPC-R7300 Front Side I/O ..........................13 2.3.1 DC in ............................... 13 2.3.2 USB Ports ..............................13 2.3.3 LAN Posts ............................... 14 2.3.4 HDMI ..............................15 2.3.5 LED Indicator ............................ - Page 8 2.5.4 M.2 2230 Key E Slot ..........................21 2.5.5 M.2 3042/52 Key B Slot .......................... 23 2.5.6 M.2 2280 Key M Slot ..........................25 NVIDIA Jetson Orin Module Installation ......................27 Chapter 3 ..................................36 NVIDIA Jetson Software ..........................37 Software Forum .............................
-
Page 9: Chapter 1
Chapter General Introduction This chapter details background Information on the EPC-R7300 Sections include: ◼ Introduction ◼ Specifications... -
Page 10: Introduction
Introduction Advantech EPC-R7300 industrial-grade barebone PC is equipped with a production carrier board that is fully compatible with three types of Jetson modules in terms of form-factor and pin configuration. Designed to serve as a complete industrial-grade system, EPC-R7300’s high-quality aluminum housing with improved heat dissipation and ESD protection provides the optimum protection. - Page 11 Environment Operating Temp. -10~60 Operating RH 5% ~ 95% relative humidity, non-condensing Mechanical Dimensions 173 x 152 x 50 mm Mounting Wall mount, DIN Rail mount (Option) Weight 1.25Kg Operating System Linux LT Ubuntu support by NVIDIA Certifications CE/FCC Class B Mechanical Specifications ◼...
-
Page 12: Electrical Specifications
Electrical Specifications ◼ Power supply type: DC-in 9-36 V. ◼ RTC Battery: – Typical voltage: 3 V – Normal discharge capacity: 210 mAh... -
Page 13: Environmental Specifications
Environmental Specifications ◼ Operating temperature: -10 ~ 60 °C ◼ Operating humidity: 5% ~ 95% relative humidity, non-condensing ◼ Storage temperature: -40 ~ 85 °C (-40 ~ 185 °F) ◼ Storage humidity: 60 °C/140 °F @ 95% RH Non-condensing... -
Page 14: Chapter 2
Chapter Hardware Installation This chapter details mechanical And connector information On the EPC-R7300 Sections include: ◼ Connector Information ◼ Mechanical Drawing ◼ Module Installation... -
Page 16: Introduction
Introduction The following sections show the external connectors and pin assignments. EPC-R7300 I/O Overview ◼ Front I/O ◼ Real I/O Depend On UIO Expansion Board You Chose. ◼ Left Side ◼ Right Side... - Page 17 ◼...
- Page 18 ◼ Bottom...
-
Page 19: Epc-R7300 Front Side I/O
EPC-R7300 Front Side I/O 2.3.1 DC in EPC-R7300 supports a lockable DC two pole terminal block that can be connected 9-24 DC external power input. DC-IN: Pin Name Pin Name + 9-36V DC 2.3.2 USB Ports EPC-R7300 supports 2 x USB3.2 Gen 2 by 2 Type A ports. -
Page 20: Lan Posts
USB2_SSRX+ USB2_SSTX- USB2_SSTX+ 2.3.3 LAN Posts EPC-R7300 supports 2 x 10/100/1000Mbps LAN ports on the front side. LAN 1 is the Ethernet function from Intel I225 PCIE to GbE LAN2 is the Ethernet function from NVIDIA Jetson integrated RGMII LAN1:... -
Page 21: Hdmi
LAN2_DB- LAN2_DD+ LAN2_DD- LED-L Green : Activity LED_R GREEN: 1000M LINK AMBER: 100M LINK 2.3.4 HDMI EPC-R7300 supports 1 HDMI 2.0, for up to 3840 x 2160 resolution at 60Hz HDMI: Pin Name Pin Name HDMI_TD2+ HDMI_TD2- HDMI_TD1+ HDMI_TD1- HDMI_TD0+... -
Page 22: Led Indicator
HDMI_HPD 2.3.5 LED Indicator EPC-R7300 supports 2 LED indicators. One is for Power indicators; one is programmable indicator. LEDs: Function Function Power LED Down Programmable LED EPC-R7300 Side I/O 2.4.1 Side Door Please use tool to unscrew the screw on the side door. -
Page 23: Nano Sim
USB OTG: Pin Name Pin Name +VBUS_5V USB_D- USB_D+ 2.4.3 Nano SIM EPC-R7300 supports 1 Nano SIM socket... -
Page 24: Epc-R7300 Bottom I/O
EPC-R7300 Bottom I/O 2.5.1 Bottom Door Please use tool to unscrew the screw on the bottom door. 2.5.2 Debug Port EPC-R7300 provides one Debug Port (CN3) for development used. - Page 25 Debug cable P/N: 1700021565-01 4P-1.25 to D-SUB 9P (F) 60cm Debug Port: Pin Name Pin Name COM_TXD COM_RXD...
-
Page 26: Recovery Key
2.5.3 Recovery Key EPC-R7300 provides one recovery key (SW1) for image programming. -
Page 27: 2230 Key E Slot
2.5.4 M.2 2230 Key E Slot EPC-R7300 provides one M.2 2230 Key E Slot for WLAN card. P/N: EWM-W159M201E WiFi5+BT5.0 M.2 2230 (E Key) Card M.2 2230 Key E Pin Name Pin Name +3.3V USB_D+ +3.3V USB_D-... - Page 28 BT_WAKEUP UART_RXD Connector KEY Connector KEY Connector KEY Connector KEY Connector KEY Connector KEY Connector KEY Connector KEY UART_TXD UART_CTS PCIE_TX0+ UART_RTS PCIE_TX0_ PCIE_RX0+ PCIE_RX0- PCIE_CLK+ PCIE_CLK- SUCLOCK_32KHz PCIE_RESET PCIE_CLKREQ W_DISABLE #1 PCIE_WAKE W_DISABLE #2 I2C_SDA I2C_SCL ALERT# +3.3V +3.3V...
-
Page 29: 3042/52 Key B Slot
2.5.5 M.2 3042/52 Key B Slot EPC-R7300 provides one M.2 3042/52 Key B Slot for WWAN card. P/N: AIW-355 DQ-E01 5G M.2 3052 (B Key) Card M.2 3042/52 Key B Pin Name Pin Name CONFIG_#3 +3.8V +3.8V POWER_OFF(1.8V) USB_D+ WWAN DISABLE... - Page 30 Connector KEY Connector KEY Connector KEY Connector KEY Connector KEY Connector KEY Connector KEY Connector KEY CONFIG_#0 USB_SSRX- SIM_RESET USB_SSRX+ UIM_CLK UIM_DATA USB_SSTX- UIM_Power USB_SSTX+ SIM_DETECT PLTRST#_V1.8 CONFIG_#1 +3.8V +3.8V +3.8V CONFIG_#2...
-
Page 31: 2280 Key M Slot
2.5.6 M.2 2280 Key M Slot EPC-R7300 provides one M.2 2280 Key M Slot for NVMe card. P/N: SQF-C8MV2-128G-EDE G M.2 2280 (M Key) Card M.2 2280 Key M Pin Name Pin Name +3.3V +3.3V... - Page 32 PETn3- PETp3 LED_1# (O) PERn3 +3.3V PERp3 +3.3V +3.3V PETn2 +3.3V PETp2 PERn2 PERp2 PETn1 PETp1 PERn1 PERp1 SMB_CLK (I/O)(0/1.8V) PETn0 SMB_DATA (I/O)(0/1.8V) PETp0 ALERT# (O)(0/1.8V) PERn0 PERST# (I)(0/3.3V) PERp0 CLKREQ# (I/O)(0/3.3V) PEWAKE# (I/O)(0/3.3V) REFCLKn Reserved for MFG_DATA REFCLKp Reserved for MFG_CLOCK Add_IN Card Key M Add_IN Card Key M Add_IN Card Key M...
-
Page 33: Nvidia Jetson Orin Module Installation
+3.3V +3.3V NVIDIA Jetson Orin Module Installation Step1 : Remove 6 screws on Top Cover and then lift up Top Cover... - Page 35 Step2 : Choose the right heat spreader according the Jeston Orin module you used Smear grease on heat spreader (Top) Remove blue tapes from thermal pad (Bottom) Fix the heat spreader on Top Cover by two screws...
- Page 37 Step3 Plug Jeston Orin module into Sockets of carrier board. Lock 2 screws to fix Jeston Orin module...
- Page 38 Step4 : Put the Top Cover on and then lock 6 screws on top of it...
- Page 41 Step5 : Enjoy your AI journey...
-
Page 42: Chapter 3
Chapter Software Resource This chapter lists the NVIDIA On-line software resource And Community... -
Page 43: Nvidia Jetson Software
NVIDIA Jetson Software ◼ Jetson Support Resource https://developer.nvidia.com/embedded/community/support-resources ◼ Jetson Wiki https://elinux.org/Jetson ◼ Jetson Jetpack SDK https://developer.nvidia.com/embedded/jetpack ◼ Jetson FAQ https://developer.nvidia.com/embedded/faq Software Forum ◼ Jetson Developer Forum https://forums.developer.nvidia.com/c/agx-autonomous-machines/jetson-embedded- systems/70 ◼ AIM-Linux Developer Forum https://forum.aim-linux.advantech.com/ ◼ NVIDIA NVONLINE https://partners.nvidia.com/... -
Page 44: Chapter 4
Chapter Advantech Services This chapter outlines Advantech’s Design-In services, technical Support and warranty policy For EPC-R7300... -
Page 45: Design-In Services
Design-In Services Advantech’s RISC Design-In Services help customers reduce the time and work required to design new carrier boards. We handle the complexities of technical research, greatly minimizing the development risks associated with carrier boards. Easy Development Advantech offers support firmware, root file systems, board support packages, and other development tools that help customers easily develop unique carrier boards and differentiate their embedded products and applications. - Page 46 Advantech provides a checklist for engineers to easily check their schematics as well as several services for reviewing customer carrier board schematics. These services aim to help identify design errors before implementation, which saves substantial development time and costs. ◼...
- Page 47 Advantech has been involved in the industrial computer industry for many years and found that customers usually have the following questions when implementing modular designs. General I/O Design Capability Although customers possess the ability for vertical integration and have sufficient knowledge and...
- Page 48 RISC COM. Design Stage When a product moves into the design stage, Advantech will supply a carrier board design guide for reference. The carrier board design guide provides pin definitions of the COM connector with limitations and recommendations for carrier board design.
-
Page 49: Contact Information
RISC platforms. Advantech plays a supportive role in helping customers solve problems during the testing and verification process and will provide suggestions and tips as well. -
Page 50: Global Service Policy
080-363-9495 Taiwan (toll free) 0800-777-111 Russia (toll free) 8-800-555-01-50 Alternatively, you can contact the Advantech service team via our website. http://www.advantech.com.tw/contact/default.aspx?page=contact_form2&subject=Technical+S upport Our technical support engineers will provide a quick response to your queries. Global Service Policy 4.3.1 Warranty Policy The warranty policy for Advantech products is provided below. -
Page 51: Repair Process
For products that are not DOA, the return fee to an authorized Advantech repair facility will be at the customer’s expense. The shipping fee for reconstructed products from Advantech back to the customer will be at Advantech’s expense. - Page 52 CPU, DRAM, and CF card. If you send all these parts back (because you believe they may be part of the prob- lem), please clearly state that they are included. Otherwise, Advantech will not be responsible for any items not listed. Ensure that the Problem Description is enclosed.
- Page 53 Service Department and mark the pack- age “Attn. RMA Service Department”. All products must be returned in properly packed ESD material or anti-static bags. Advantech reserves the right to return unrepaired items at the customer's cost if inap- propriately packed.
- Page 54 The product is sent for updates, upgrades, or tests at the request of the cus- tomer who is without warranty. If a product has been repaired by Advantech, and within three months after such a repair the product requires another repair for the same problem, Advantech will con- duct the repair free of charge.
- Page 55 Advantech will retain custody of a product submitted for repair for one month while waiting for the return of a signed P/I or payment (A/R). If the customer fails to respond within this period, Advantech will close the case automatically. Advantech will take reasonable measures to contact Shipping Back to Customer The forwarding company for RMA returns from Advantech to customers is selected by Advantech.
