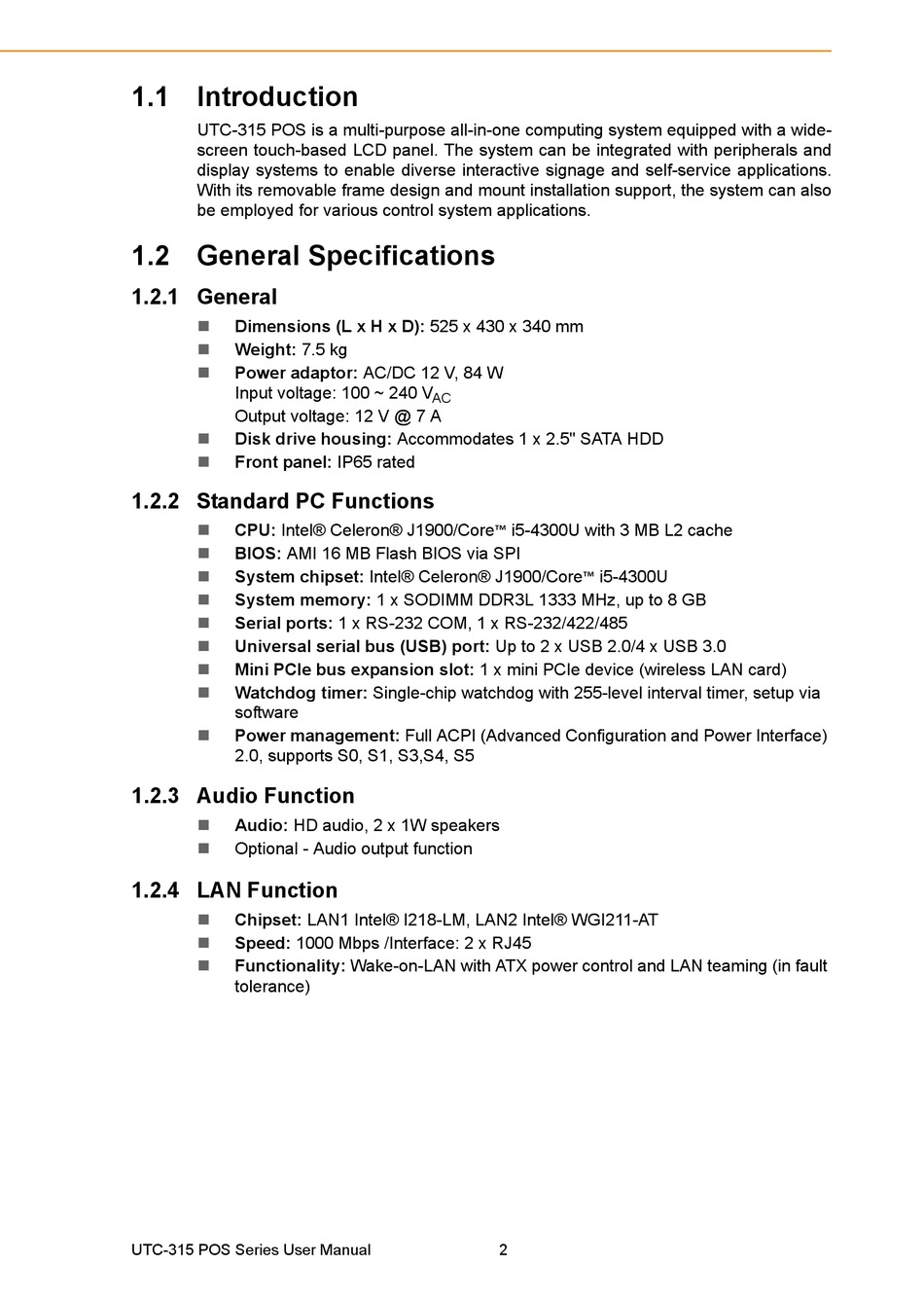

1.1 Introduction

UTC-315 POS is a multi-purpose all-in-one computing system equipped with a wide-
screen touch-based LCD panel. The system can be integrated with peripherals and
display systems to enable diverse interactive signage and self-service applications.
With its removable frame design and mount installation support, the system can also
be employed for various control system applications.

1.2 General Specifications

1.2.1 General

 Dimensions (L x H x D): 525 x 430 x 340 mm
 Weight: 7.5 kg
 Power adaptor: AC/DC 12 V, 84 W
Input voltage: 100 ~ 240 V
Output voltage: 12 V @ 7 A
 Disk drive housing: Accommodates 1 x 2.5" SATA HDD
 Front panel: IP65 rated

1.2.2 Standard PC Functions

 CPU: Intel® Celeron® J1900/Core™ i5-4300U with 3 MB L2 cache
 BIOS: AMI 16 MB Flash BIOS via SPI
 System chipset: Intel® Celeron® J1900/Core™ i5-4300U
 System memory: 1 x SODIMM DDR3L 1333 MHz, up to 8 GB
 Serial ports: 1 x RS-232 COM, 1 x RS-232/422/485
 Universal serial bus (USB) port: Up to 2 x USB 2.0/4 x USB 3.0
 Mini PCIe bus expansion slot: 1 x mini PCIe device (wireless LAN card)
Watchdog timer: Single-chip watchdog with 255-level interval timer, setup via

software
 Power management: Full ACPI (Advanced Configuration and Power Interface)
2.0, supports S0, S1, S3,S4, S5

1.2.3 Audio Function

 Audio: HD audio, 2 x 1W speakers
 Optional - Audio output function

1.2.4 LAN Function

 Chipset: LAN1 Intel® I218-LM, LAN2 Intel® WGI211-AT
 Speed: 1000 Mbps /Interface: 2 x RJ45
 Functionality: Wake-on-LAN with ATX power control and LAN teaming (in fault
tolerance)
