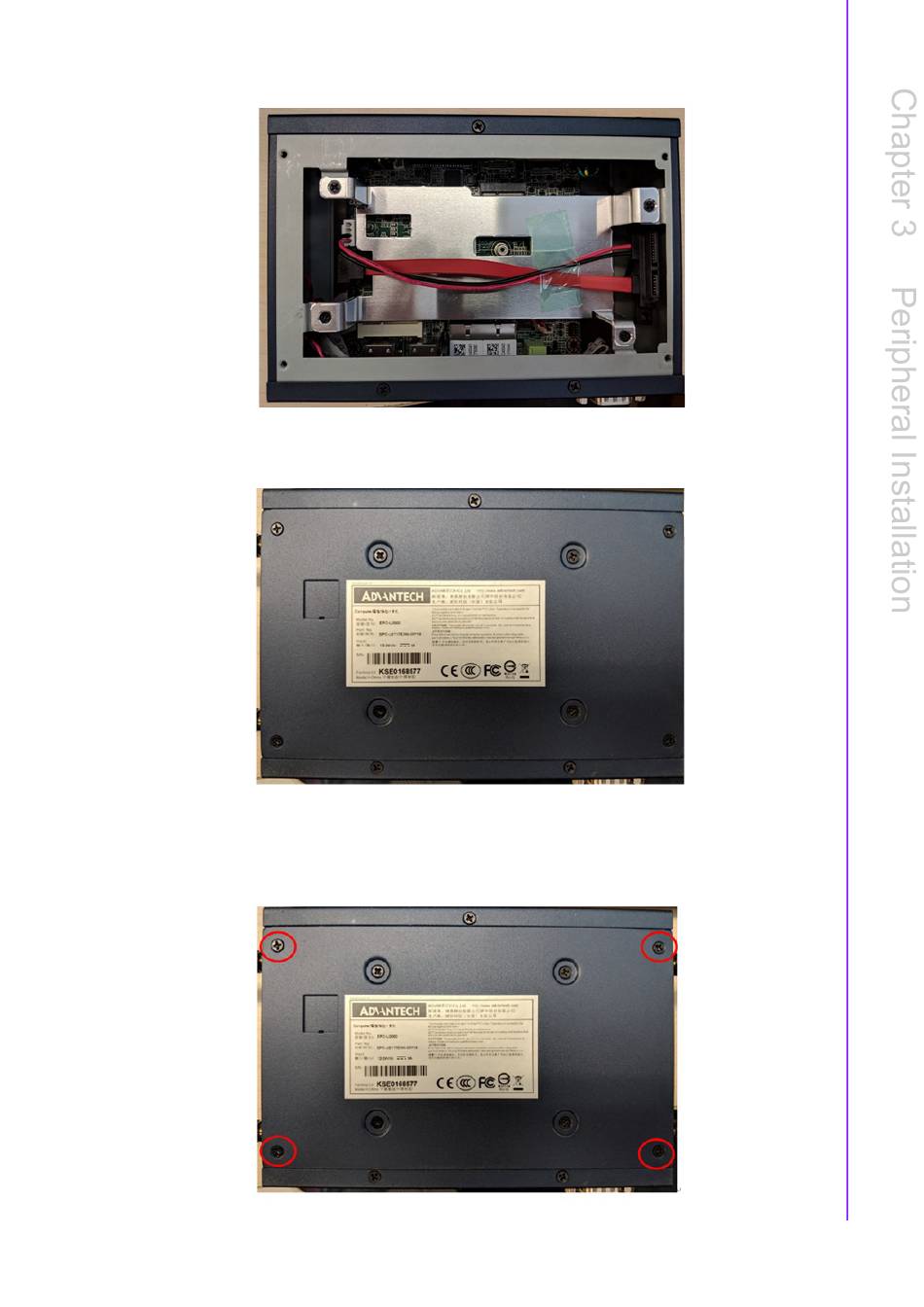

4.
Secure the bottom cover in its original position.
3.2
Mini PCIe Module Installation
1.
Unscrew the bottom cover screws.
27
EPC-U2117 User Manual
