For ccTlak (option):
Pin Signal
1 NC
3 NC
5 Data
7 NC
9 GND
2.2.26

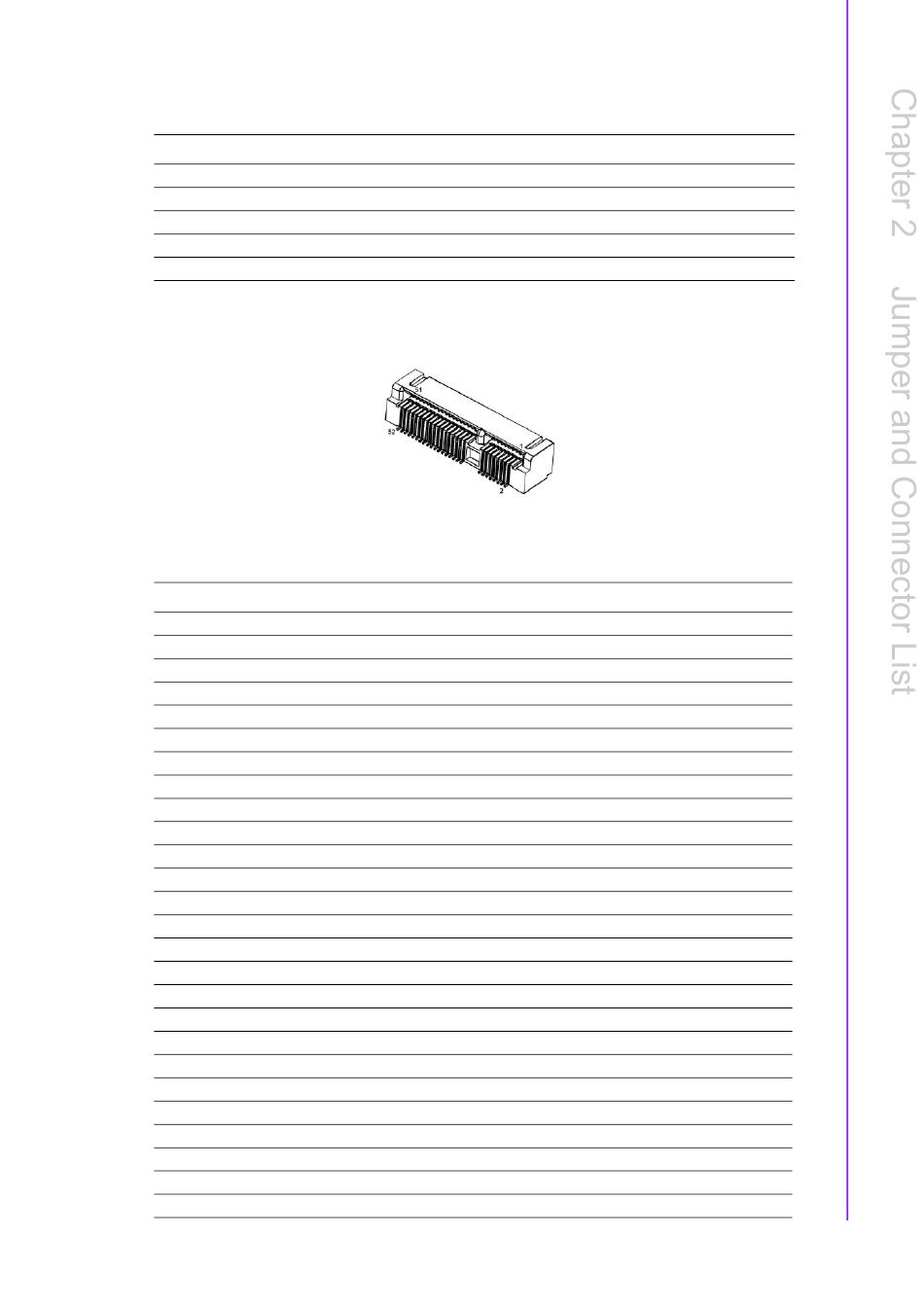

MINIPCIE and mSATA connector (MINI-PCIE1)

MINIPCIE:
Pin Signal
1 WAKE#
3 Reserved
5 Reserved
7 CLKREQ#
9 GND
11 REFCLK-
13 REFCLK+
15 GND
17 Reserved
19 Reserved
21 DETECT#
23 PCIE_RX+
25 PCIE_RX-
27 GND
29 GND
31 PCIE_TX-
33 PCIE_TX+
35 GND
37 GND
39 +3.3Vaux
41 +3.3Vaux
43 V1.2_DETECT#
45 Reserved
47 Reserved
49 Reserved
51 MSATA_DETECT#
Pin Signal
2 NC
4 NC
6 NC
8 NC
10 NC
Pin Signal
2 +3.3Vaux
4 GND
6 +1.5V
8 Reserved
10 Reserved
12 Reserved
14 Reserved
16 Reserved
18 GND
20 DISABLE#
22 RESET#
24 +3.3Vaux
26 GND
28 +1.5V
30 SMB_CLK
32 SMB_DATA
34 GND
36 USB_D-
38 USB_D+
40 GND
42 Reserved
44 LED_WLAN#
46 Reserved
48 +1.5V
50 GND
52 +3.3Vaux
19 EPC-U2117 User Manual
