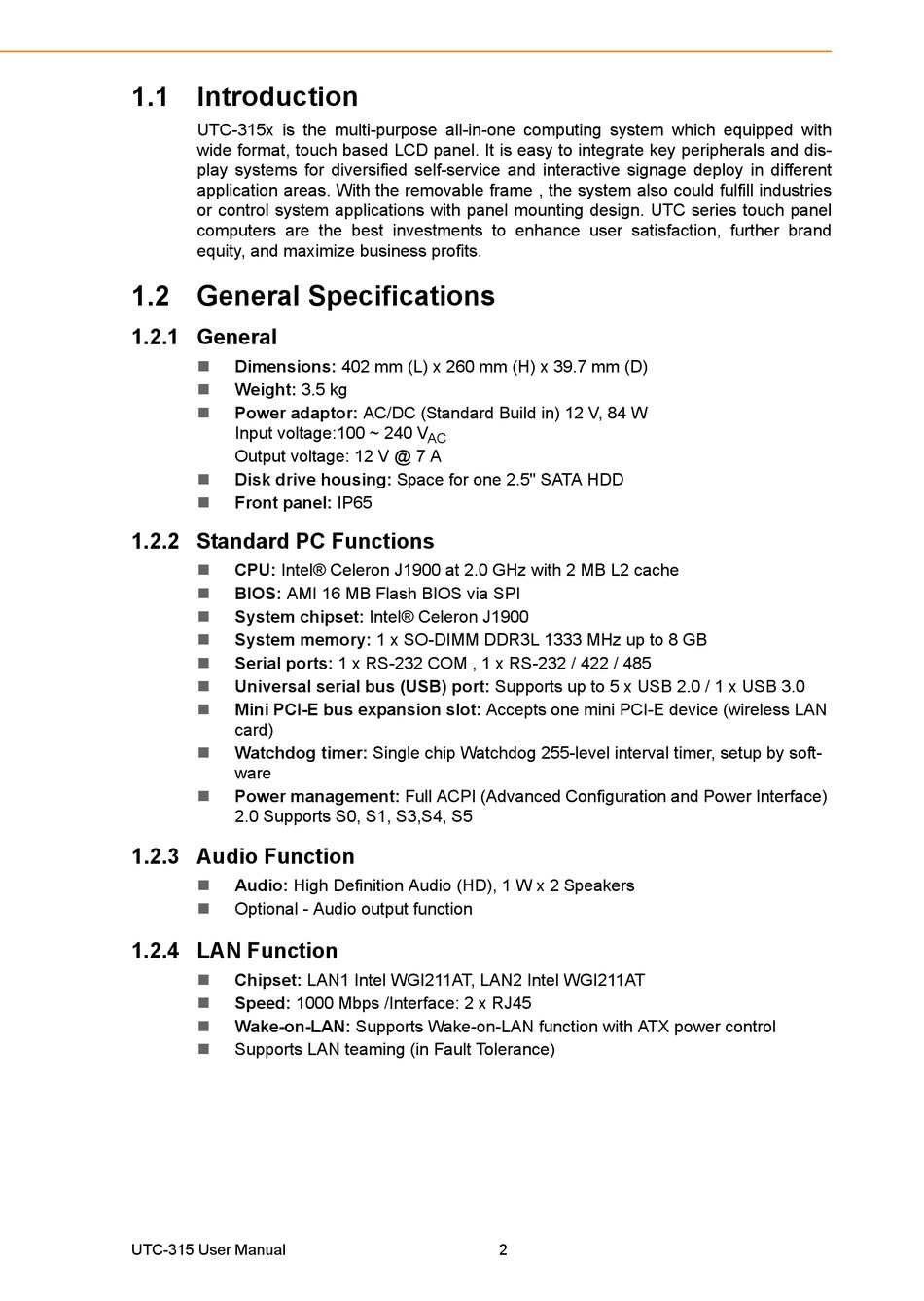

1.1 Introduction

UTC-315x is the multi-purpose all-in-one computing system which equipped with
wide format, touch based LCD panel. It is easy to integrate key peripherals and dis-
play systems for diversified self-service and interactive signage deploy in different
application areas. With the removable frame , the system also could fulfill industries
or control system applications with panel mounting design. UTC series touch panel
computers are the best investments to enhance user satisfaction, further brand
equity, and maximize business profits.

1.2 General Specifications

1.2.1 General

 Dimensions: 402 mm (L) x 260 mm (H) x 39.7 mm (D)
 Weight: 3.5 kg
Power adaptor: AC/DC (Standard Build in) 12 V, 84 W

Input voltage:100 ~ 240 V
Output voltage: 12 V @ 7 A
 Disk drive housing: Space for one 2.5" SATA HDD
 Front panel: IP65

1.2.2 Standard PC Functions

 CPU: Intel® Celeron J1900 at 2.0 GHz with 2 MB L2 cache
 BIOS: AMI 16 MB Flash BIOS via SPI
 System chipset: Intel® Celeron J1900
 System memory: 1 x SO-DIMM DDR3L 1333 MHz up to 8 GB
 Serial ports: 1 x RS-232 COM , 1 x RS-232 / 422 / 485
 Universal serial bus (USB) port: Supports up to 5 x USB 2.0 / 1 x USB 3.0
 Mini PCI-E bus expansion slot: Accepts one mini PCI-E device (wireless LAN
card)
 Watchdog timer: Single chip Watchdog 255-level interval timer, setup by soft-
ware
Power management: Full ACPI (Advanced Configuration and Power Interface)

2.0 Supports S0, S1, S3,S4, S5

1.2.3 Audio Function

 Audio: High Definition Audio (HD), 1 W x 2 Speakers
 Optional - Audio output function

1.2.4 LAN Function

Chipset: LAN1 Intel WGI211AT, LAN2 Intel WGI211AT

Speed: 1000 Mbps /Interface: 2 x RJ45

 Wake-on-LAN: Supports Wake-on-LAN function with ATX power control
 Supports LAN teaming (in Fault Tolerance)
