Summary of Contents for Advantech ECU-4674 Series
- Page 1 User Manual ECU-4674 Series ® Intel ATOM E3930 Power and Energy Computers with 8 x LAN, 10 x COM, 1 x IRIG...
- Page 2 No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.
- Page 3 Product Warranty (2 years) Advantech warrants the original purchaser that each of its products will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products that have been repaired or altered by persons other than repair personnel authorized by Advantech, or products that have been subject to misuse, abuse, accident, or improper installation.
- Page 4 3.5 mm screw. The equipment does not include a power cord and plug. DISCLAIMER: These instructions are provided according to IEC 704-1 standards. Advantech disclaims all responsibility for the accuracy of any statements contained herein. ECU-4674 User Manual...
- Page 5 Safety Precautions - Static Electricity Follow these simple precautions to protect yourself from harm and the products from damage. To avoid electrical shock, always disconnect the power from the PC chassis before manual handling. Do not touch any components on the CPU card or other cards while the PC is powered on.
- Page 6 ECU-4674 User Manual...
-
Page 7: Table Of Contents
Contents Chapter Overview..........1 Introduction ....................2 Hardware Specifications ................3 1.2.1 General ..................3 1.2.2 System Hardware ................. 3 1.2.3 I/O Interface .................. 3 1.2.4 Environment.................. 3 Safety Precautions ..................4 Chassis Dimensions.................. 4 Figure 1.1 ECU-4674 Chassis Dimensions ......... 4 Packing List.................... - Page 8 ECU-4674 User Manual viii...
-
Page 9: Chapter 1 Overview
Chapter Overview This chapter provides an overview of ECU-4674 Series’ specifica- tions. Sections include: Introduction Hardware Specifications Safety Precautions Chassis Dimensions Packing List... -
Page 10: Introduction

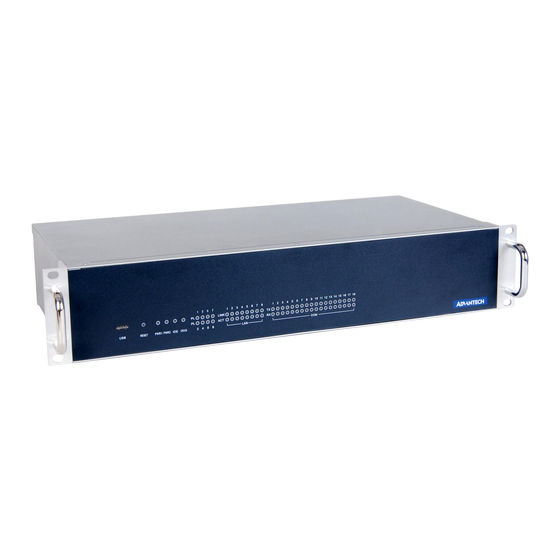

ECU-4674 is Intel Atom E3930 1.3 GHz Power & Energy Automation Computer with 8 x LAN, 10 x COM and 1 x IRIG. ECU-4674 series products is compliant with Elec- tricity Certificate IV level (especially for China), which provide higher reliability and stability, suitable for any Global Power &... -
Page 11: Hardware Specifications
Hardware Specifications 1.2.1 General Certification: CE, FCC Class A, CCC, Electricity IV level for China (Compatible IEC61850-3, IEEE 1613) Dimensions (W x D x H): 440 x 220 x 88 mm Enclosure: SECC & Aluminum Mounting: 2U Rack mount ... -
Page 12: Safety Precautions
Caution! Always ground yourself to remove any static electric charge before touching ECU-4674 Series Modern electronic devices are very sensitive to static electric charges. Use a grounding wrist strap at all times. Place all electronic components on a static-dissipative surface or in a static- shielded bag. -
Page 13: Packing List
Packing List The accessory package of ECU-4674 Series contains the following items: ECU-4674-LA64SCE accessory: (A) ECU-4674-LA64SCE (B) 4 x 10PIN green screw terminals (C) 20 x 2P 2.0mm jumper shorter (D) 1 x 4PIN green screw terminals (E) 1 x cable for dual power module... - Page 14 ECU-4674 User Manual...
-
Page 15: Chapter 2 Hardware Function
Chapter Hardware Function This chapter shows how to setup the ECU-4674 hardware functions, including connecting peripherals, setting jumpers and indicators. Sections include: Overview LED Indicators Interface Definitions Power Input... -
Page 16: Overview
Overview The following figures show the indicators and connectors on ECU-4674 Series. The following sections give you detailed information about function of each peripheral. Figure 2.1 ECU-4674-LA64SCE Front Panel Figure 2.2 ECU-4674-LA64SCE Rear Panel Figure 2.3 ECU-4674-LA64DCE Rear Panel ECU-4674 User Manual... -
Page 17: Led Indicators
LED Indicators The LEDs in the front panel can be divided into 3 groups. 2.2.1 System Status Indicators Table 2.1: Definition of System Status Indicators Item Status Description Green System power1 is on PWR1 System power1 is off Green System power2 is on PWR2 System power2 is off Green... -
Page 18: Power Input
(Port 1~10) No data being transmitted Power Input ECU-4674 Series product support single power input AC or DC, It is reserved for dual power supply input interface, to facilitate customer to extend using dual power speci- fications. Table 2.4: AC/DC power input... -
Page 19: Jumper Setup
Jumper Setup Note! SATA2 is only for data storage not for OS. IRIG-B setting CN30 IRIG-B 1-2 Pin CN25 11-20 Pin ECU-4674 User Manual... - Page 20 COM8 setting CN30 2-3 Pin RS-232/RS-485 CN25 1-10 Pin IRIG-B Pin define IRIG-B COM8 Pins Serial port COM9-COM10 mode selection. RS-232 CN10, CN13 RS-422/RS-485 ECU-4674 User Manual...
- Page 21 COM1-10 RS-485/RS-232 terminal resistance setup instructions. Add 120 ohm terminal resistor on TX+/TX- of RS-485 CN12, CN14, CN16, CN18, Add 300 ohm terminal resistor on TX+/TX- of RS-485 CN20, CN22, CN24, CN26, CN28, CN31 Add 120 ohm terminal resistor on RX+/RX- of RS-422 (optional) Add 300 ohm terminal resistor on Rx+/RX- of RS-422 (optional) COM Port Jumper for Terminal Resistor...
- Page 22 Clear CMOS. Normal work (Default) Clear CMOS ECU-4674 User Manual...
-
Page 23: Chapter 3 Initial Setup
Chapter Initial Setup Sections include: Configuration Installing a mSATA card Installing Hard Disk... -
Page 24: Configuration
Configuration To open the ECU-4674 product chassis, remove all power and signal connections. And unscrew screws on the chassis’s top cover. Installing a m-SATA Card The ECU-4674 provides 1 m-SATA Card slot. To install the cards, open the product chassis and insert the card at location shown below ECU-4674 User Manual... -
Page 25: Installing A Hard Disk
To install a HDD on the included HDD bracket (found in the accessory box) Unscrew the two screws and remove the HDD blanking plate. According to the drawing below, the HDD is directly installed on the device through the DIN-Rails (ECU-4674 Series product supports up to 2xHDD). ECU-4674 User Manual... - Page 26 ECU-4674 User Manual...
-
Page 27: Appendix A Pin Assignments
Appendix Pin Assignments... -
Page 28: Rs-232 Serial Ports (Com9 ~ Com10)
RS-232 Serial Ports (COM9 ~ COM10) Table A.1: RS-232 Port Pin Definitions (COM9 ~ COM10) Pins RS-232 RS-232/485 Serial Ports (COM1 ~ COM8) Table A.2: RS-232/485 Serial Ports (COM1 ~ COM8) RS-232 RS-485 Pins Name Pins Name — — — Data+ —... -
Page 29: Vga
Table A.3: VGA Pins Signal Pins Signal + 5V Green Blue DDC-DATA H-SYNC V-SYNC DDC-CLK ECU-4674 User Manual... -
Page 30: Dvi-I
DVI-I Table A.4: DVI Signal TMDS_C2# TMDS_C2 CRT_DDC_CLK CRT_DDC_DATA MDVI_CLK MDVI_DATA VGAVSY TMDS_C1# TMDS_C1 VCC_DVI VGA Detect HP_DET TMDS_C0# TMDS_C0 TMDS_CK# TMDS_CK VGAR VGAG VGAB VGAHSY ECU-4674 User Manual... -
Page 31: Usb
Table A.5: USB 2.0 Pins Signal +V5 (VCC) USB DATA- USB DATA+ Power Loss Alarm Table A.6: Power Loss Alarm Wiring Pin Definition Pins Function Description 1-2 PWR1 FAIL Connected 3-4 PWR2 FAIL Connected ECU-4674 User Manual... - Page 32 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2021...
