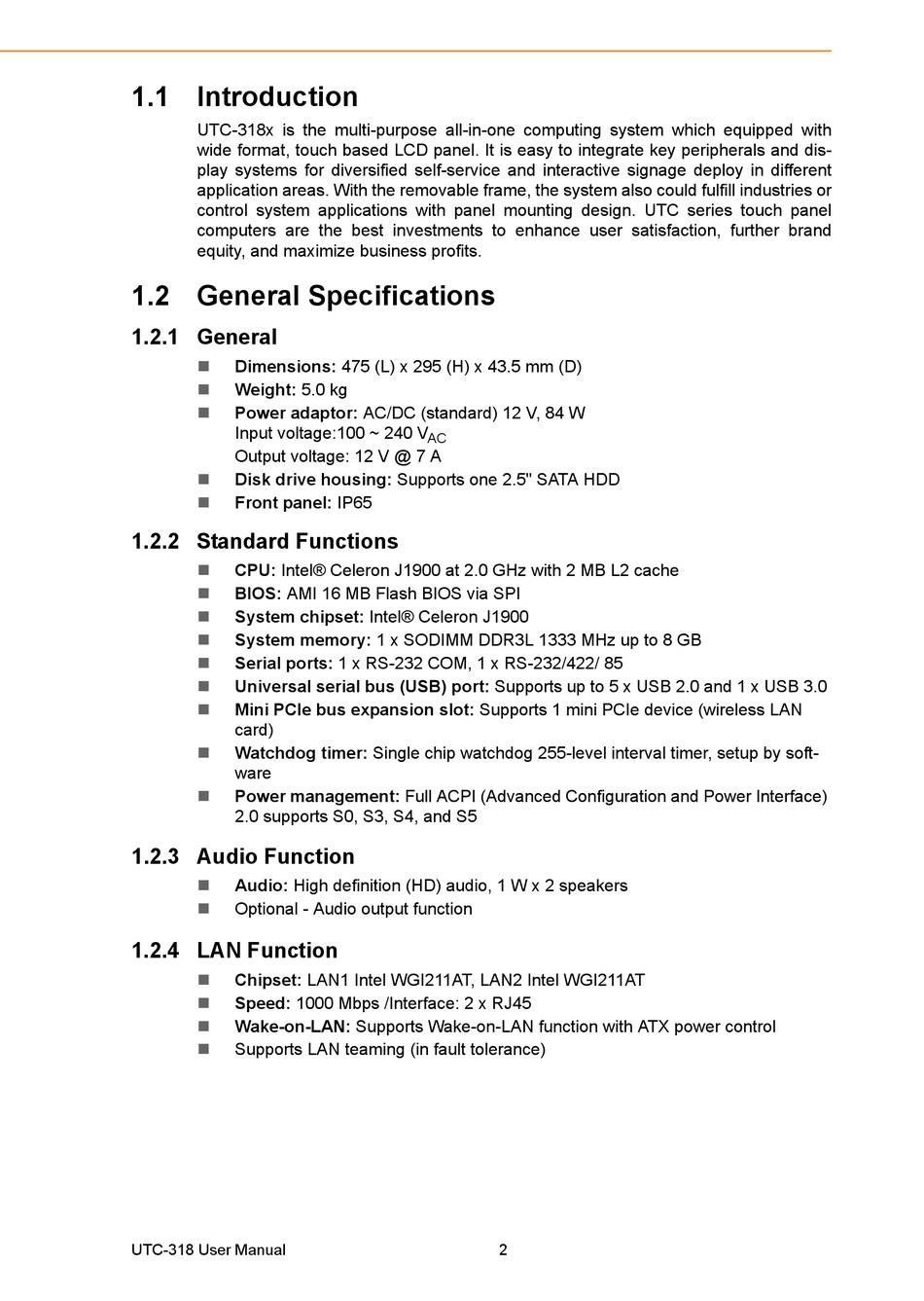

1.1 Introduction

UTC-318x is the multi-purpose all-in-one computing system which equipped with
wide format, touch based LCD panel. It is easy to integrate key peripherals and dis-
play systems for diversified self-service and interactive signage deploy in different
application areas. With the removable frame, the system also could fulfill industries or
control system applications with panel mounting design. UTC series touch panel
computers are the best investments to enhance user satisfaction, further brand
equity, and maximize business profits.

1.2 General Specifications

1.2.1 General

 Dimensions: 475 (L) x 295 (H) x 43.5 mm (D)
 Weight: 5.0 kg
Power adaptor: AC/DC (standard) 12 V, 84 W

Input voltage:100 ~ 240 V
Output voltage: 12 V @ 7 A
 Disk drive housing: Supports one 2.5" SATA HDD
 Front panel: IP65

1.2.2 Standard Functions

 CPU: Intel® Celeron J1900 at 2.0 GHz with 2 MB L2 cache
 BIOS: AMI 16 MB Flash BIOS via SPI
 System chipset: Intel® Celeron J1900
 System memory: 1 x SODIMM DDR3L 1333 MHz up to 8 GB
 Serial ports: 1 x RS-232 COM, 1 x RS-232/422/ 85
 Universal serial bus (USB) port: Supports up to 5 x USB 2.0 and 1 x USB 3.0
 Mini PCIe bus expansion slot: Supports 1 mini PCIe device (wireless LAN
card)
 Watchdog timer: Single chip watchdog 255-level interval timer, setup by soft-
ware
Power management: Full ACPI (Advanced Configuration and Power Interface)

2.0 supports S0, S3, S4, and S5

1.2.3 Audio Function

 Audio: High definition (HD) audio, 1 W x 2 speakers
 Optional - Audio output function

1.2.4 LAN Function

Chipset: LAN1 Intel WGI211AT, LAN2 Intel WGI211AT

Speed: 1000 Mbps /Interface: 2 x RJ45

 Wake-on-LAN: Supports Wake-on-LAN function with ATX power control
 Supports LAN teaming (in fault tolerance)
