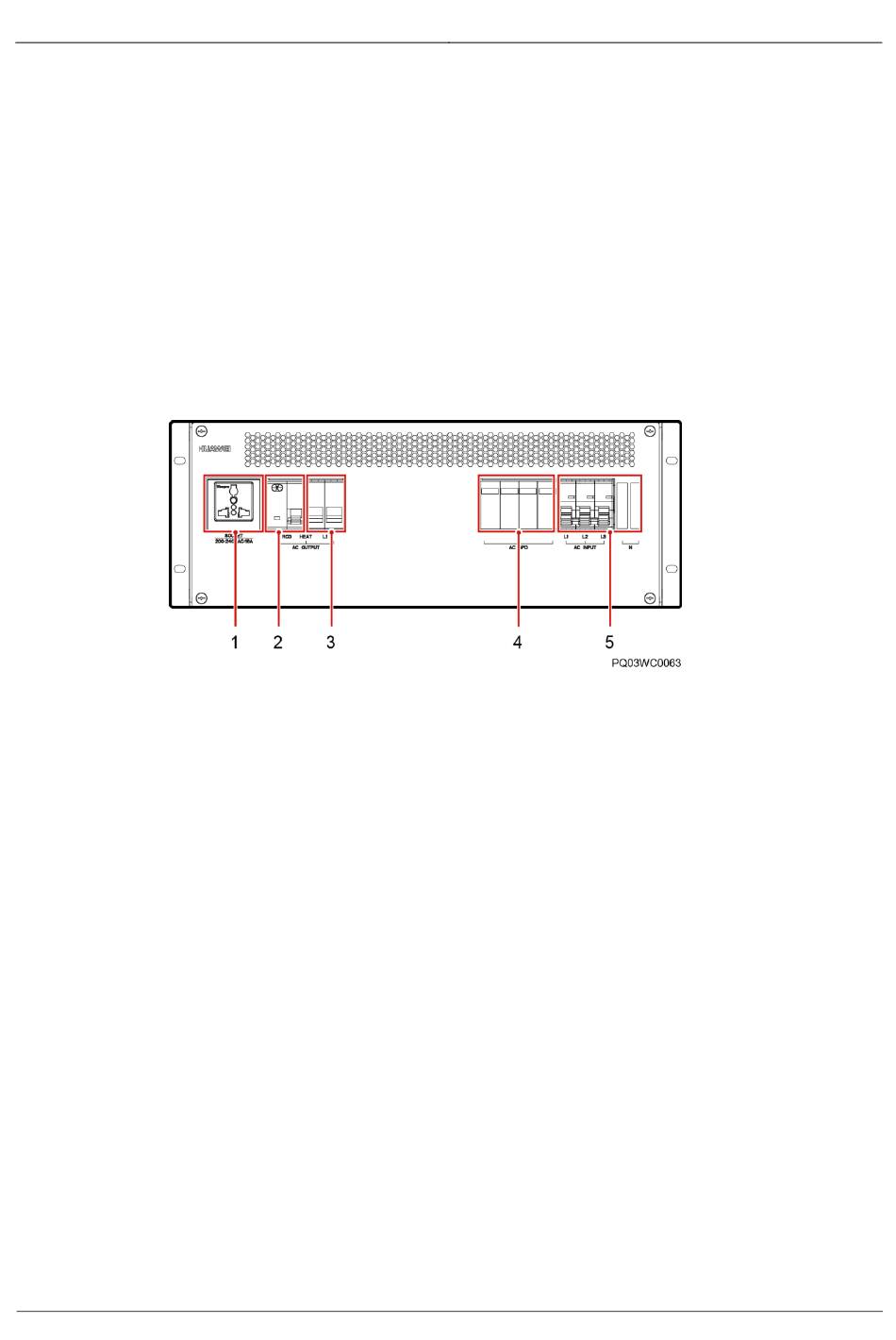

Figure 3-2 TP48200A-DT19D1 AC PDU
(1) All-purpose maintenance
socket
(4) AC surge protective
device (SPD)

3.2 Rectifier

Rectifiers convert AC input into stable DC output.
Issue 03 (2019-11-15)
(11) Heater
(14) Battery low voltage disconnection
(BLVD) circuit breakers
(17) RTN+ busbar
(20) Cable holes
(2) Residual current device
(RCD)
(5) AC input circuit breaker
and terminal
Copyright © Huawei Technologies Co., Ltd.
3 Components
(12) TCUA circuit
breaker
(15) UIM02C
(18) Space for
installing customer
equipment
(3) AC output circuit
breakers
