Replacing A Battery Temperature Sensor - Huawei TP48200A-DT19D1 Telecom Power User Manual

TP48200A-DT19D1 Telecom Power
User Manual

4.4.11 Replacing a Battery Temperature Sensor

Prerequisites


Procedure
Step 1 Connect the ground cable to the ESD wrist strap, and put on the ESD wrist strap and ESD
gloves.
Step 2 Remove the battery temperature sensor cable from the UIM, as shown in Figure 4-22.

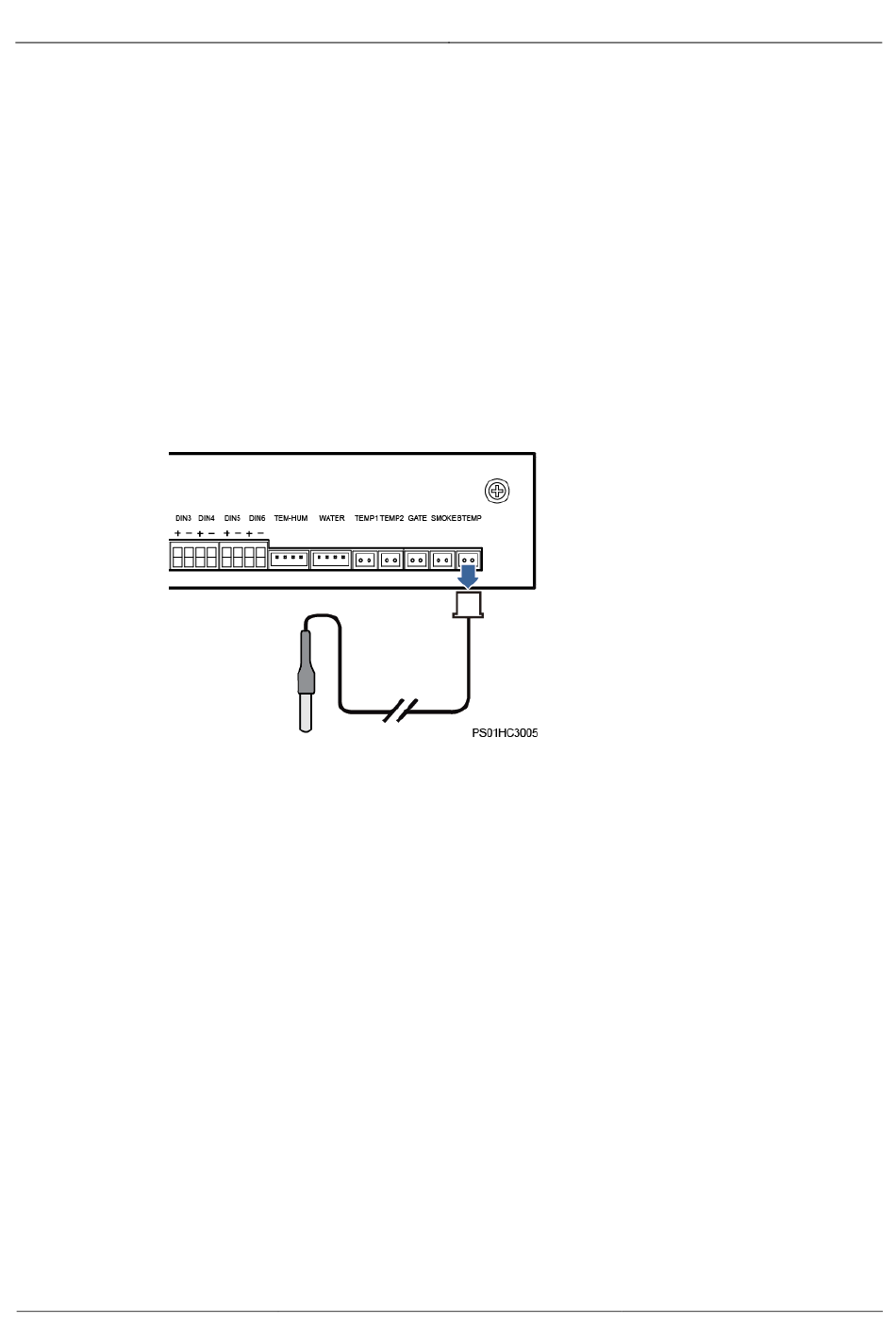

Figure 4-22 Removing the battery temperature sensor cable
Step 3 Cut off the cable tie of the battery temperature sensor and remove the sensor.
Issue 03 (2019-11-15)
You have obtained an ESD wrist strap, a pair of ESD gloves, an ESD box or bag, the
cabinet door key, and tools.
The new battery temperature sensor is intact.
Copyright © Huawei Technologies Co., Ltd.
4 Maintenance
73
