Replacing A Temperature Sensor For The Equipment Compartment - Huawei TP48200A-DT19D1 Telecom Power User Manual

TP48200A-DT19D1 Telecom Power
User Manual

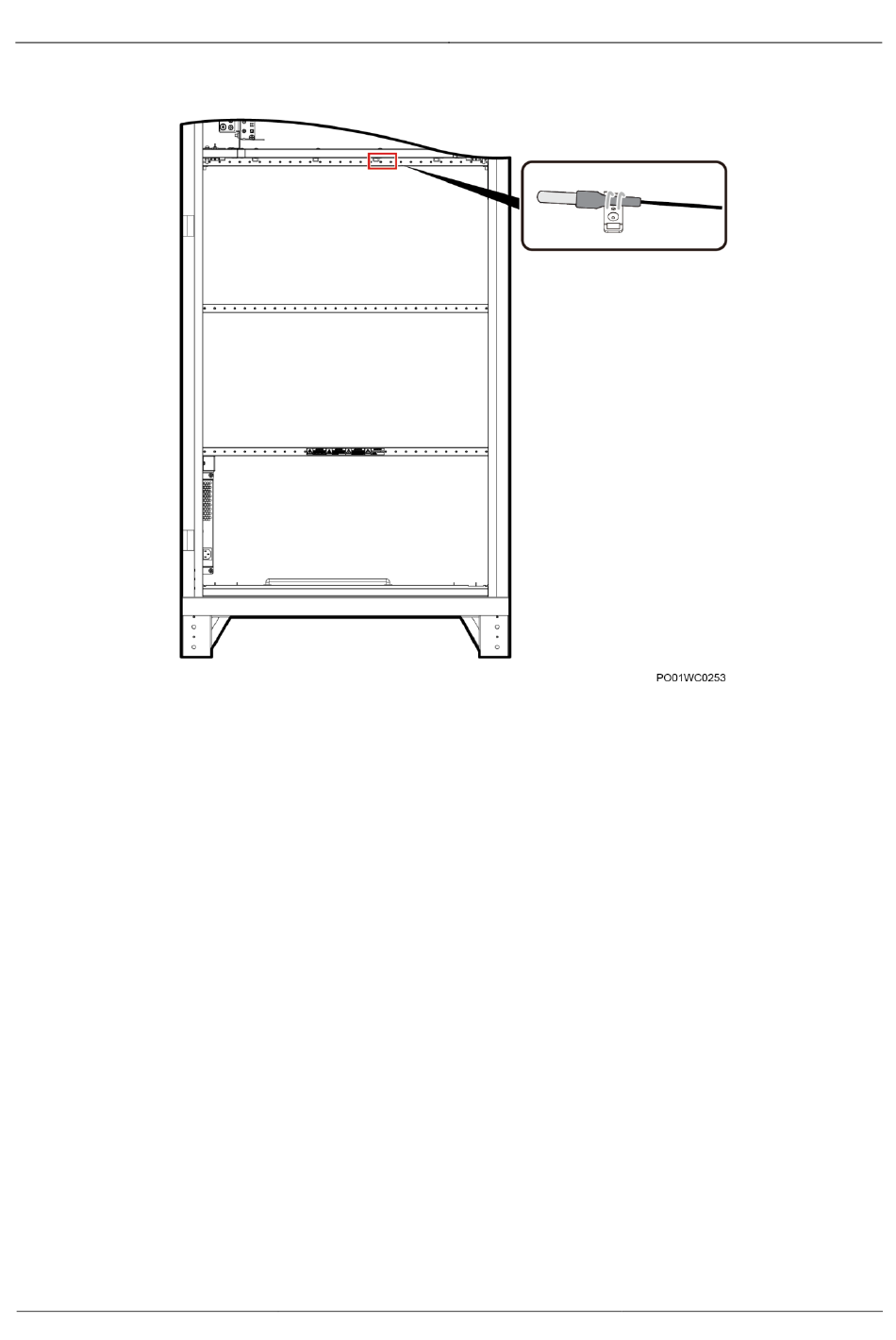

Figure 4-23 Position of the battery temperature sensor
Step 4 Properly place the new battery temperature sensor and bind it securely with a cable tie.
Step 5 Reconnect the battery temperature sensor cable to the UIM.
Step 6 Disconnect the ground cable from the ESD wrist strap, and take off the ESD wrist strap and
ESD gloves.
----End
4.4.12 Replacing a Temperature Sensor for the Equipment
Compartment
Prerequisites


Procedure
Step 1 Connect the ground cable to the ESD wrist strap, and put on the ESD wrist strap and ESD
gloves.
Issue 03 (2019-11-15)
Prepare an ESD wrist strap, a pair of ESD gloves, an ESD box or bag, the cabinet door
key, and tools.
Check that the new temperature sensor is intact.
Copyright © Huawei Technologies Co., Ltd.
4 Maintenance
74
