3.3 SMU02B

Panel

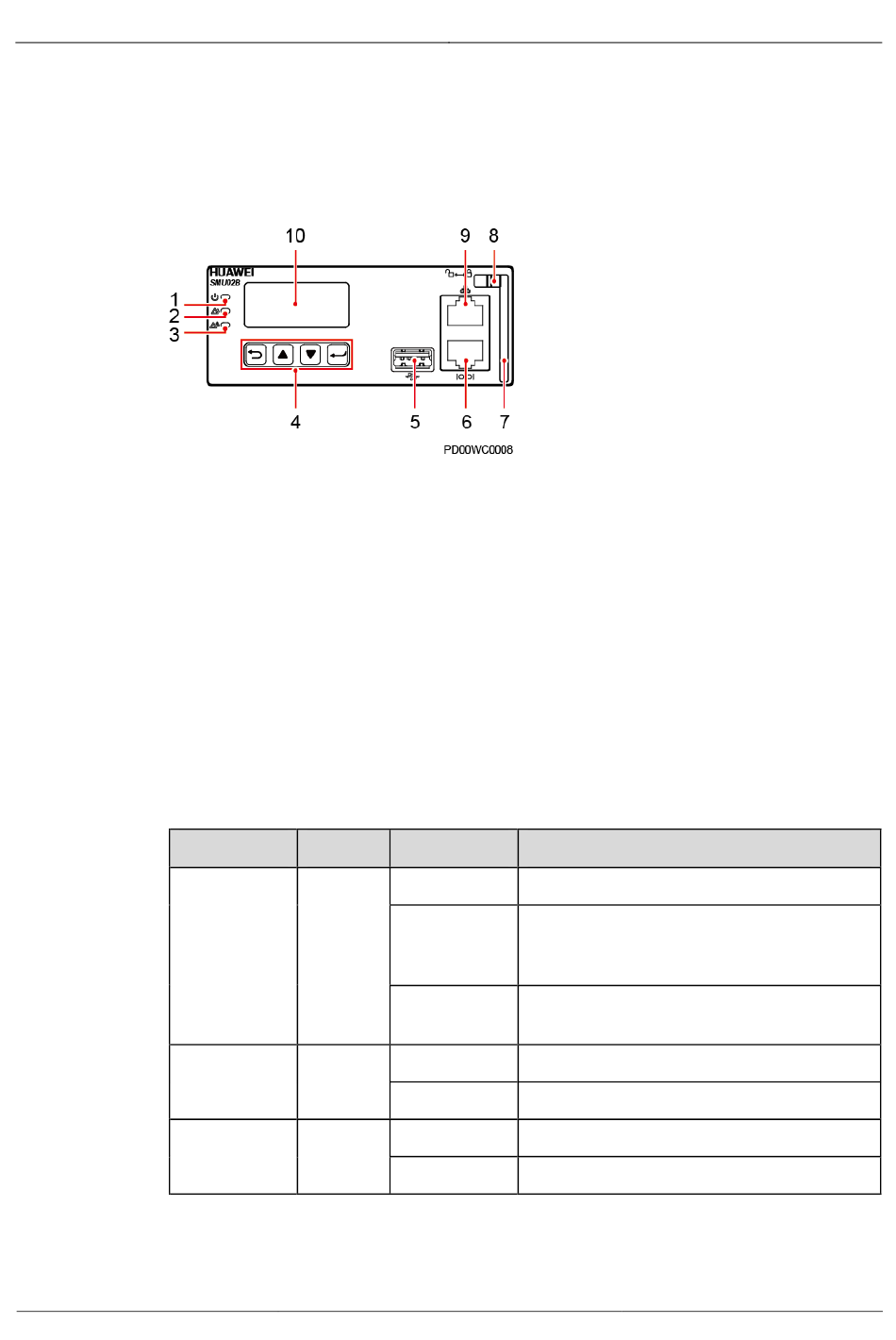

Figure 3-4 SMU02B panel
(1) Run
indicator
(4) Buttons
(7) Handle
(10) LCD
Indicators
Table 3-2 Indicator description
Name
Run indicator
Minor alarm
indicator
Major alarm
indicator
Issue 03 (2019-11-15)
(2) Minor alarm indicator
(5) USB port (protected by a security
mechanism)
(8) Locking latch
Color Status
Green Off
Blinking
slowly (0.5
Hz)
Blinking fast
(4 Hz)
Yellow Off
Steady on
Red Off
Steady on
Copyright © Huawei Technologies Co., Ltd.
(3) Major alarm
indicator
(6) RS485/RS232 port
(9) Fast Ethernet (FE)
port
Description
The SMU is faulty or has no DC input.
The SMU is running properly and
communicating with the host properly.
The SMU is running properly but fails to
communicate with the host properly.
No minor or warning alarm is generated.
A minor or warning alarm is generated.
No critical or major alarm is generated.
A critical or major alarm is generated.
