8 | Hardware Installation and Maintenance Guide for SG5700 Appliances

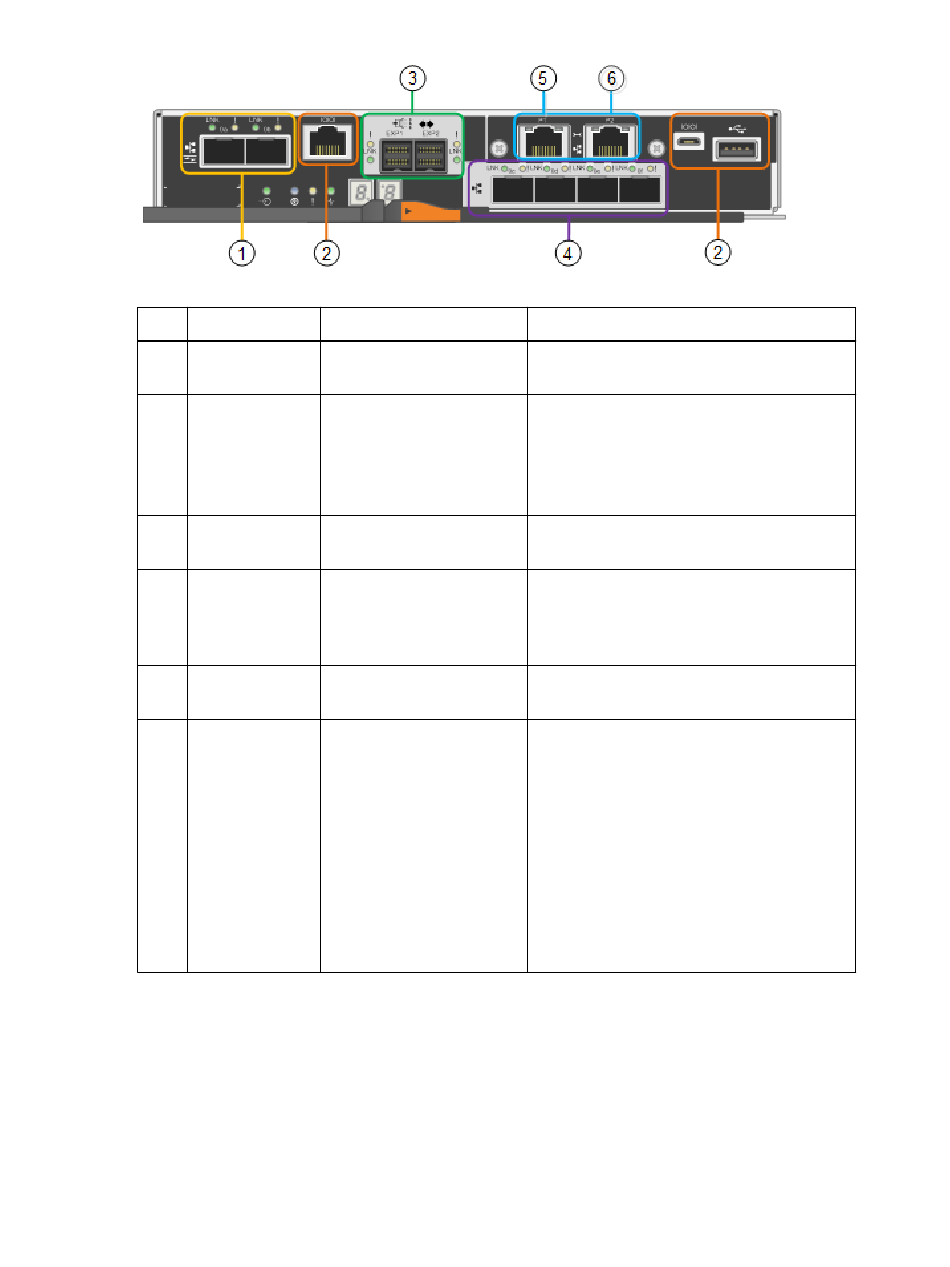

Port
1 Interconnect
ports 1 and 2
2 Diagnostic and
support ports
3 Drive expansion
ports
4 Network ports
1-4
5 Management
port 1
6 Management
port 2
E2800 controller
• Operates as the storage controller for the appliance.
• Manages the storage of data on the drives.
• Functions as a standard E-Series controller in simplex mode.
• Includes SANtricity OS Software (controller firmware).
• Includes SANtricity System Manager for monitoring appliance hardware and for managing alerts,
the AutoSupport feature, and the Drive Security feature.
• Connects to the E5700SG controller and operates as the target.
Type
16Gb/s Fibre Channel
(FC), optical SFP+
• RJ-45 serial port
• Micro USB serial port
• USB port
12Gb/s SAS
10-GbE or 25-GbE, based
on SFP transceiver type,
switch speed, and
configured link speed
1-Gb (RJ-45) Ethernet
1-Gb (RJ-45) Ethernet
Use
Connect the E5700SG controller to the
E2800 controller.
Reserved for technical support.
Not used. StorageGRID appliances do not
support expansion drive shelves.
Connect to the Grid Network and the Client
Network for StorageGRID.
Connect to the Admin Network for
StorageGRID.
Options:
• Bond with management port 1 for a
redundant connection to the Admin
Network for StorageGRID.
• Leave unwired and available for
temporary local access (IP 169.254.0.1).
• During installation, use port 2 for IP
configuration if DHCP-assigned IP
addresses are not available.
