66 | Hardware Installation and Maintenance Guide for SG5700 Appliances

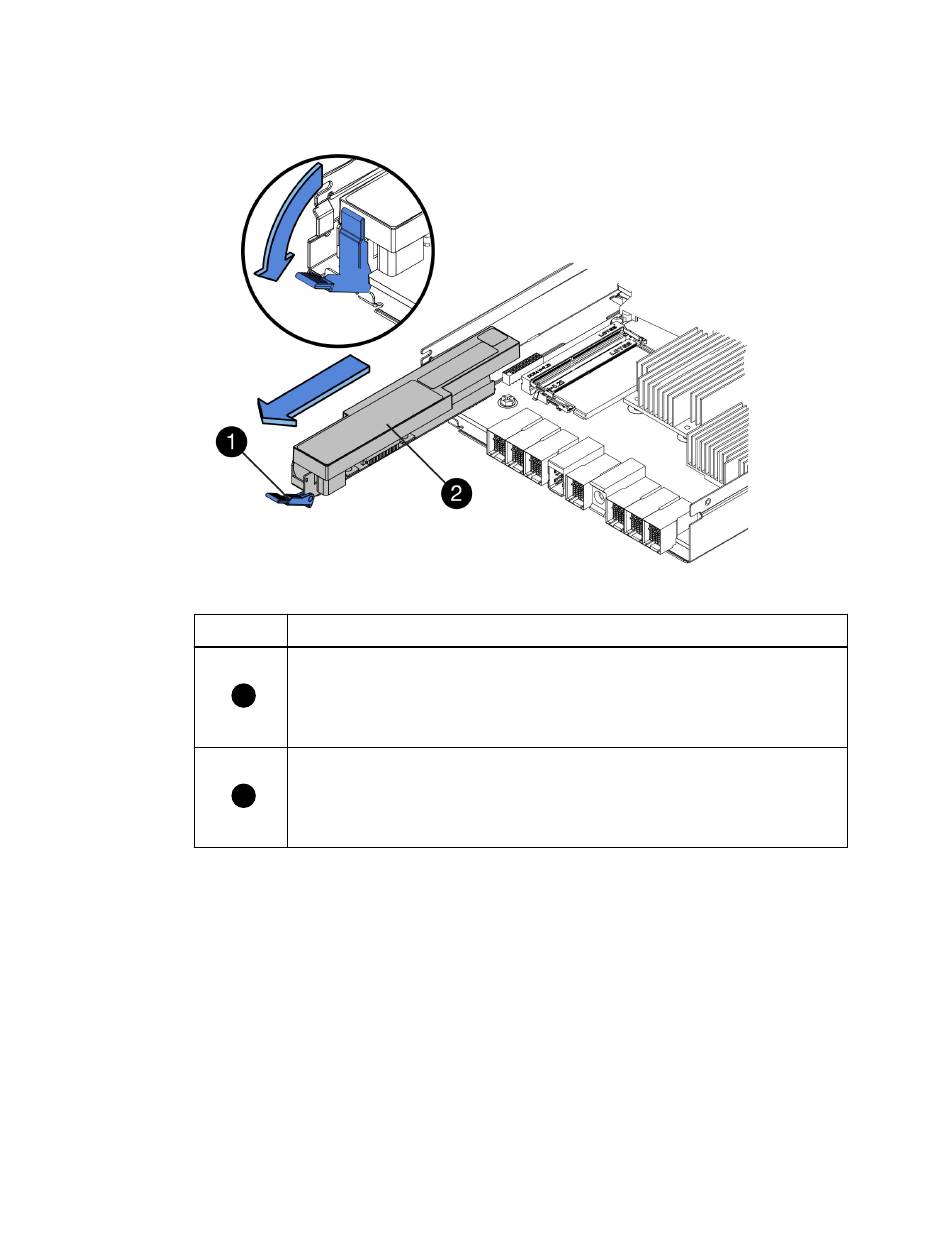

c. Unlatch the battery by pushing the release latch down and away from the controller.
Item
1
2
d. Lift up on the battery, and slide it out of the controller.
e. Remove the cover from the replacement controller.
f. Orient the replacement controller so that the slot for the battery faces toward you.
g. Insert the battery into the controller at a slight downward angle.
You must insert the metal flange at the front of the battery into the slot on the bottom of the
controller, and slide the top of the battery beneath the small alignment pin on the left side of
the controller.
h. Move the battery latch up to secure the battery.
When the latch clicks into place, the bottom of the latch hooks into a metal slot on the chassis.
i. Turn the controller over to confirm that the battery is installed correctly.
Attention:
be completely inserted into the slot on the controller (as shown in the first figure). If the
battery is not installed correctly (as shown in the second figure), the metal flange might
contact the controller board, causing damage.
Description
Battery release latch
Battery
Possible hardware damage – The metal flange at the front of the battery must
