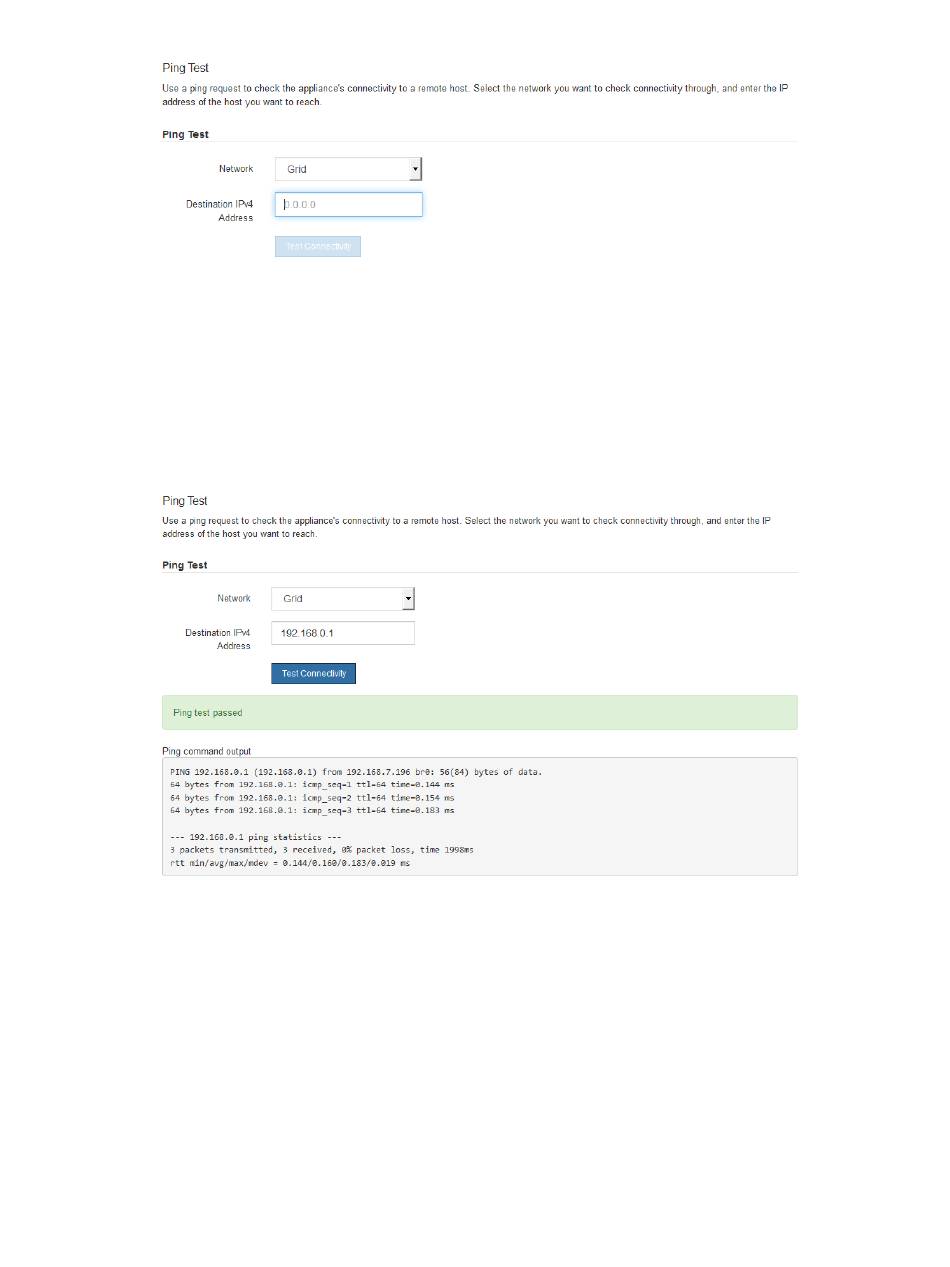

2. From the Network drop-down box, select the network you want to test: Grid, Admin, or Client.
3. Enter the IPv4 address for a host on that network.
For example, you might want to ping the gateway on the network or the primary Admin Node.
4. Click Test Connectivity.
If the network connection is valid, the "Ping test passed" message appears, with the ping
command output listed.

Verifying port-level network connections

To ensure that access between the StorageGRID Appliance Installer and other nodes is not obstructed
by firewalls, confirm that the StorageGRID Appliance Installer can connect to a specific TCP port or
set of ports at the specified IP address or range of addresses.
Steps
1. From the menu bar of the StorageGRID Appliance Installer, click Configure Networking > Port
Connectivity Test (nmap).
The Port Connectivity Test page appears.
2. From the Network drop-down box, select the network you want to test: Grid, Admin, or Client.
3. Specify a range of IPv4 addresses for the hosts on that network.
For example, you might want to ping the gateway on the network or the primary Admin Node.
