16 | Hardware Installation and Maintenance Guide for SG5700 Appliances
access to the grid, so the Grid Network can be isolated and secured. The Client Network is
optional.
• Management network for SANtricity System Manager: This network provides access to
SANtricity System Manager on the E2800 controller, allowing you to monitor and manage the
hardware components in the appliance. This management network can be the same as the Admin
Network for StorageGRID, or it can be an independent management network.
Note: For detailed information about StorageGRID networks, see the installation instructions for
your platform.
StorageGRID appliance connections

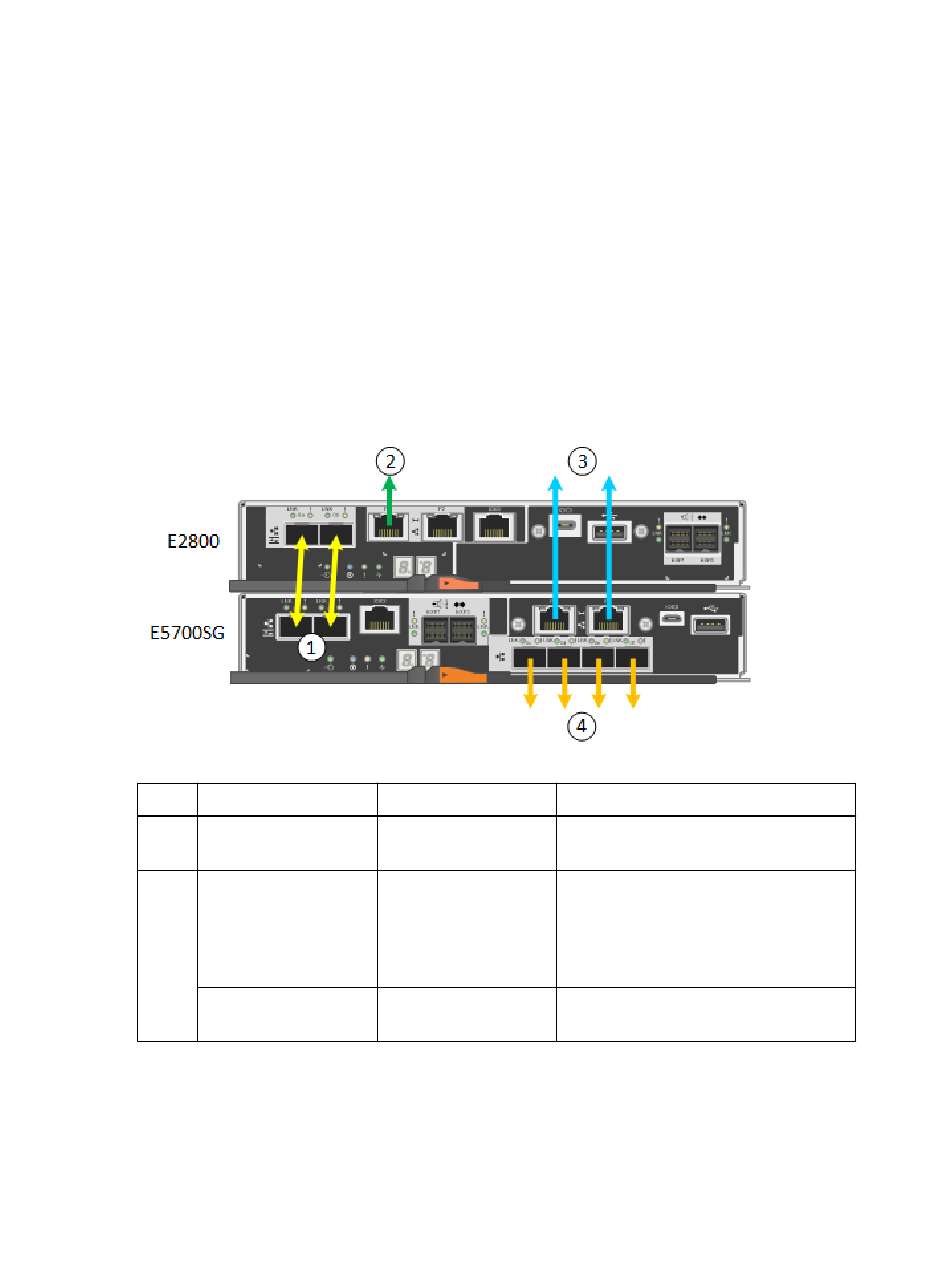

When you install a StorageGRID appliance, you must connect the two controllers to each other and
to the required networks. The figure shows the two controllers in the SG5760, with the E2800
controller on the top and the E5700SG controller on the bottom. In the SG5712, the E2800 controller
is to the left of the E5700SG controller.
Port
1 Two interconnect ports
on each controller
2 Management port 1 on
the E2800 controller
Management port 2 on
the E2800 controller
Type of port Function
16Gb/s FC optical Connect the two controllers to each
SFP+ other.
1-GbE (RJ-45) Connects to the network where you
access SANtricity System Manager.
You can use the Admin Network for
StorageGRID or an independent
management network.
1-GbE (RJ-45) Reserved for technical support.
