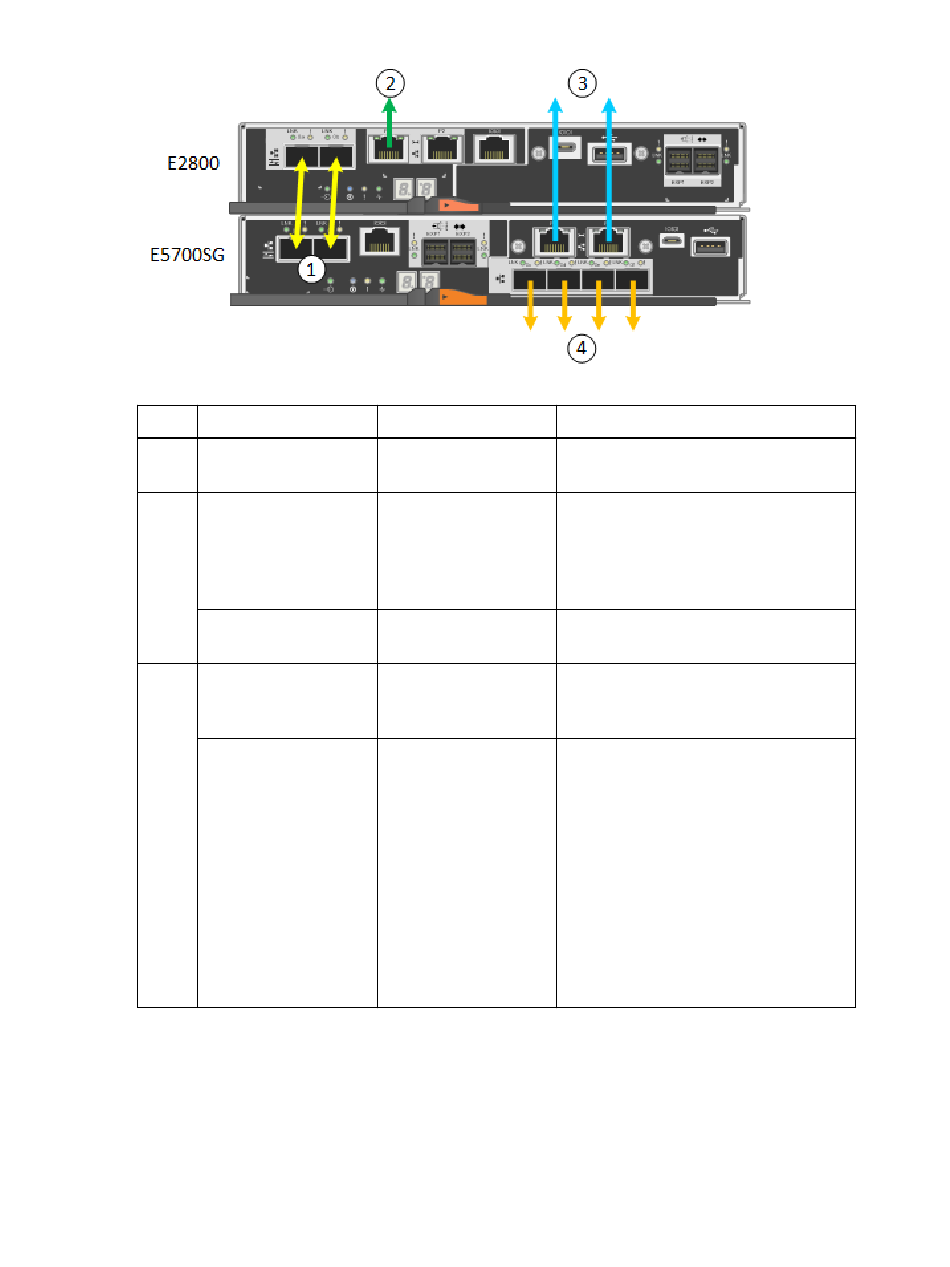

Port
1 Two interconnect ports
on each controller
2 Management port 1 on
the E2800 controller
Management port 2 on
the E2800 controller
3 Management port 1 on
the E5700SG
controller
Management port 2 on
the E5700SG
controller
Type of port Function
16Gb/s FC optical Connect the two controllers to each
SFP+ other.
1-GbE (RJ-45) Connects to the network where you
access SANtricity System Manager.
You can use the Admin Network for
StorageGRID or an independent
management network.
1-GbE (RJ-45) Reserved for technical support.
1-GbE (RJ-45) Connects the E5700SG controller to the
Admin Network for StorageGRID.
1-GbE (RJ-45)
•
•
•
Installing the hardware | 27
Can be bonded with management
port 1 if you want a redundant
connection to the Admin Network.
Can be left unwired and available
for temporary local access (IP
169.254.0.1).
During installation, can be used to
connect the E5700SG controller to a
service laptop if DHCP-assigned IP
addresses are not available.
