40 | Hardware Installation and Maintenance Guide for SG5700 Appliances

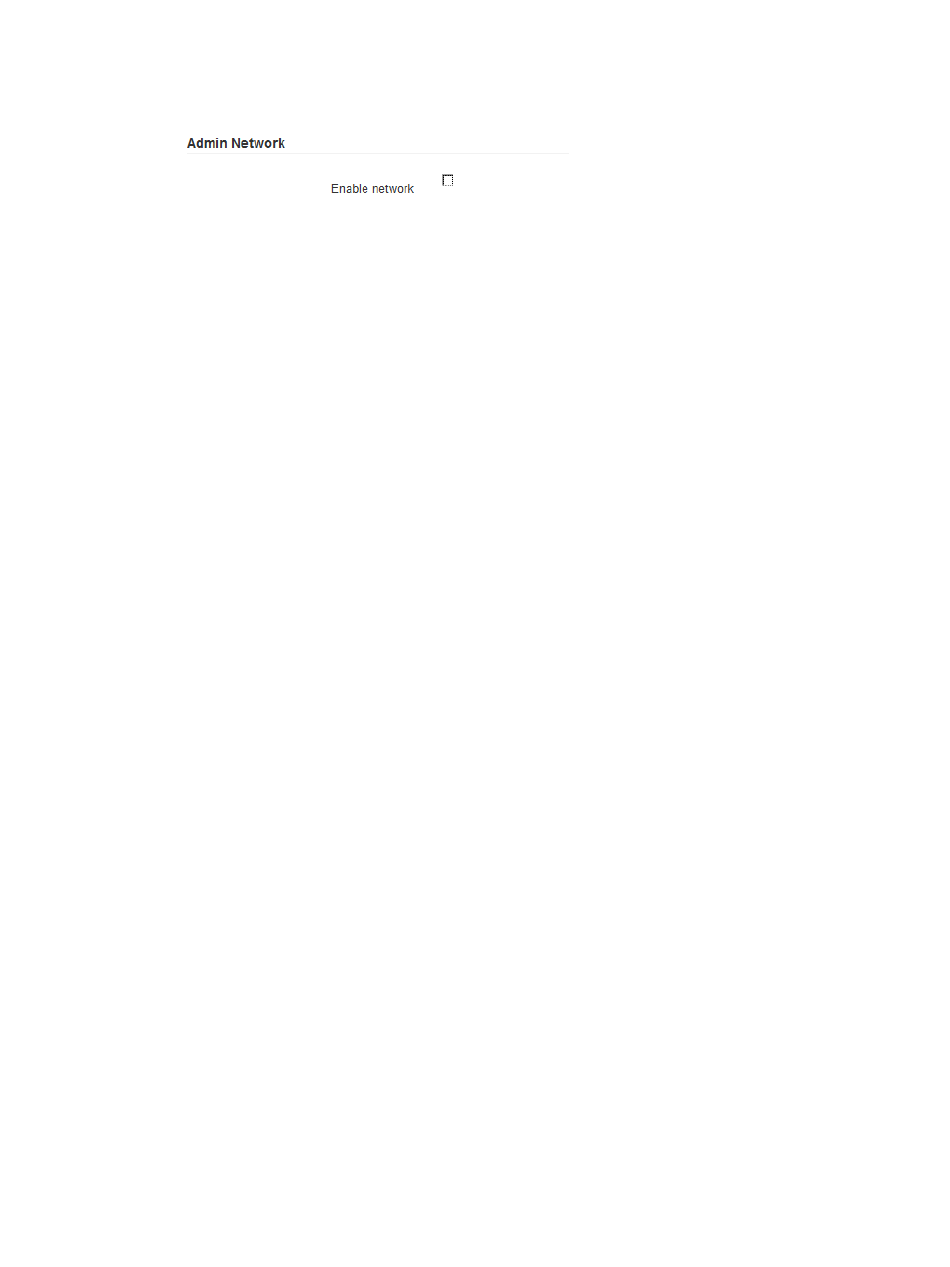

a. If the appliance is not connected to the Admin Network, unselect the Enable network check
box for the Admin Network.
b. If the appliance is connected to the Client Network, select the Enable network check box for
the Client Network.
The Client Network settings for the 10/25-GbE ports are now shown.
4. Refer to the table, and configure the port bond mode and the network bond mode.
The example shows:
• Aggregate and LACP selected for the Grid and the Client networks. You must specify a
unique VLAN tag for each network. You can select values between 0 and 4095.
• Active-Backup selected for the Admin Network.
