4 How to Programme
4.1.3 Initial Commissioning

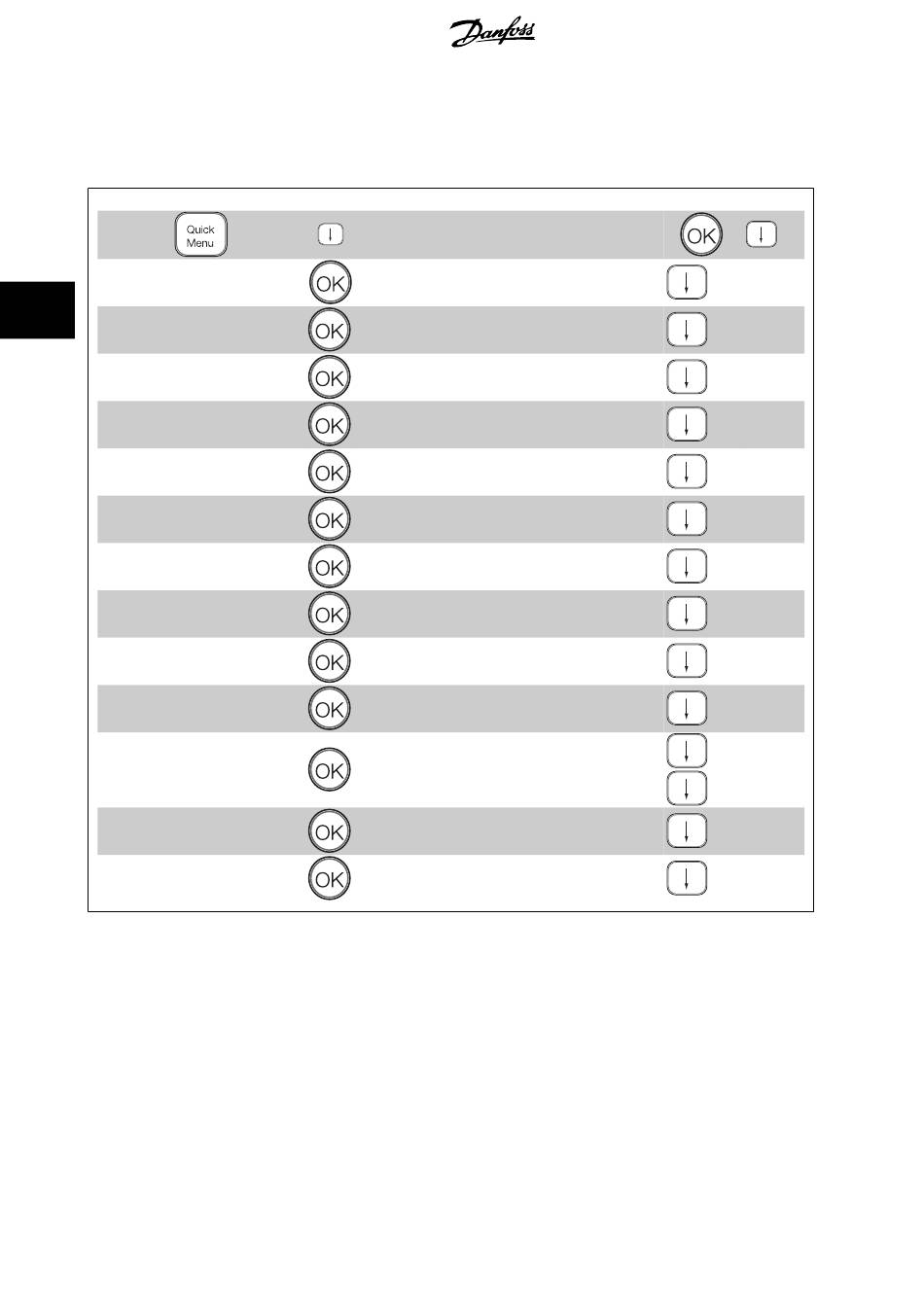

The easiest way of carrying out the initial commissioning is by using the Quick Menu button and follow the quick set-up procedure using LCP 102 (read
table from left to right). The example applies to open loop applications:
Press
Par. 0-01 Language
4
Motor Power [kW]
Par. 1-20
Motor Voltage
Par. 1-22
Par. 1-23 Motor Frequency
Par. 1-24 Motor Current
Motor Nominal Speed
Par. 1-25
Par. 5-12 Terminal 27 Digital Input
Par. 1-29 Automatic Motor Adaptation
(AMA)
Minimum Reference
Par. 3-02
Par. 3-03 Maximum Reference
Ramp 1 Ramp up Time
Par. 3-41
Ramp 1 Ramp Down Time
Par. 3-42
Par. 3-13 Reference Site
44
Q2 Quick Menu
Set language
Set Motor nameplate power
Set Nameplate voltage
Set Nameplate frequency
Set Nameplate current
Set Nameplate speed in RPM
If terminal default is Coast inverse it is possible to change this
setting to No function . No connection to terminal 27 is then
needed for running AMA
Set desired AMA function. Enable complete AMA is recommen-
ded
Set the minimum speed of the motor shaft
Set the maximum speed of the motor shaft
Set the ramping up time with reference to synchronous motor
speed, n
s
Set the ramping downdecel time with reference to synchronous
motor speed, n
s
Set the site from where the reference must work
®
