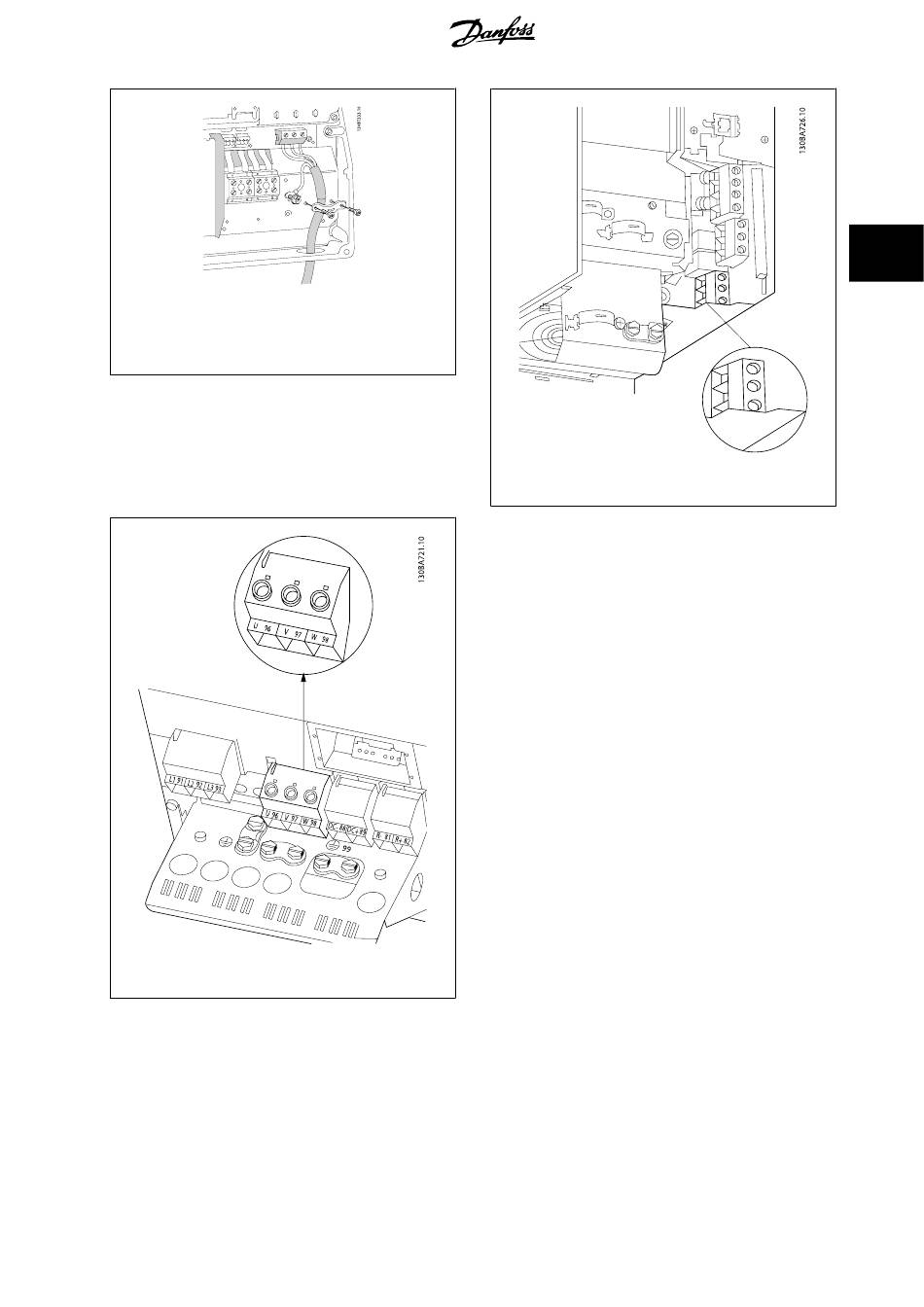

Illustration 3.11: Motor connection for size B1 and B2 (IP
21/ NEMA Type 1, IP 55/ NEMA Type 12 and IP66/ NEMA
Type 4X)
Illustration 3.13: Motor connection for frame size B4 .
Illustration 3.12: Motor connection for size B3.
®
MG.33.AG.02 - VLT
is a registered Danfoss trademark
3 How to Install
3
27
