Note: The two interlock pins on the output terminal must be shorted before the laser is turned on.
Usually there is shorted contacts in the processing head, please check the head to ensure that.

3.2 Installation Procedure

(1) Check if the power supply has the correct voltage (380VAC±10%，50/60Hz), and the earth
line is connected reliably.
(2) Place the Fiber Laser Module firmly on the desirable position.
(3) Check the output terminal and clean it if necessary.This procedure must be performed by
Raycus personnel or person authorized by Raycus.
(4) Connect the power cable and control cable to the Fiber Laser when power supply is OFF.
(5) Insert the water tube into the inlet and outlet.

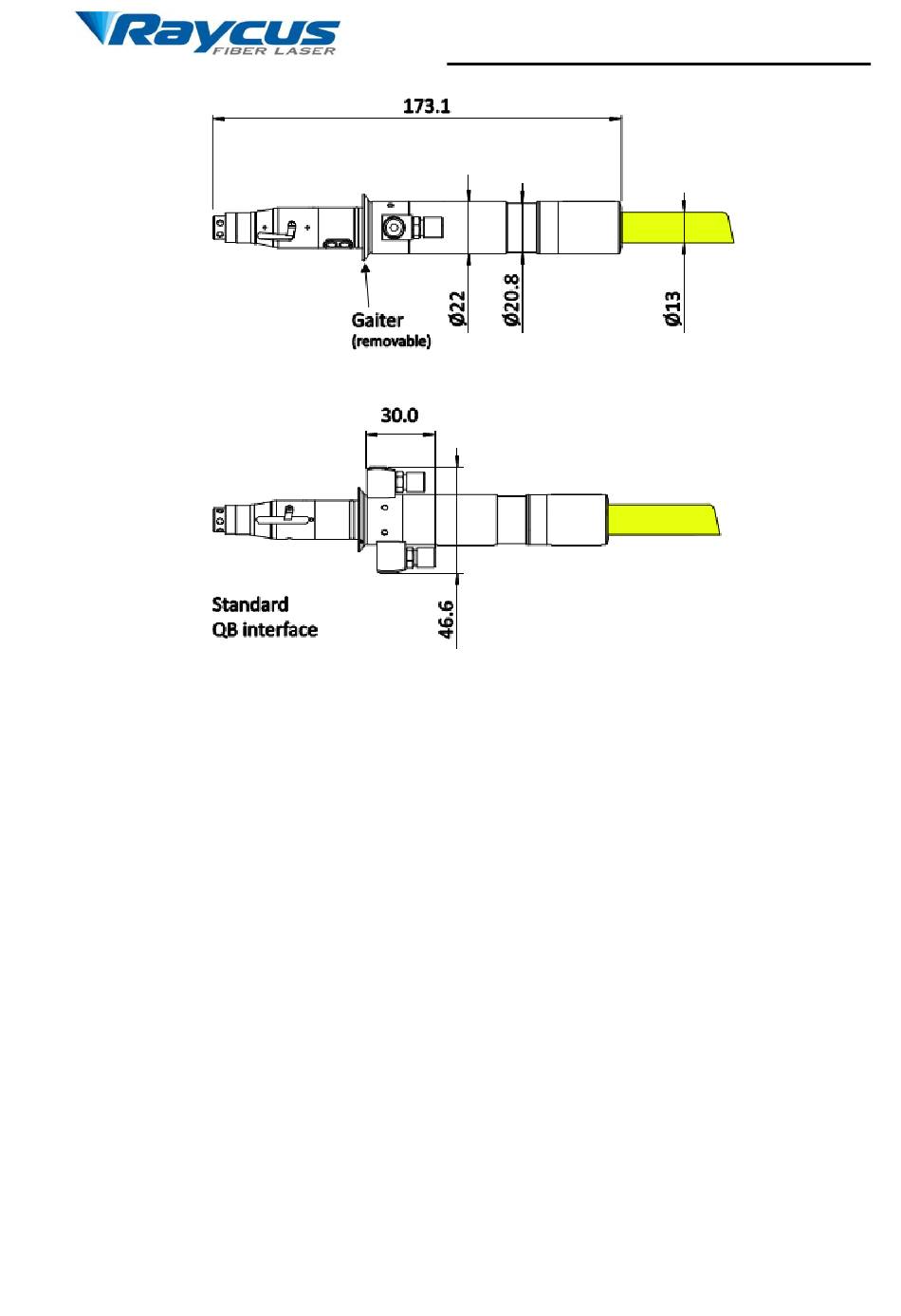

Figure 2: QBH Output Terminal (unit: mm)
11
