A power cord is provided in the package, as in Figure 7
One end of the power cord is a plug, insert it into the socket „AC INPUT‟ on the rear panel.
Notice that the plug is wrong-side preventing. After insert it, lock it with the lever (Figure 8).
The other end of the power cord is stripped off and each wire is crimped with a „pin-type cable
connector‟. There are five wires labeled L1, L2, L3, N and PE, respectively. You should connect
the wires to the AC power supply according to the labels in Table 4:
Label
L1
L2
L3
N
PE
The length of the power cord is 5 meters, and the conductor sectional area for each wire is
2
1.5mm .
Wuhan Raycus Fiber Laser Technologies Co., Ltd.

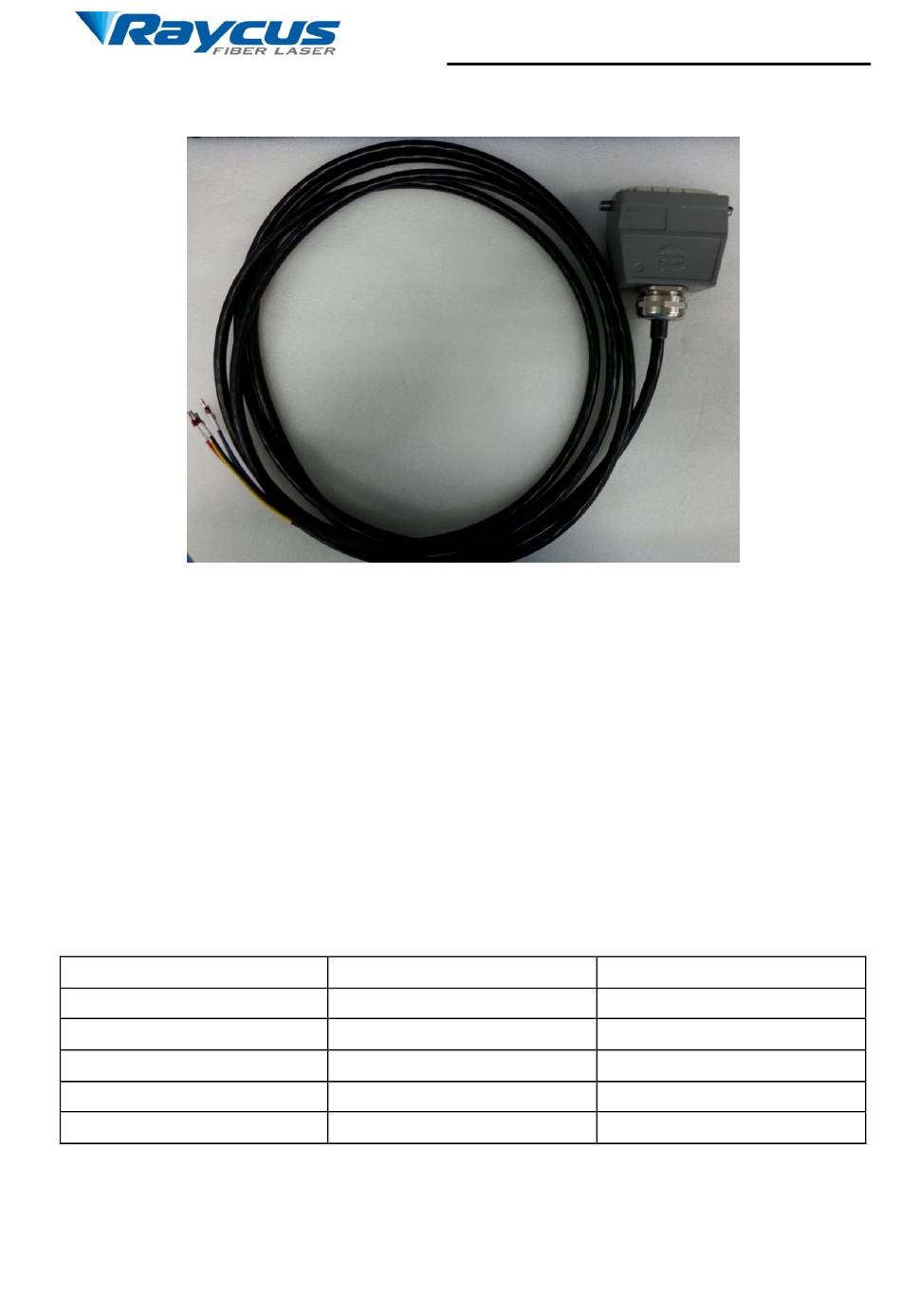

Figure 7: The Power Cord of the Laser
