4 Using the Product

4.1 Front Panel

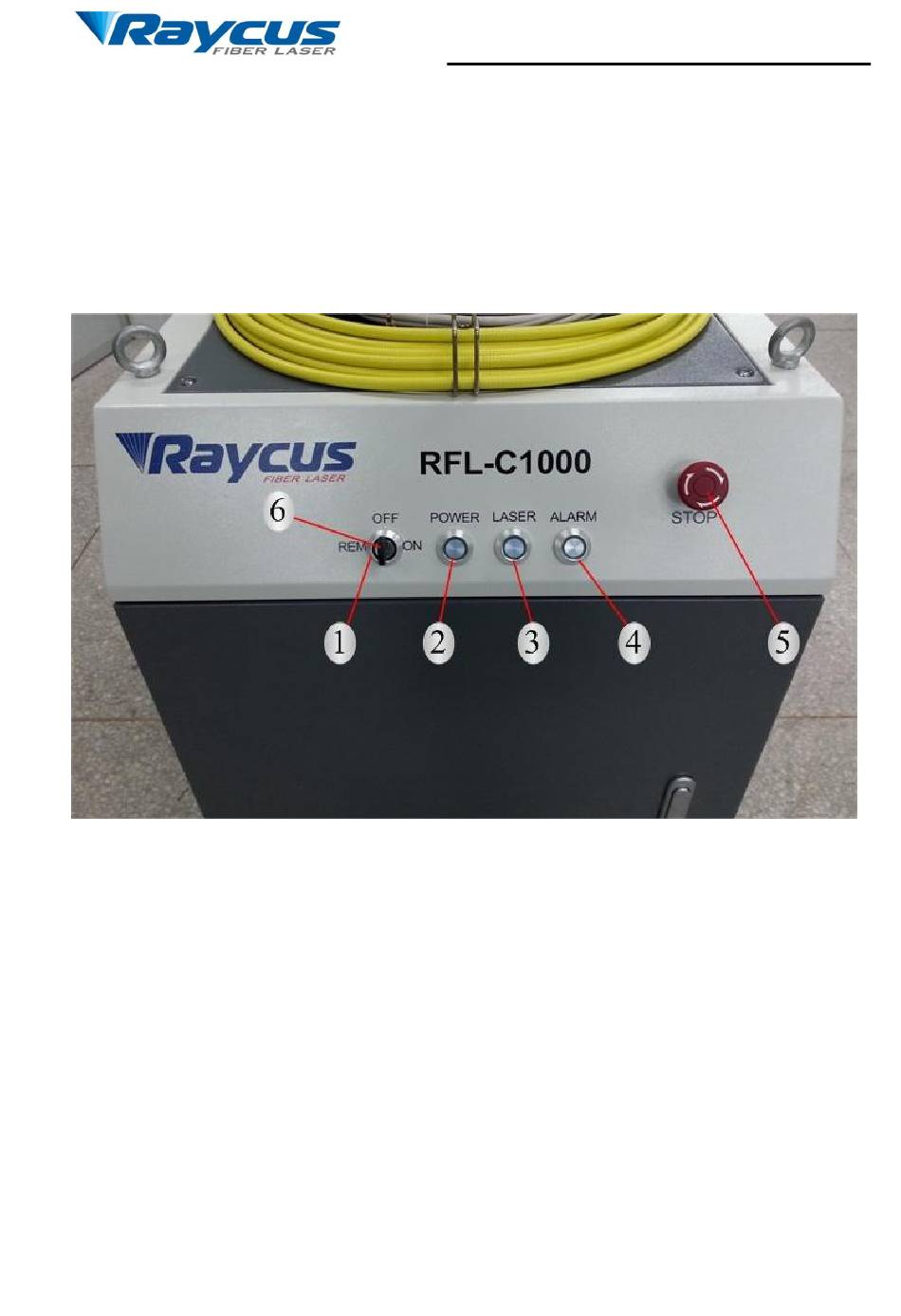

Figure 4 shows the front panel(RFL-C1000 is shown as an example, and RFL-C1200 and
RFL-C1500 have the same dimensions).
1. REM/OFF/ON: Key switch, the power switch of the laser. Insert the key (Item 6 in Figure 4);
either turn the key clockwise to the "ON" position or counterclockwise to "REM" position
will power on the laser. Then the laser will enter a control mode depending on your previous
setup in the „CONTROL‟ cable. You can refer to 4.6 Entering a Control Mode for more
details.
2. POWER: Power Indicator, indicates that the power is switched on, when the green LED
illumines.
