Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide 1000W/1200W/1500W
Ver: 1.0

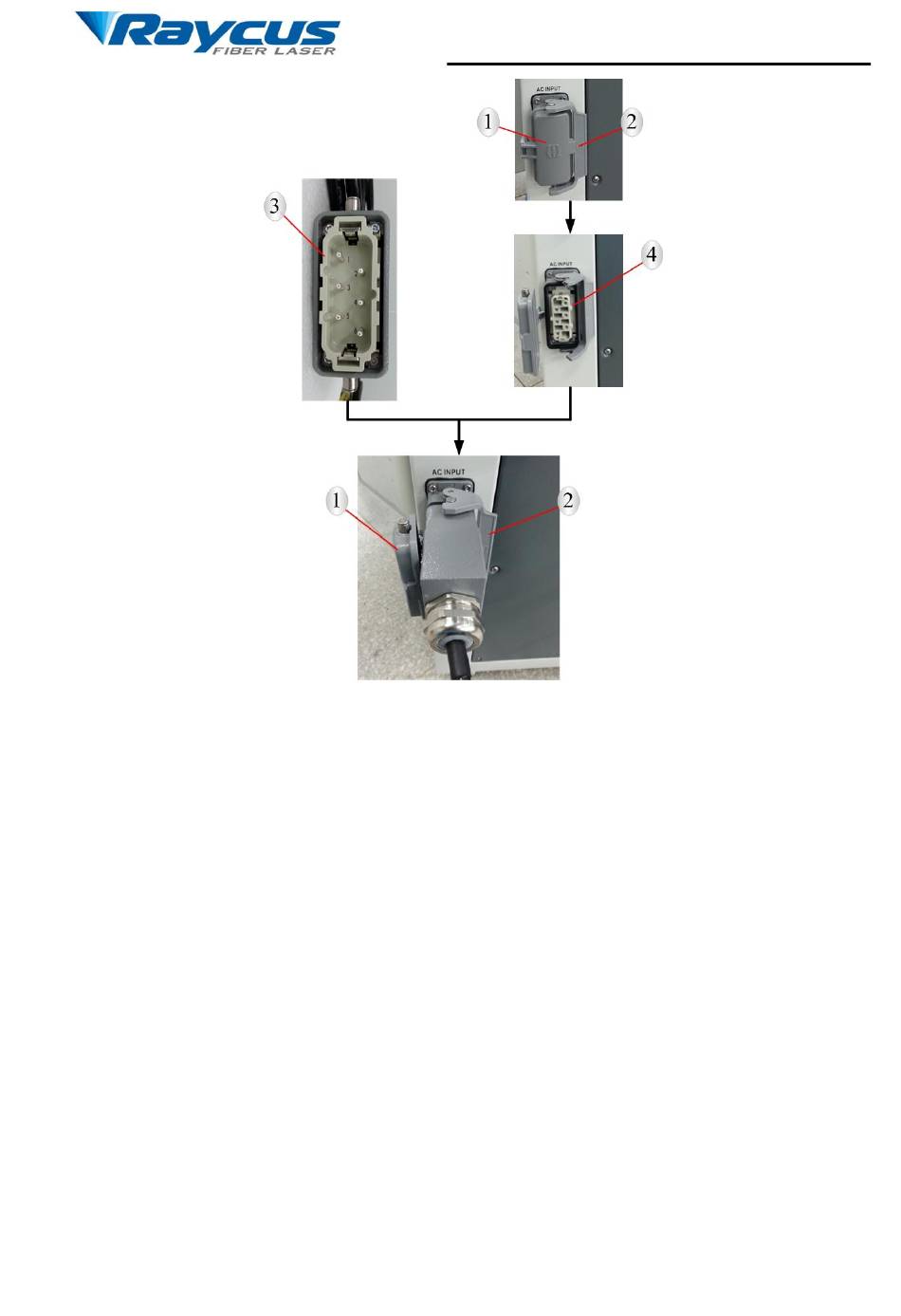

1. Protective cap; 2. Lever; 3. Plug; 4. Socket
Figure 8: Lock the Plug of the Power Cord with the Lever
4.4 Control Wire Definitions
All the control signals are integrated in the „INTERFACE‟ on the rear panel (Figure 5).
We provide a cable for the „INTERFACE‟, as shown in Figure 9
19
