The system self-check will pass in about 30 seconds, then „RDY‟ signal will be sent. After that,
you can send codes from the upper computer. In RS-232 mode, the laser emits on conditions that
the „Emission On‟ code (1B4F0D) is received, operation parameters are set and remote
modulation signal inputs from the „MODULATION‟ cable.
In RS-232 mode, you can still use hyper terminal to monitor the status of the laser. All you have
to do is to start windows hyper terminal, and configure it as stated in 4.7.2 Hyper Terminal Setup.
But you can‟t set operation parameters from hyper terminal when the control mode is RS-232.

4.9 AD Mode

AD mode is also remote control mode. In AD mode, the output power is set by analog signal,
and pulse mode is not available in this control mode.

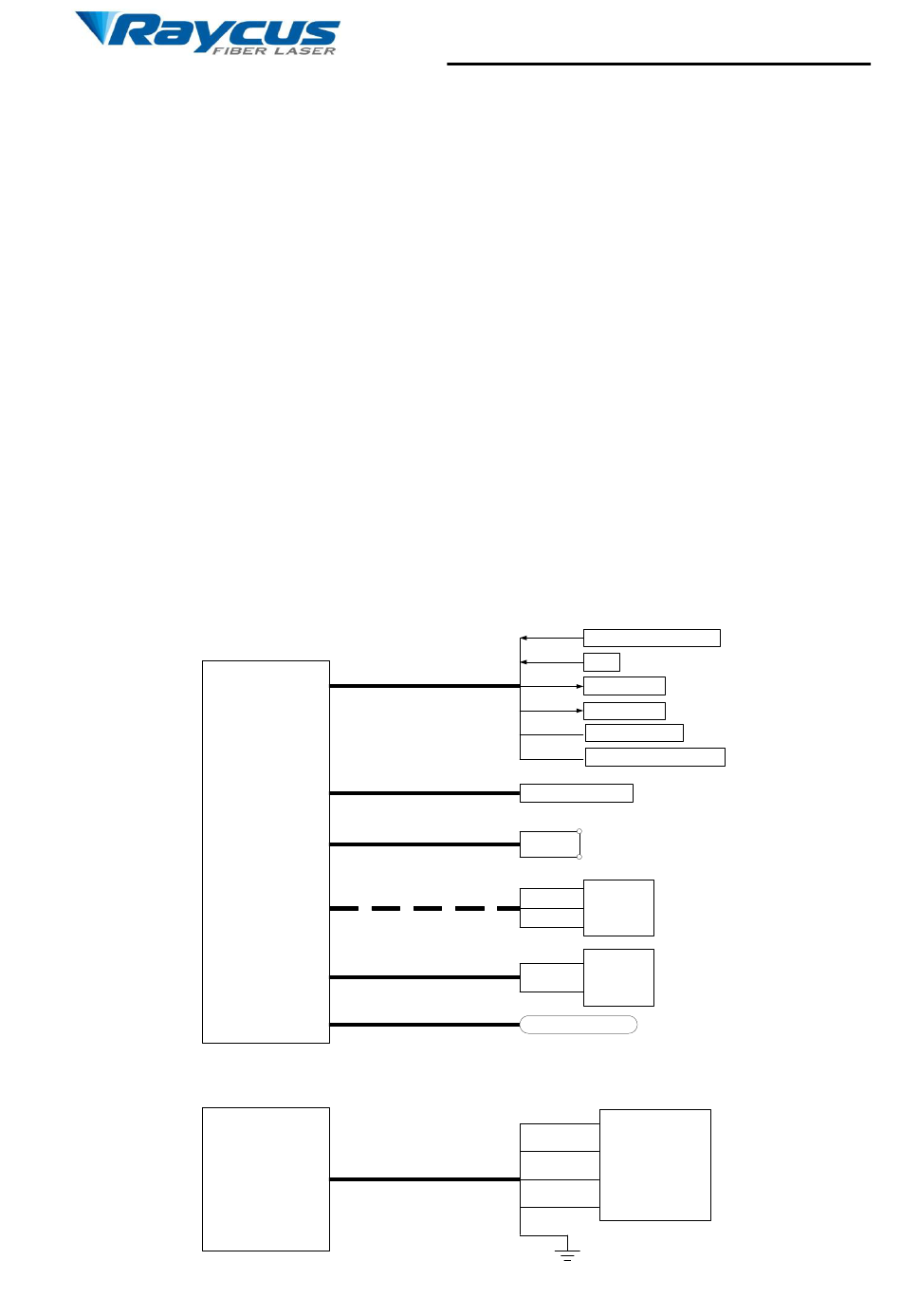

4.9.1 Wiring in AD Mode
INTERFACE
AC INPUT
Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide 1000W/1200W/1500W
LAS_C
AD/RS
CONTROL
RDY
S_ERR
EGND
EVCC
MODULATION
Modulation Signal
ITL_A
INTERLOCK
ITL_B
RS-232
GND
0-10V
AD
AGND
RS-422
Left Disconnected
35
Emission Control Signal
24V
System Ready
System Error
External Ground
External Power Supply
Shorted
RX
TX
COM of PC
Analog
Signal
L1
Three Phase
L2
AC Power
L3
Supply(With
Neutral)
N
PE
