4.7.1 Wiring in Hyper Terminal Mode
INTERFACE
AC INPUT
The wiring in hyper terminal mode is in Figure 12. The „CONTROL‟ cable is for different
purposes. „LAS_C‟ is for remote emission control, „AD/RS‟ is for control mode setting, „RDY‟
is a flag for system self-check accomplishment. „S_ERR‟ is for system error report. „EVCC‟ is
24V external power supply. All the signals in the „CONTROL‟ cable are 24V level, and are
relative to „EGND‟. If you don‟t use remote emission control, left „LAS_C‟ disconnected. The
„MODULATION‟ cable need to be connected when the laser emission is controlled by remote
modulation signal, otherwise can be left disconnected. The „RX‟ and „TX‟ of the „RS-232‟ cable
should be connected to the „RX‟ and „TX‟ of the PC, respectively. „AD‟ and „RS-422‟ should be
CONTROL
MODULATION
INTERLOCK
RS-232
AD
RS-422

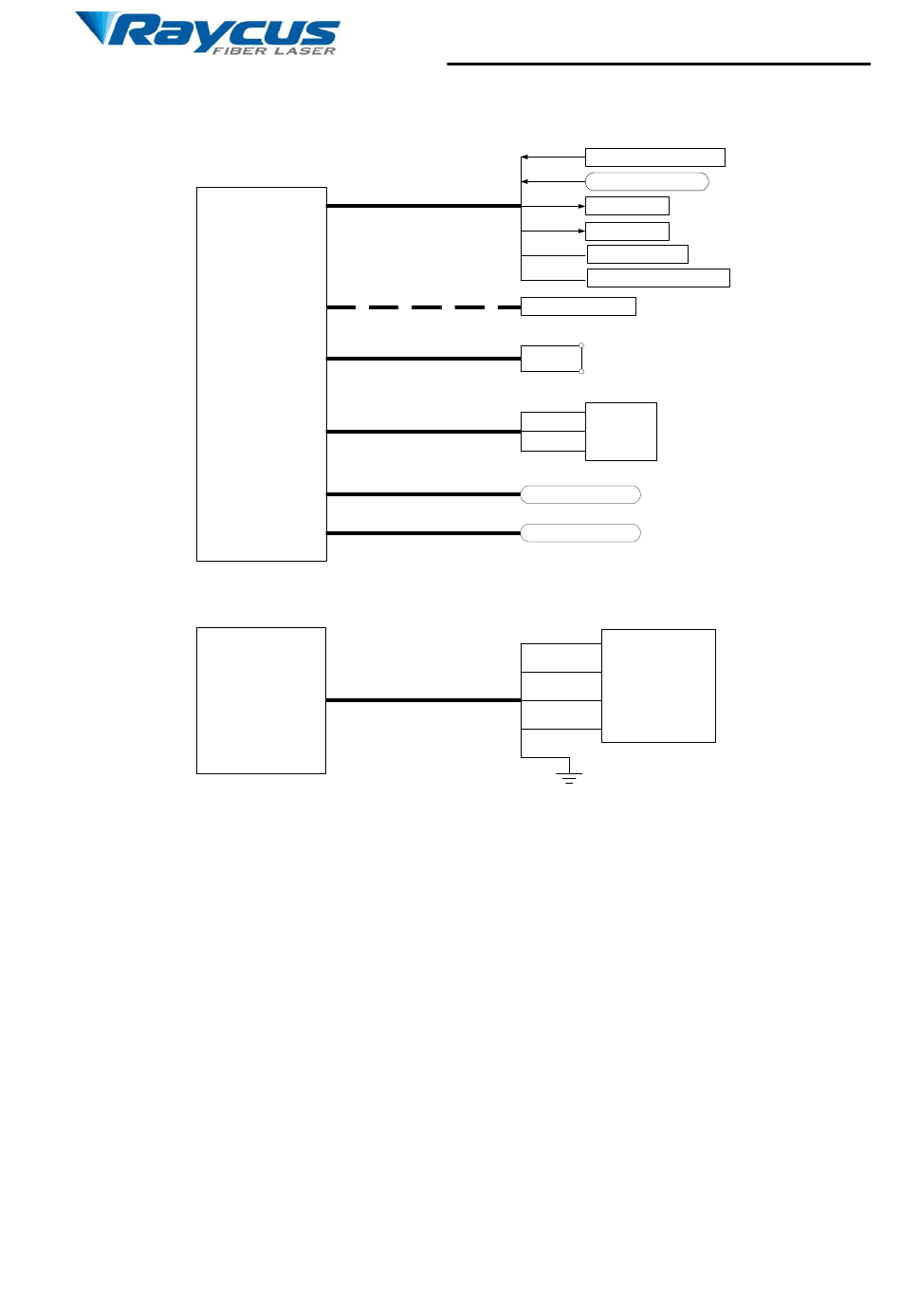

Figure 12: Wiring in Hyper Terminal Mode
25
Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide 1000W/1200W/1500W
LAS_C
Emission Control Signal
AD/RS
Left Disconnected
RDY
System Ready
S_ERR
System Error
EGND
External Ground
EVCC
External Power Supply
Modulation Signal
ITL_A
Shorted
ITL_B
RX
TX
COM of PC
GND
Left Disconnected
Left Disconnected
L1
Three Phase
L2
AC Power
L3
Supply(With
Neutral)
N
PE
