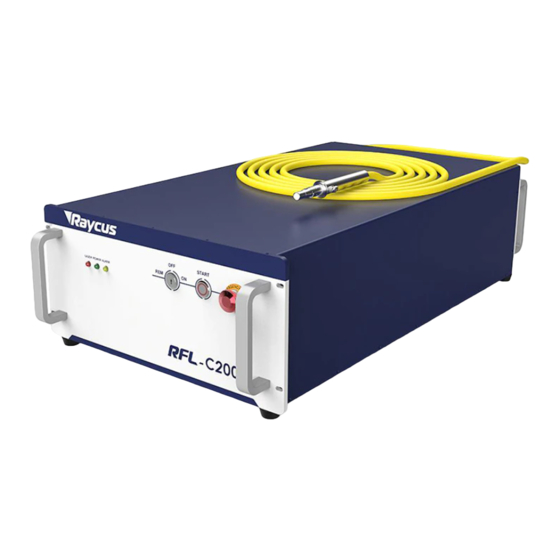

Raycus RFL-C1500 User Manual
Continuous-wave fiber laser
Hide thumbs
Also See for RFL-C1500:
- User manual (49 pages) ,
- User manual (36 pages) ,
- User manual (43 pages)
Subscribe to Our Youtube Channel
Related Manuals for Raycus RFL-C1500
Summary of Contents for Raycus RFL-C1500
- Page 1 Continuous-Wave Fiber Laser User Guide RFL-C1500/RFL-C2000 Wuhan Raycus Fiber Laser Technologies Co., Ltd.
-
Page 2: Table Of Contents
Wuhan Raycus Fiber Laser Technologies Co., Ltd. User Guide of RFL-C1500/C2000 TABLE OF CONTENTS 1 Safety Information........................1 1.1 Symbols Used in this User Guide..................1 1.2 Laser Classification......................1 1.3 Safety Labels........................2 1.4 Optical Safety........................3 1.5 Electrical Safety.........................3 1.6 Other Safety Rules......................4 2 Product Description........................5... -
Page 3: Safety Information
User Guide of RFL-C1500/C2000 1 Safety Information Thank you for choosing Raycus fiber laser. This User Guide provides important safety, operation, warranty and other information. Please read it carefully before you use this product. In order to ensure safe operation and optimal performance of the product, please follow the warnings, cautions, operating procedures and other instructions accordingly. -
Page 4: Safety Labels
Wuhan Raycus Fiber Laser Technologies Co., Ltd. User Guide of RFL-C1500/C2000 WARNING: You must use appropriate laser safety eyewear when this device is operating. The laser safety eyewear is selected according to the range of wavelengths emitted from this product. The end user must ensure that the laser safety eyewear being used protects against light emitted by the device over its entire range of wavelengths. -
Page 5: Optical Safety
Wuhan Raycus Fiber Laser Technologies Co., Ltd. User Guide of RFL-C1500/C2000 These safety labels include warning labels, apertures through which laser radiation is emitted and labels of certification and identification, etc. Specifications of these labels are as follows: Table 1: Specifications of Safety Labels (Take 500W for example) 3.Class 2M Laser Product... -
Page 6: Other Safety Rules
(4) There are no operator serviceable parts inside, and all maintenance must be performed in Raycus or by qualified Raycus personnel. Do not try to remove covers, or electrical shock may be caused, and warranty will be void. -
Page 7: Product Description
Cutting, Welding 3D Printing Scientific research 2.2 Model Configuration The series of Raycus continuous-wave fiber laser include 1500W and 2000W, and the model designation codes are illustrated in the following table: Table 2 Model Names and Designation Codes... -
Page 8: Package Contents
Check all items against the list and contact Raycus immediately if there is any missing item or evident damage to the unit. DO NOT attempt to install or operate the laser, if there is any evident or suspected damage to the unit. -
Page 9: Operation Environment
Wuhan Raycus Fiber Laser Technologies Co., Ltd. User Guide of RFL-C1500/C2000 CAUTION: The fiber optic cable and output head is precise optic instrument, any vibration or impact to the output head, and twist or excessive bend to the cable will damage the instrument. -
Page 10: Precautions For Use
Wuhan Raycus Fiber Laser Technologies Co., Ltd. User Guide of RFL-C1500/C2000 （℃） -3.5 14.5 16.5 10.5 16.5 10.5 18.5 21.5 19.5 28.5 27.5 33.5 Laser operating temperature range 2.6 Precautions for Use (1) Before supplying the power to the device, make sure that the correct voltage of the AC power source is used (See Table 3 for the laser model and corresponding input voltage). - Page 11 Wuhan Raycus Fiber Laser Technologies Co., Ltd. User Guide of RFL-C1500/C2000 Table 5 Specifications Table 6 Product C1500X C1500H C2000X C2000H Test Conditions SpecificationsModel Optical Specifications Nominal Output Power (W) 1500 2000 Operation Modes CW/Modulated Polarization State Random Output Power Tunability(%)
- Page 12 Wuhan Raycus Fiber Laser Technologies Co., Ltd. User Guide of RFL-C1500/C2000 Other Characteristics Dimensions(W×H×D) 900 × 44 7 ×237 ( include. handles ) Weight(kg) <70 Operating Ambient Temperature 10~40 (℃) Humidity (%) 30-70 Storage Temperature (℃) -10~60 Cooling Method Water Cooling...
-
Page 13: Installation
Wuhan Raycus Fiber Laser Technologies Co., Ltd. User Guide of RFL-C1500/C2000 3 Installation 3.1 Dimensions Figure 22 shows dimensions of C1500X/C1500H and RFL-C2000X/C2000H (take RFL-C2000X for example,). Figure 2 (a) Front panel view (unit: mm) Figure 2 (b) Rear panel view (unit: mm) -
Page 14: Output Cables And Installation
Wuhan Raycus Fiber Laser Technologies Co., Ltd. User Guide of RFL-C1500/C2000 Figure 2 (c) Top and Side view (unit: mm) 3.2 Output Head and Installation Figure 3a Dimensions of QBH Output Head（1500X、2000X）... -
Page 15: Cooling Requirements
Inspect the output lens before installing the output head to the processing head. Clean the output lens if necessary. It is strictly prohibited to disassemble the output head by personnel not approved by Raycus, or the warranty is void. 3.3 Cooling Requirements Table 7 Cooling Requirements... - Page 16 Wuhan Raycus Fiber Laser Technologies Co., Ltd. User Guide of RFL-C1500/C2000 The water temperature setting of cooling system: 25±1℃（RFL-C1500X、1500H/C2000X、2000H） Cooling water requirements: It is recommended to use purified water. In order to prevent mould growing that may lead to pipe blockage, we recommend to add alcohol about 10% of the total volume.
-
Page 17: Installation Procedure
Wuhan Raycus Fiber Laser Technologies Co., Ltd. User Guide of RFL-C1500/C2000 Radius of the bending of the armored pipe: off-work state (i.e. transportation and reservation): minimum radius of bending ≥ 20 cm; in-work state: minimum radius of bending ≥ 30 cm;... - Page 18 User Guide of RFL-C1500/C2000 (5) Check the output head and clean it if necessary. This procedure must be performed by personnel of Raycus or authorized by Raycus. Make sure the environment is clean, or the output cable may be contaminated.
-
Page 19: Using The Product
Wuhan Raycus Fiber Laser Technologies Co., Ltd. User Guide of RFL-C1500/C2000 4 Using the Product Raycus CW fiber laser has stopped using the HyperTerminal, so the HyperTerminal will not work when the laser is powered on. Please clip the address below to download the latest PC software and the relevant manual. -
Page 20: Rear Panel
Wuhan Raycus Fiber Laser Technologies Co., Ltd. User Guide of RFL-C1500/C2000 5. START: Laser emission button, it’s a button with a ring-shaped LED indicator (red color). The product is ready to emit laser and the red light turned off, when this button is pressed down.
