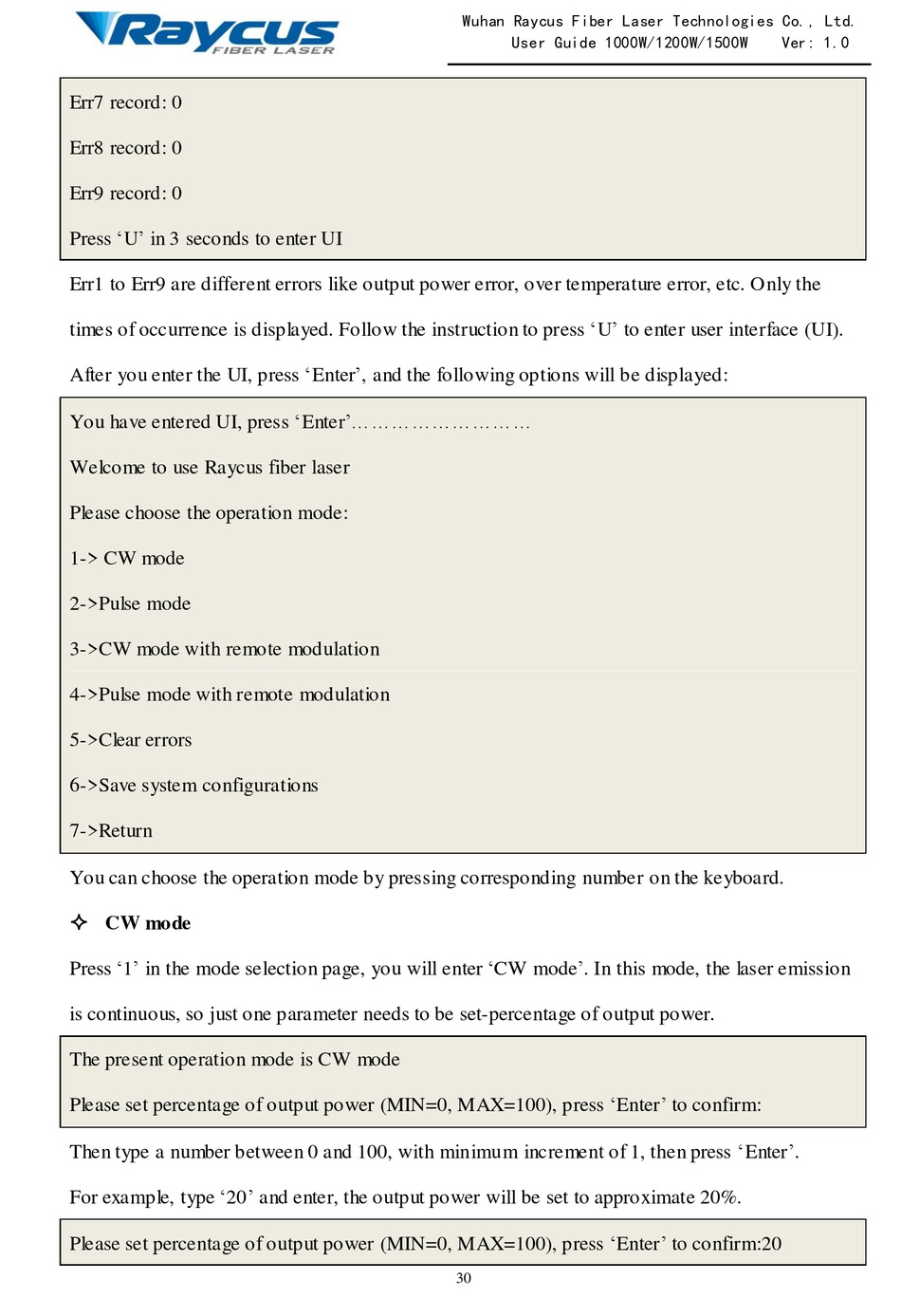

Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide 1000W/1200W/1500W
Ver: 1.0
Err7 record: 0
Err8 record: 0
Err9 record: 0
Press „U‟ in 3 seconds to enter UI
Err1 to Err9 are different errors like output power error, over temperature error, etc. Only the
times of occurrence is displayed. Follow the instruction to press „U‟ to enter user interface (UI).
After you enter the UI, press „Enter‟, and the following options will be displayed:
You have entered UI, press „Enter‟...........................
Welcome to use Raycus fiber laser
Please choose the operation mode:
1-> CW mode
2->Pulse mode
3->CW mode with remote modulation
4->Pulse mode with remote modulation
5->Clear errors
6->Save system configurations
7->Return
You can choose the operation mode by pressing corresponding number on the keyboard.
CW mode
Press „1‟ in the mode selection page, you will enter „CW mode‟. In this mode, the laser emission
is continuous, so just one parameter needs to be set-percentage of output power.
The present operation mode is CW mode
Please set percentage of output power (MIN=0, MAX=100), press „Enter‟ to confirm:
Then type a number between 0 and 100, with minimum increment of 1, then press „Enter‟.
For example, type „20‟ and enter, the output power will be set to approximate 20%.
Please set percentage of output power (MIN=0, MAX=100), press „Enter‟ to confirm:20
30
