3. LASER: Laser emission button, it‟s a button with a red indicator. In hyper terminal mode and
AD mode, when this button is pressed down, the product is ready to emit laser, and the LED
illumines. Press again will release the button, and disable the laser emission. It is also for
shifting the laser and red guide laser. When laser emission is enabled, the red guide laser is off;
when the laser emission is disabled, the red guide laser is on.
4. ALARM: Alarm indicator, indicates a fault condition, when the yellow LED illumines.
5. EMERGENCY STOP: Press it down to stop the laser immediately, turn it clockwise to
release. But the laser cannot start before it‟s powered on (use the key switch) for a second
time.

4.2 Rear Panel

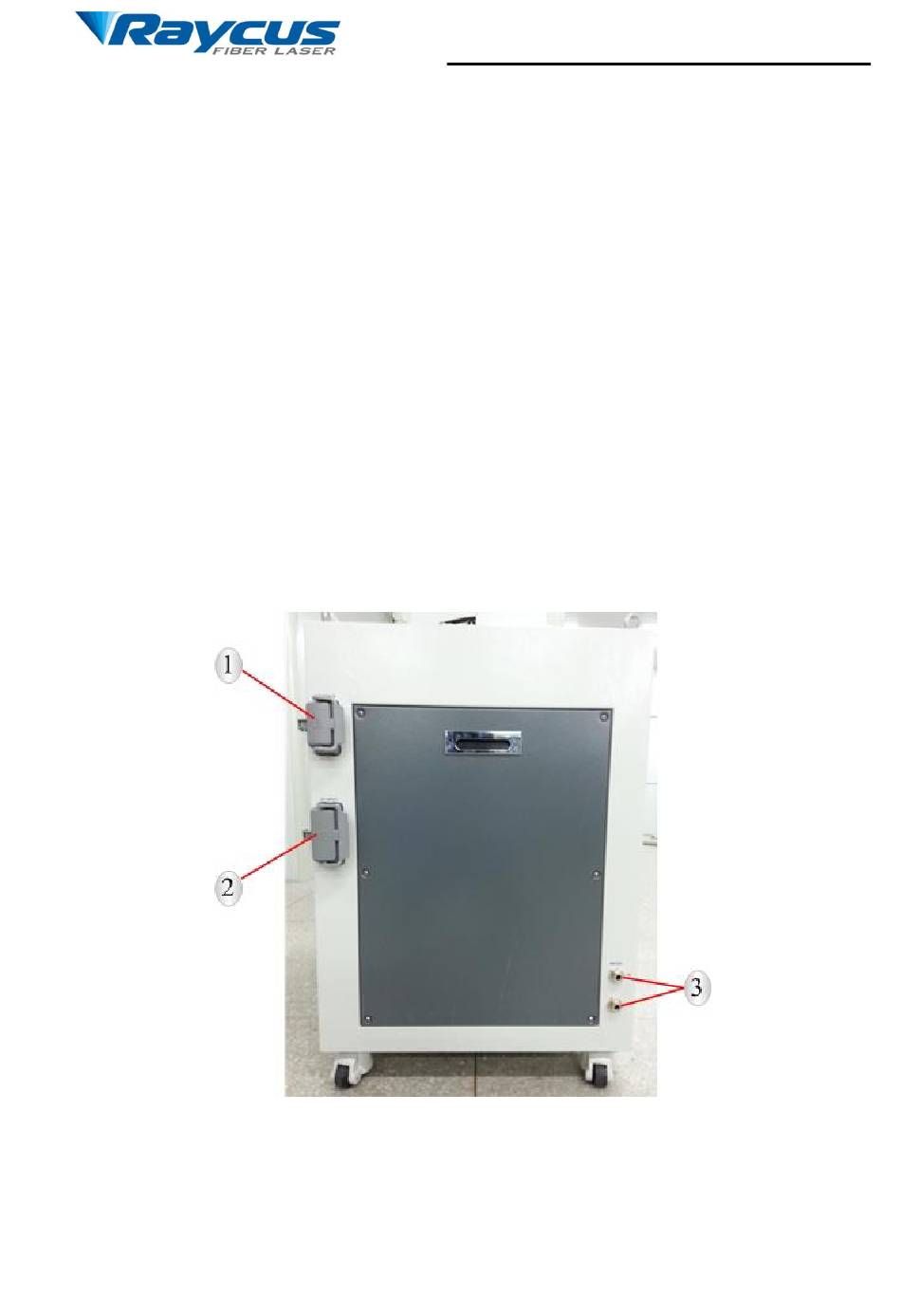

Figure 5 shows the rear panel.
Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide 1000W/1200W/1500W
Figure 5: Rear Panel View
