Raycus RFL-C Series User Manual page 23
Multi-mode continuous wave fiber laser
Hide thumbs
Also See for RFL-C Series:
- User manual (47 pages) ,
- User manual (54 pages) ,
- User manual (53 pages)
Table of Contents
Advertisement
Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide 1000W/1200W/1500W
Ver: 1.0
1. Protective cap; 2. Lever; 3. Plug; 4. Socket

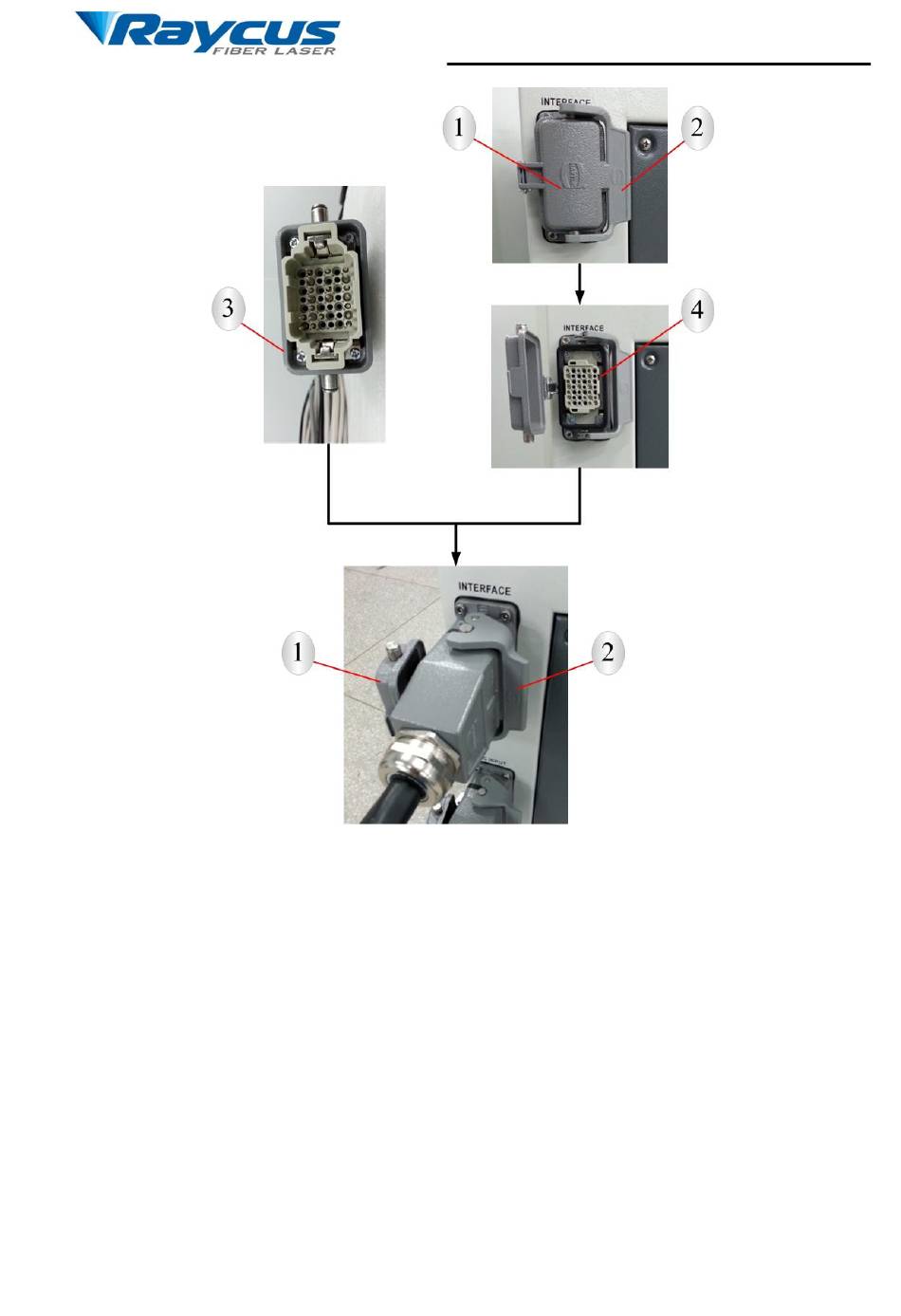

Figure 10: Lock the Plug of the Cable for „INTERFACE‟ with the lever
The control cable for the „INTERFACE‟ is actually 6 cables, they are for different purpose.
The control wire definitions are in the following table.
