Wiring For Start/Stop - Danfoss VLT AutomationDrive FC 361 Series Design Manual

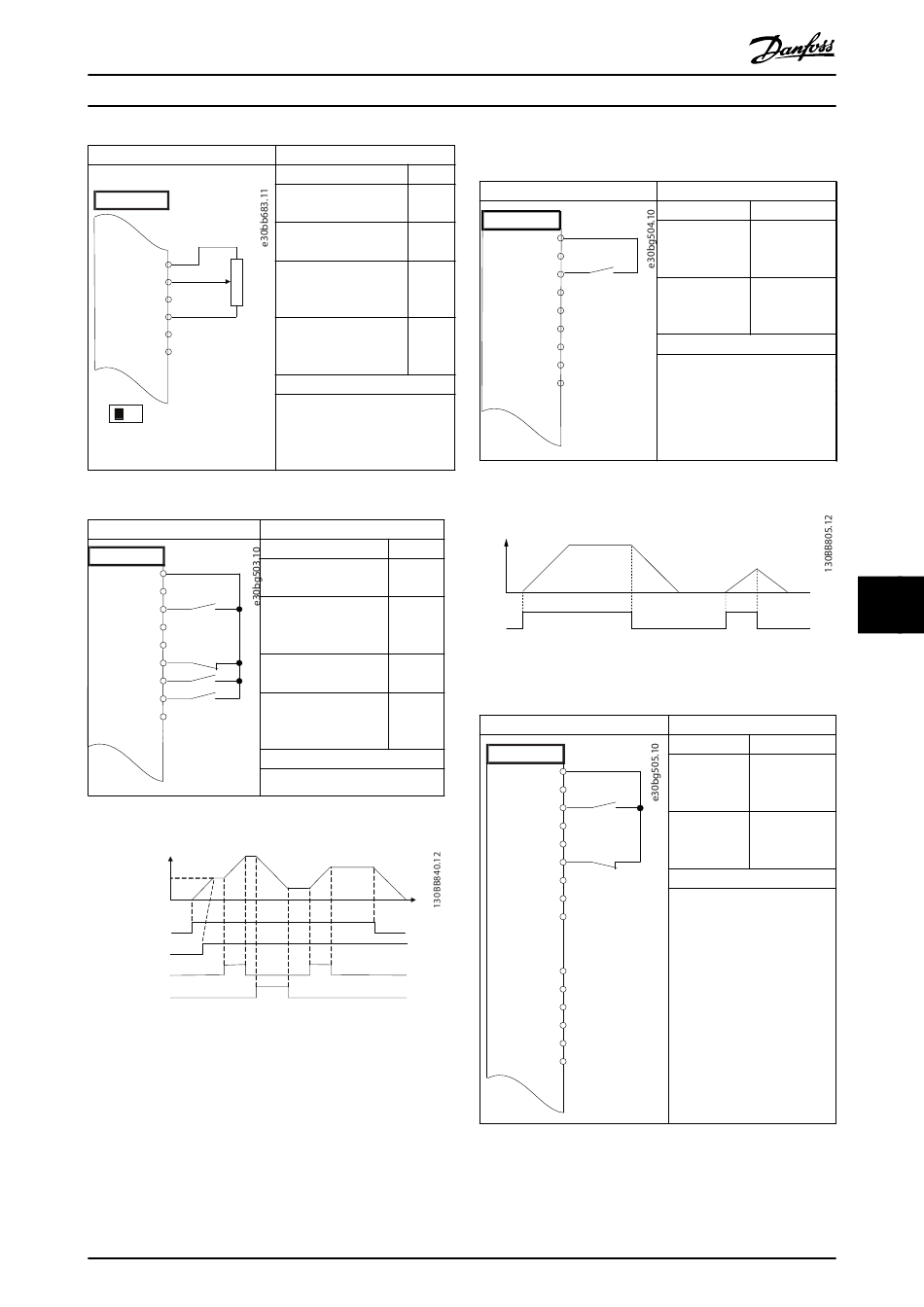

Application Examples
FC
+10 V 50
A IN
53 ≈ 5kΩ
A IN
54
COM
55
A OUT
42
COM
39
U - I
A53
Table 9.3 Speed Reference (Using a Manual Potentiometer)
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
Table 9.4 Speed Up/Speed Down
Speed
Reference
Start (18)
Freeze ref (27)
Speed up (29)
Speed down (32)
Illustration 9.2 Speed Up/Speed Down
MG06K102
Design Guide
Parameters
Function Setting
Parameter 6-12 Terminal 4 mA*
53 Low Current
Parameter 6-13 Terminal 20 mA*
53 High Current
Parameter 6-14 Terminal 0 Hz
53 Low Ref./Feedb.
Value
Parameter 6-15 Terminal 50 Hz
53 High Ref./Feedb.
Value
* = Default value
Notes/comments:
Assumptions are 0 V DC input
= 0 RPM speed and 10 V DC
input = 1500 RPM speed.
Parameters
Function Setting
Parameter 5-10 Termin [8] Start*
al 18 Digital Input
Parameter 5-12 Termin [19]
al 27 Digital Input Freeze
Reference
Parameter 5-13 Termin [21]
al 29 Digital Input Speed Up
Parameter 5-14 Termin [22]
al 32 Digital Input Speed
Down
* = Default value
Notes/comments:
Danfoss A/S © 03/2019 All rights reserved.

9.3 Wiring for Start/Stop

FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
Table 9.5 Start/Stop Command
Speed
Start/Stop (18)
Illustration 9.3 Start/Stop Command
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 9.6 Pulse Start/Stop
Parameters
Function Setting
Parameter 5-10 [8] Start*
Terminal 18
Digital Input
Parameter 5-12 [0] No
Terminal 27 operation
Digital Input
* = Default value
Notes/comments:
If parameter 5-12 Terminal 27
Digital Input is set to [0] No
operation, a jumper wire to
terminal 27 is not needed.
Parameters
Function Setting
Parameter 5-1 [9] Latched
0 Terminal 18 Start
Digital Input
Parameter 5-1 [6] Stop Inverse
2 Terminal 27
Digital Input
* = Default value
Notes/comments:
69
