Electrical Installation Con...
7 7
A Installations with cables connected in a common joint as shown in A and B are only recommended for short cable lengths.
B Be aware of the maximum motor cable length specified in chapter 5.5 Cable Specifications.
C The total motor cable length specified in chapter 5.5 Cable Specifications is valid as long as the parallel cables are kept less than
10 m (32 ft) each.
D Consider voltage drop across the motor cables.
E Consider voltage drop across the motor cables.
F The total motor cable length specified in chapter 5.5 Cable Specifications is valid as long as the parallel cables are kept less than
10 m (32 ft) each.

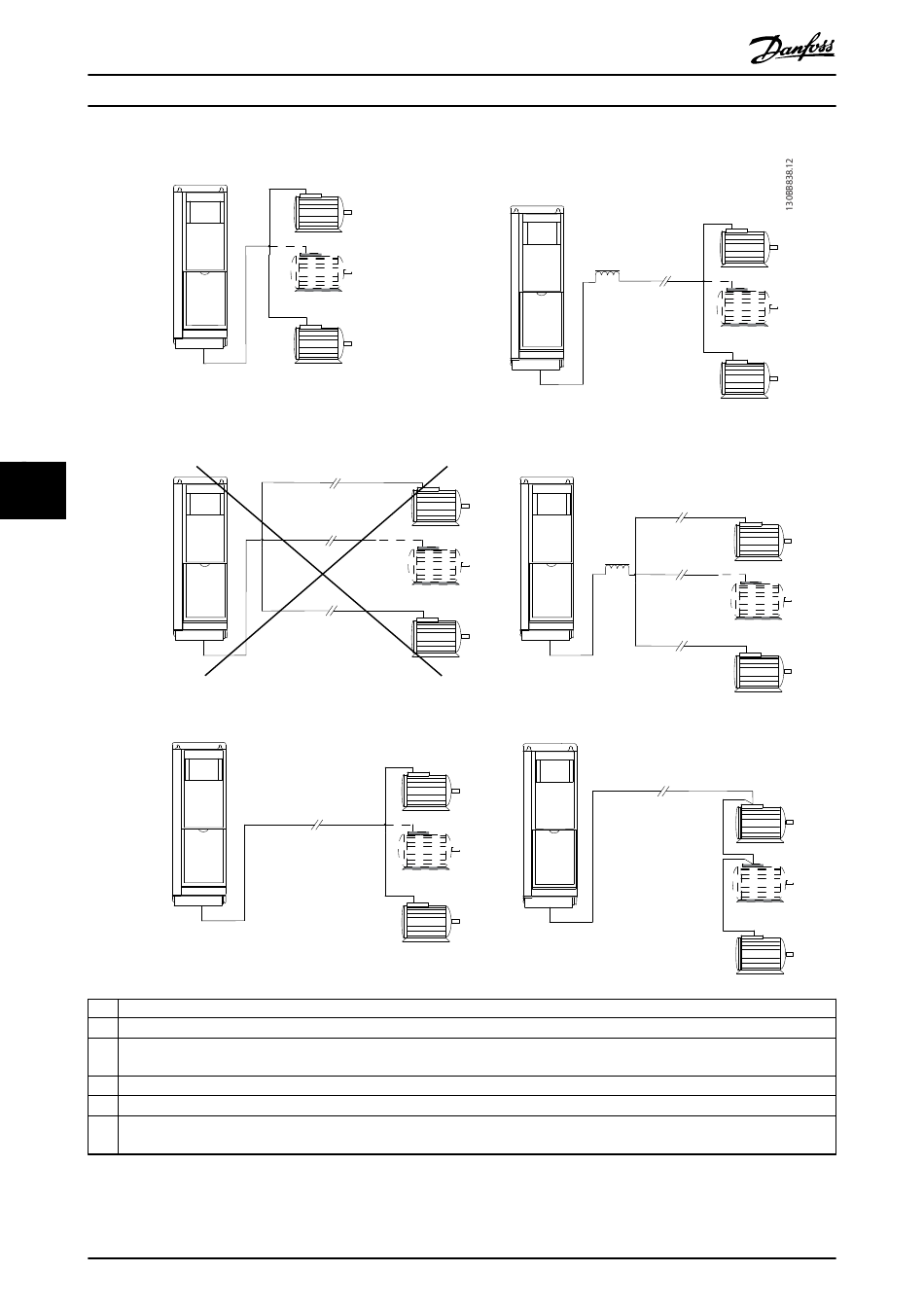

Illustration 7.10 Different Parallel Connections of Motors
46
VLT® AutomationDrive FC 361
a
b
c
Danfoss A/S © 03/2019 All rights reserved.
d
e
f
MG06K102
