8.3 Wiring Configurations for Start/Stop

FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 8.5 Wiring Configuration for Start/Stop Command with
Safe Torque Off
74
VLT® AQUA Drive FC 202
Parameters
Function Setting
Parameter 6-12 4 mA*
Terminal 53 Low
Current
Parameter 6-13 20 mA*
+
Terminal 53
High Current
Parameter 6-14 0 RPM
-
Terminal 53 Low
4 - 20mA
Ref./Feedb.
Value
Parameter 6-15 1500 RPM
Terminal 53
High Ref./Feedb.
Value
*=Default value
Notes/comments:
Parameters
Function Setting
Parameter 5-10 T [8] Start*
erminal 18
Digital Input
Parameter 5-12 T [0] No
erminal 27 operation
Digital Input
Parameter 5-19 T [1] Safe
erminal 37 Torque Off
Digital Input Alarm
*=Default value
Notes/comments:
If parameter 5-12 Terminal 27
Digital Input is set to [0] No
operation, a jumper wire to
terminal 27 is not needed.
Danfoss A/S © 09/2018 All rights reserved.
Speed
Start/Stop (18)

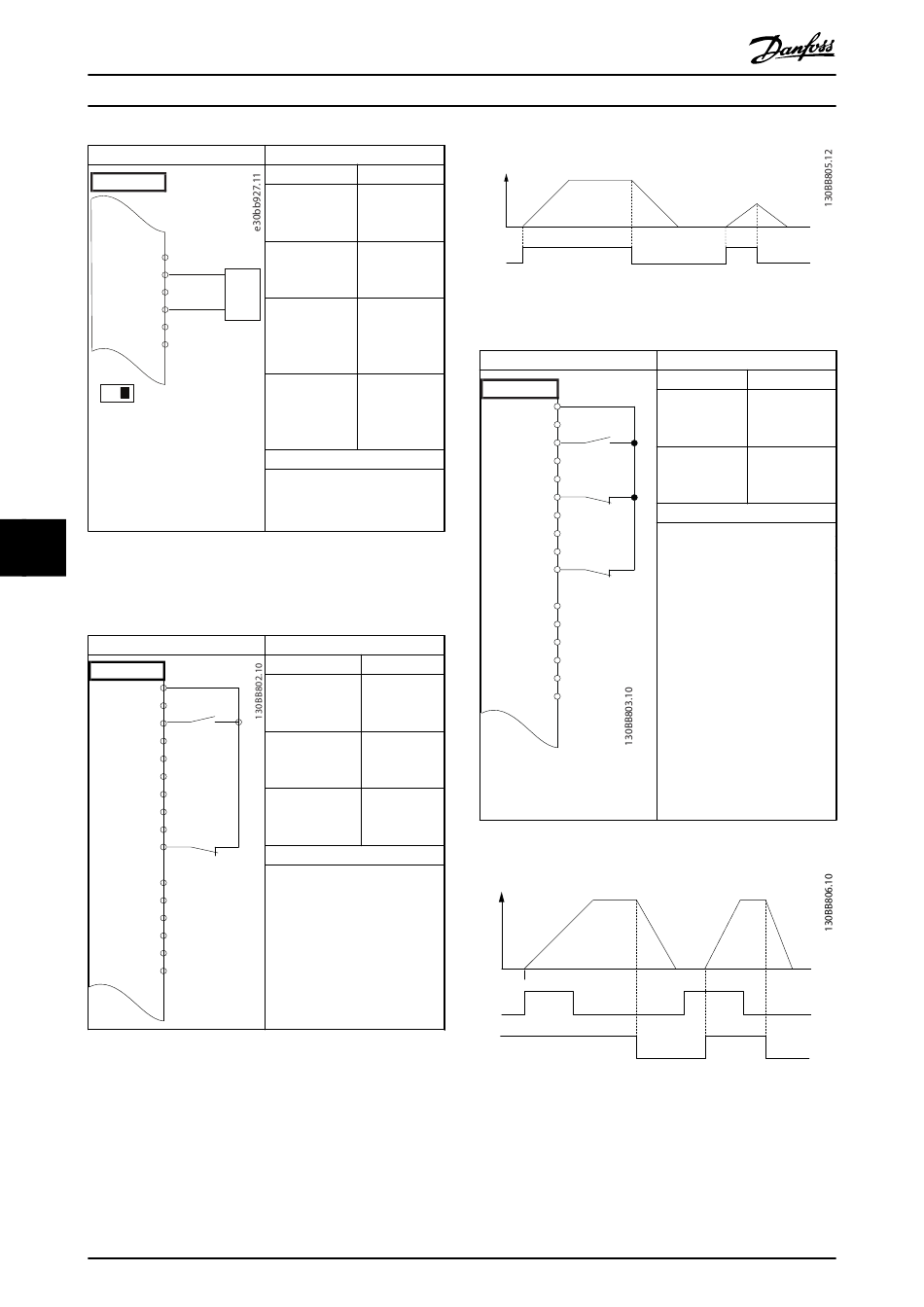

Illustration 8.1 Start/Stop with Safe Torque Off
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 8.6 Wiring Configuration for Pulse Start/Stop
Speed
Latched Start (18)
Stop Inverse (27)
Illustration 8.2 Latched Start/Stop Inverse
Parameters
Function Setting
Parameter 5-10 [9] Latched
Terminal 18 Start
Digital Input
Parameter 5-12 [6] Stop Inverse
Terminal 27
Digital Input
*=Default value
Notes/comments:
If parameter 5-12 Terminal 27
Digital Input is set to [0] No
operation, a jumper wire to
terminal 27 is not needed.
MG21A502
