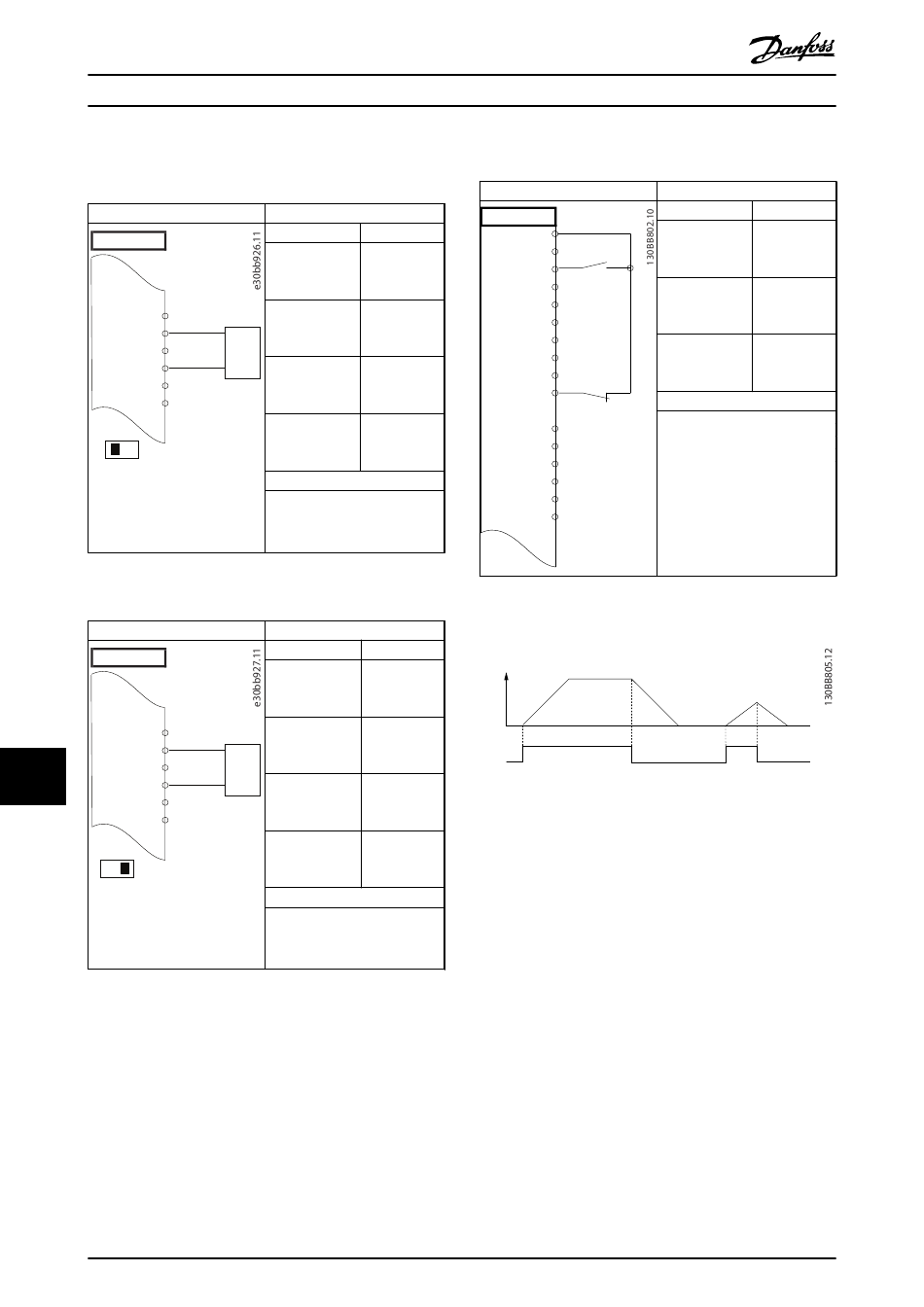

12.2 Wiring Configurations for Analog
Speed Reference
FC
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
U - I
A53
Table 12.3 Wiring Configuration for Analog Speed Reference
(Voltage)
FC
+10 V 50
A IN
53
12 12
A IN
54
COM
55
A OUT
42
COM
39
U - I
A53
Table 12.4 Wiring Configuration for Analog Speed Reference
(Current)
110
VLT® AQUA Drive FC 202
Parameters
Function Setting
Parameter 6-10 T 0.07 V*
erminal 53 Low
Voltage
Parameter 6-11 T 10 V*
+ erminal 53 High
Voltage
Parameter 6-14 T 0 RPM
-
erminal 53 Low
0 – 10 V
Ref./Feedb. Value
Parameter 6-15 T 1500 RPM
erminal 53 High
Ref./Feedb. Value
*=Default value
Notes/comments:
Parameters
Function Setting
Parameter 6-12 T 4 mA*
erminal 53 Low
Current
Parameter 6-13 T 20 mA*
+
erminal 53 High
Current
Parameter 6-14 T 0 RPM
-
erminal 53 Low
4 - 20mA
Ref./Feedb. Value
Parameter 6-15 T 1500 RPM
erminal 53 High
Ref./Feedb. Value
*=Default value
Notes/comments:
Danfoss A/S © 05/2017 All rights reserved.

12.3 Wiring Configurations for Start/Stop

FC
+24 V 12
+24 V 13
18
D IN
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 12.5 Wiring Configuration for Start/Stop Command with
Safe Torque Off
Speed
Start/Stop (18)
Illustration 12.1 Start/Stop with Safe Torque Off
Parameters
Function Setting
Parameter 5-10 T [8] Start*
erminal 18
Digital Input
Parameter 5-12 T [0] No
erminal 27 operation
Digital Input
Parameter 5-19 T [1] Safe
erminal 37 Safe Torque Off
Stop Alarm
*=Default value
Notes/comments:
If parameter 5-12 Terminal 27
Digital Input is set to [0] No
operation, a jumper wire to
terminal 27 is not needed.
