Electrical Installation Con...
Terminal Parameter
61 –
68 (+) Parameter
group 8-3* FC
Port Settings
69 (-) Parameter
group 8-3* FC
Port Settings
Table 7.2 Serial Communication Terminal Descriptions
Terminal Parameter
12, 13 – +24 V DC
18 Parameter 5-10 [8] Start
Terminal 18
Digital Input
19 Parameter 5-11
Terminal 19 Reversing
Digital Input
32 Parameter 5-14
Terminal 32 operation
Digital Input
33 Parameter 5-15
Terminal 33 operation
Digital Input
27 Parameter 5-12 [2] Coast
Terminal 27
Digital Input
29 Parameter 5-13 [14] JOG
Terminal 29
Digital Input
20 –
Table 7.3 Digital Input/Output Terminal Descriptions
MG06K102
Design Guide
Default Description
setting
– Integrated RC-filter to
connect cable shield
if there are EMC
problems.
– RS485 interface. A
switch (BUS TER.) is
provided on the
control card for bus
–
termination
resistance.
Default Description
setting
24 V DC supply
voltage for digital
inputs and external
transducers.
Maximum output
current 200 mA for all
24 V loads.
Digital inputs.
[10]
[0] No
[0] No
For digital input or
inverse output. Default
setting is input.
– Common for digital
inputs and 0 V
potential for 24 V
supply.
Danfoss A/S © 03/2019 All rights reserved.
Terminal Parameter Default
39 –
Parameter 6-50
42
Terminal 42 operation
Output
50 – +10 V DC
53 Parameter Reference
group 6-1*
Analog Input 1
54 Parameter Feedback
group 6-2*
Analog Input 2
55 –
Table 7.4 Analog Input/Output Terminal Descriptions
Relay terminals
RELAY 1 RELAY 2
01 02 03 04 05 06

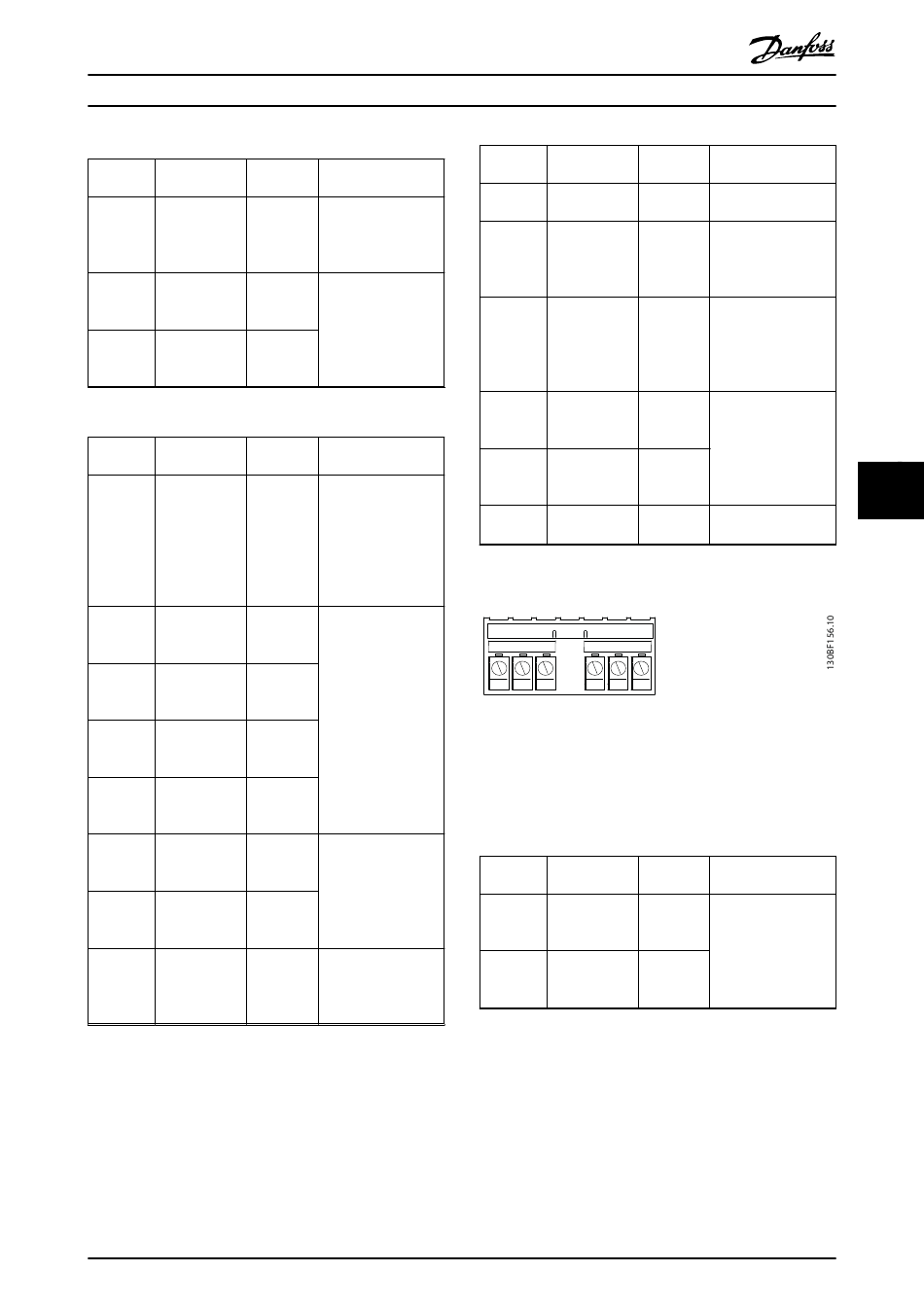

Illustration 7.8 Relay 1 and Relay 2 Terminals
•
Relay 1 and relay 2. Location depends on drive
configuration. See the operating guide.
•
Terminals on built-in optional equipment. See the
instructions provided with the equipment option.
Terminal Parameter Default
01, 02, 03 Parameter 5-40
Function Relay operation
[0]
04, 05, 06 Parameter 5-40
Function Relay operation
[1]
Table 7.5 Relay Terminal Descriptions
Description
setting
– Common for analog
output.
[0] No
Programmable analog
output. 0–20 mA or
4–20 mA at a
maximum of 500 Ω.
10 V DC analog
supply voltage for
potentiometer or
thermistor. 15 mA
maximum.
Analog input. For
voltage or current.
Switches A53 and
A54 select mA or V.
– Common for analog
input.
Description
setting
[0] No Form C relay output.
For AC or DC voltage
and resistive or
inductive loads.
[0] No
43
