7.3.2 Personal Computer Connection
To control the drive from a PC, install the MCT 10 Set-up
Software. The PC is connected via a standard (host/device)
USB cable, or via the RS485 interface. For more information
on RS485, see chapter 11.3 RS485 Installation and Set-up.
USB is a universal serial bus utilizing 4 shielded wires with
ground pin 4 connected to the shield in the PC USB port.
All standard PCs are manufactured without galvanic
isolation in the USB port.
To prevent damage to the USB host controller through the
shield of the USB cable, follow the ground recommen-
dations described in the operating guide.
When connecting the PC to the drive through a USB cable,
Danfoss recommends using a USB isolator with galvanic
isolation to protect the PC USB host controller from
ground potential differences. It is also recommended not
to use a PC power cable with a ground plug when the PC
is connected to the drive through a USB cable. These
recommendations reduce the ground potential difference,
but does not eliminate all potential differences due to the
ground and shield connected in the PC USB port.

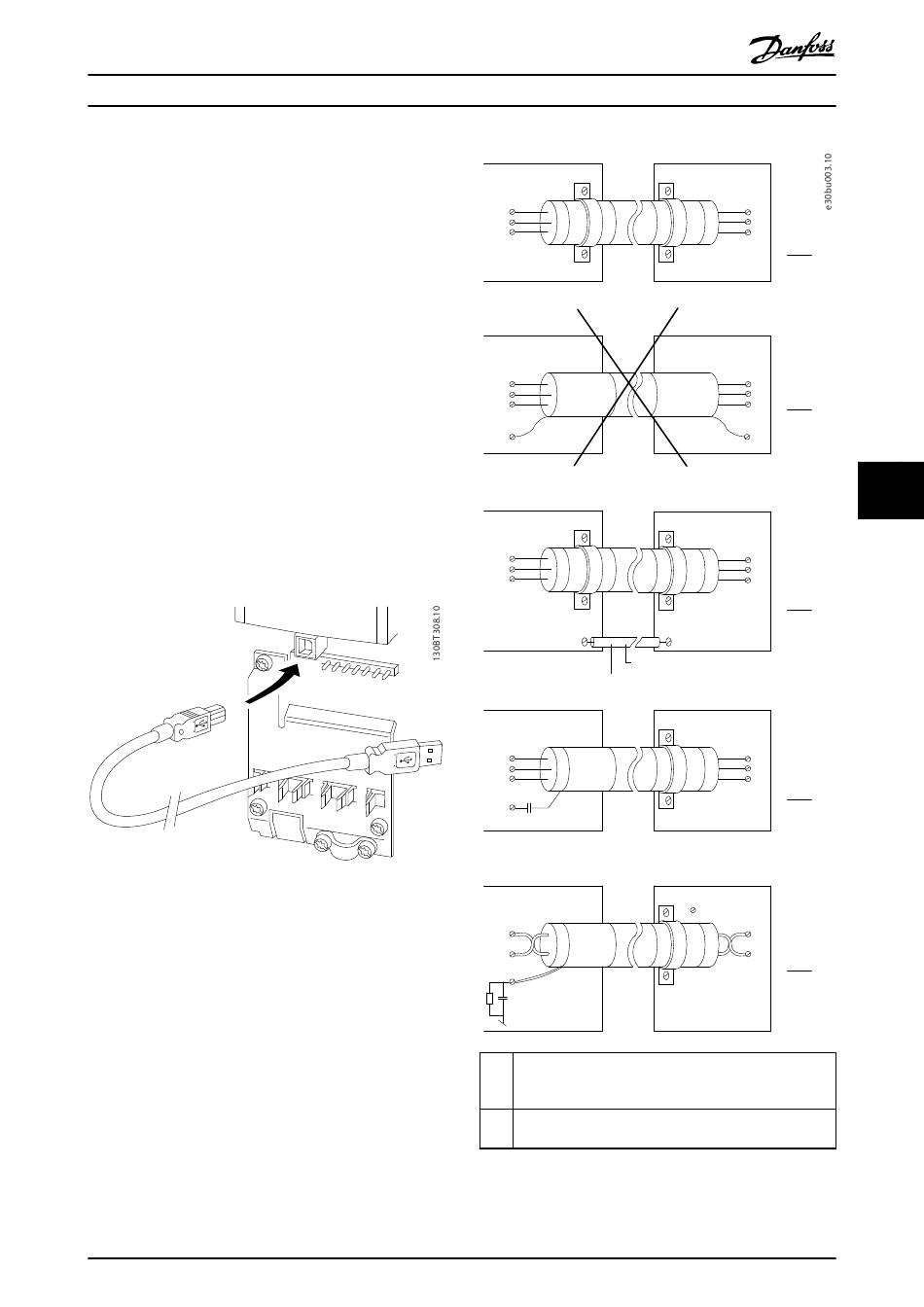

Illustration 7.4 USB Connection

7.4 Control Wiring and Terminals

Control cables must be shielded and the shield must be
connected with a cable clamp at both ends to the metal
cabinet of the unit.
For correct grounding of control cables, see Illustration 7.5.
MG06K102
Design Guide
PLC etc.
PLC etc.
Ground
PLC etc.
PLC etc.
Ground
100 nF
69
68
61
1 Control cables and serial communication cables must be
fitted with cable clamps at both ends to ensure the best
possible electrical contact.
2 Do not use twisted cable ends (pigtails). They increase the
shield impedance at high frequencies.
Danfoss A/S © 03/2019 All rights reserved.
Ground
Ground
Ground
Ground Ground
Ground
Ground
Minimum 16 mm 2
Equalizing cable
Ground
Drive
Ground
Drive
1
Drive
2
7
Drive
3
Drive
4
Drive
68
69
5
41
7
