Having a short interval means that there will be more frequent
˿
interval data packets, so the storage will fill up faster. A long interval
means fewer packets and therefore you can leave the sensor alone for
longer periods between your data downloads.
Always check back to this screen after you have changed all other set-
tings to get the most accurate information on how often your sensor will
need to have information downloaded from it.
A few things can cause this screen to be incorrect: if you're using a vir-
tual connection, or if the sensor setup is different now from what it was
when the sensor started storing its current batch of data. In the latter
case, the green status bar will be a better indicator of storage capacity.
Download
Access the Download screen by clicking the Download button on the
Data screen.
Downloading stored detection data
1 Type a name for your download in the Name text field.
2 If you want all the data currently on the sensor, keep the Download
all of the data checkbox checked. If you want only part of the data,
uncheck that checkbox, which will make the Begin: and End: fields
editable. Set those to the desired begin and end date/times for your
download.

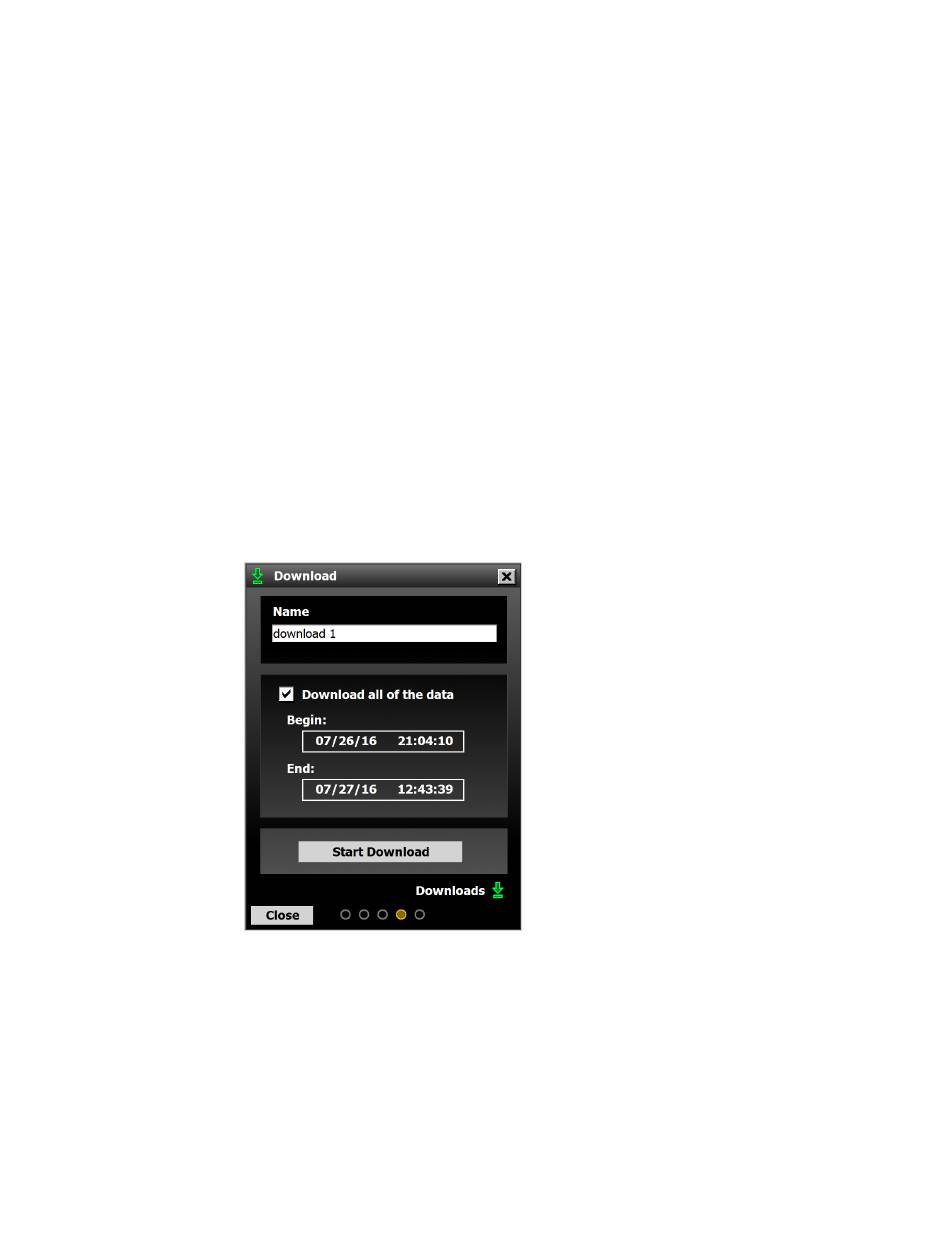

Figure 87. Download screen
Chapter 9: Setting Up and Downloading Sensor Data
Note. You can view a
list of previous data
downloads by clicking
the green Downloads
arrow in the lower
right corner. A similar
button can be found
in the corner of the
Data button on the
main SSMHD screen.
