Viewing Sidebars - Wavetronix SmartSensor HD User Manual

Viewing sidebars

The sidebars appear on either side of the screen and give information
about the lanes and shoulder. Click the sidebar button to cycle through
the six sidebar options.
Setting Description
>>
No sidebar shown.
(off)
1
Shows the lanes that
(Automatic have been automatically
configuration)
configured by the sensor,
in blue.
2
Shows the lanes that have
(Saved been saved, in black.
configuration)

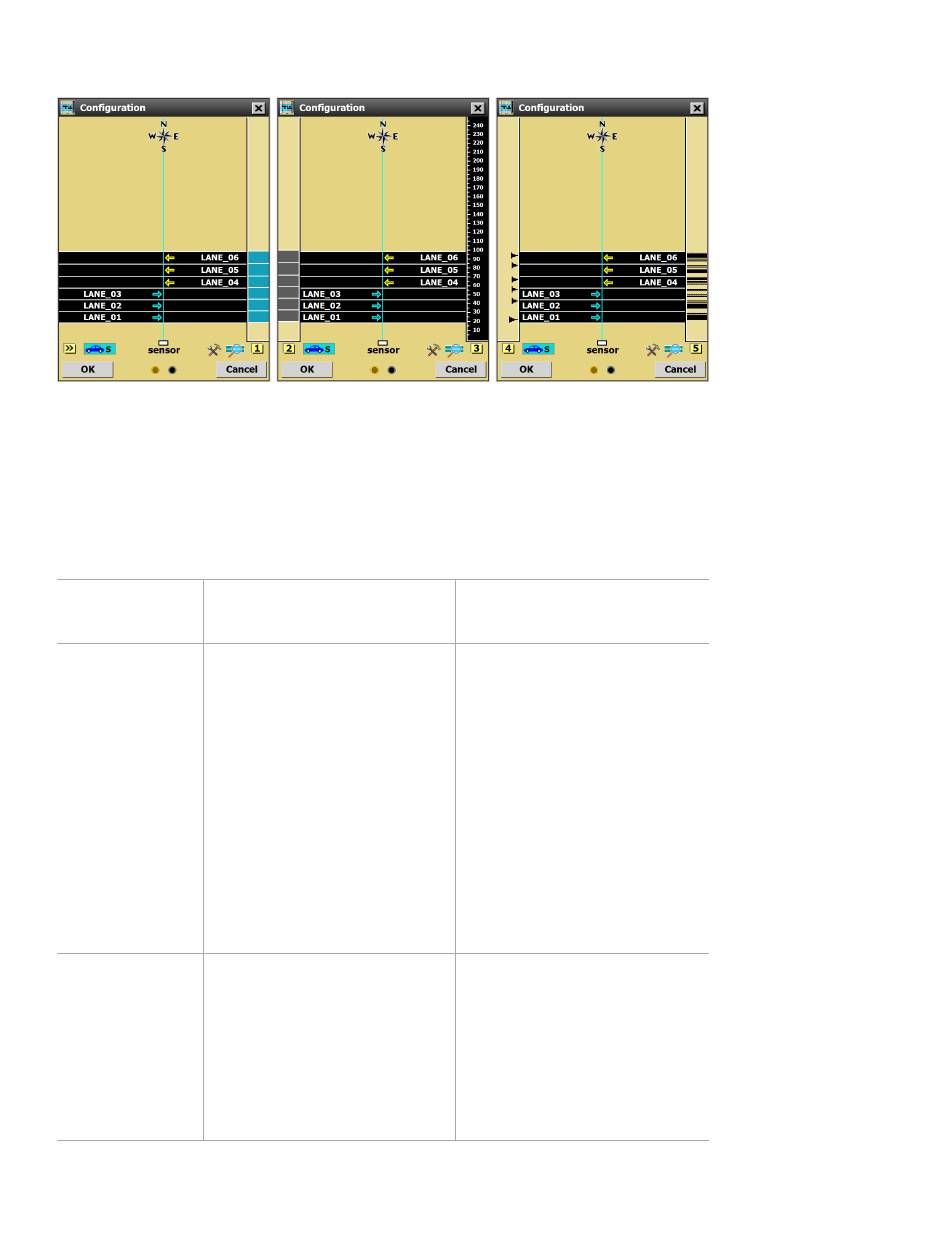

Figure 61. Sidebar options
Details
N/A
Use this to save only certain
automatically configured
lanes to the sensor, as
discussed under Automatic
Configuration. Or use the
automatically configured
lanes as a reference—to
see where the software has
calculated that the lanes
are—while you're manually
configuring or adjusting
lanes.
Use the lanes currently
saved to the sensor as a
reference—to see where
the lanes have previously
been saved at—while you're
manually configuring or
adjusting lanes.
