Using the Saved Lane sidebar window

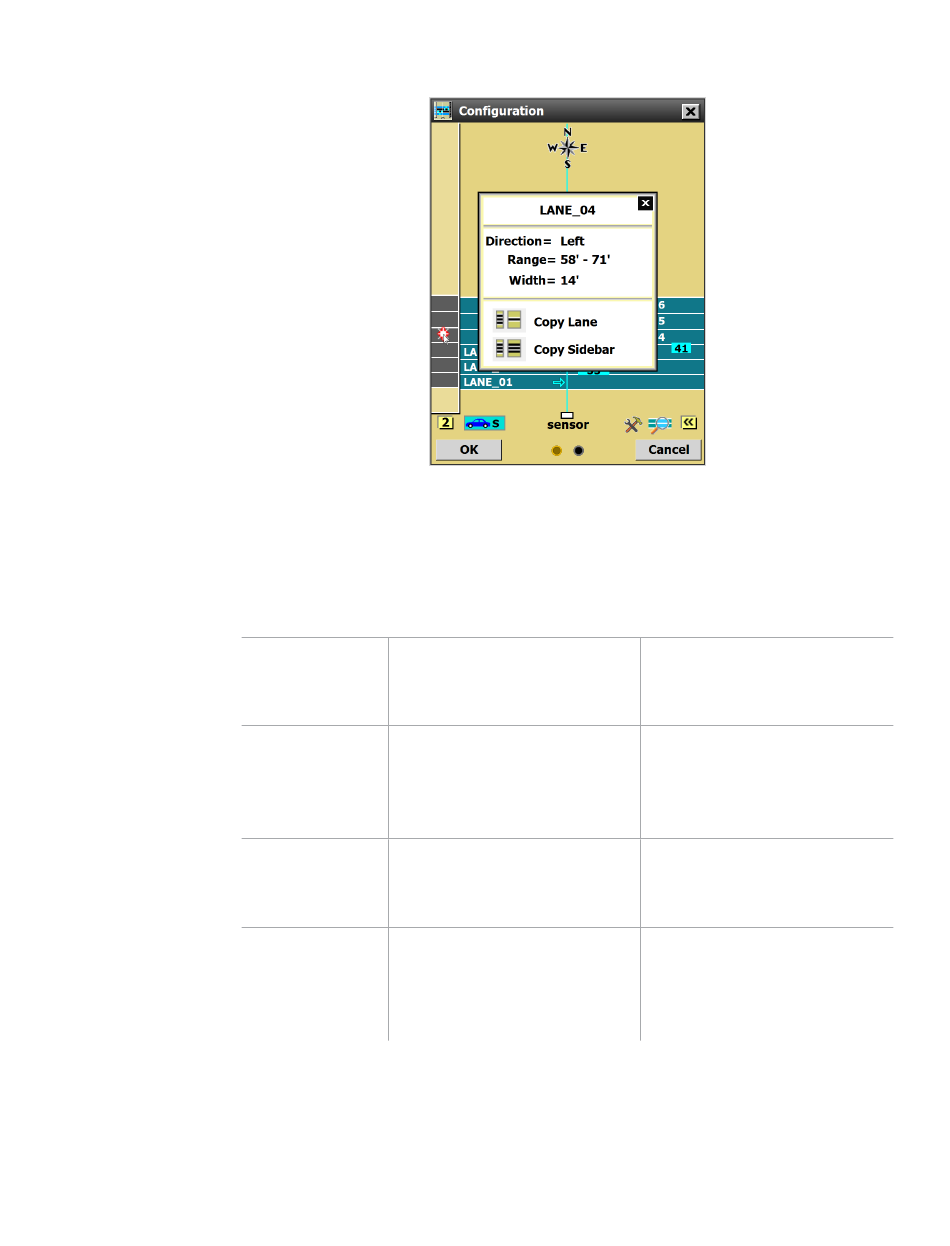

Figure 63. Sidebar 2 (saved configuration) window
When sidebar 2 (saved configuration) is open, click on one of the lanes
in the sidebar to open this window.
Setting Description
Direction Shows the direction of
traffic, as it's been detected
by the sensor.
Range &
Shows the size and
Width
placement of the lanes
(Range refers to the
distance from the sensor).
Copy Lane
Saves the lane you clicked
on to the edit area.
Copy Sidebar
Saves all the lanes currently
shown in the sidebar to the
edit area.
Sidebar 2 shoulder area window
If you click the shoulder area, instead of a lane, it will open a window
with just the range/width of the shoulder and the Copy Sidebar option.
Details
Can't be changed here, but
can be changed in the Lane
window.
Can't be changed here, but
can be changed in the Lane
window.
An automatic lane will
appear blue; a saved lane
turns black.
This is the recommended
method for saving
automatically configured
lanes to your configuration.
