Wavetronix SmartSensor HD User Manual page 83

Note. Logging interval
data is useful for
verifying your sensor
setup—just log a few
intervals then compare
with video or other
recorded data. Or you
can use the feature at
test sites, where you
just need to examine
a few intervals' worth
of detections.
Note. The Lanes and
Approaches tabs let
you view the detected
data in real time.
However, which tab
you have open doesn't
affect logging.
Note. Keep this
screen open while you
log—if you close it,
the logging will stop!
82
SmartSensor HD User Guide
•
Access the Interval Data screen by clicking the Interval Data button on
the Data screen. This screen lets you log interval data (data collected
about all detections in a given interval of time) for both lanes and
approaches.

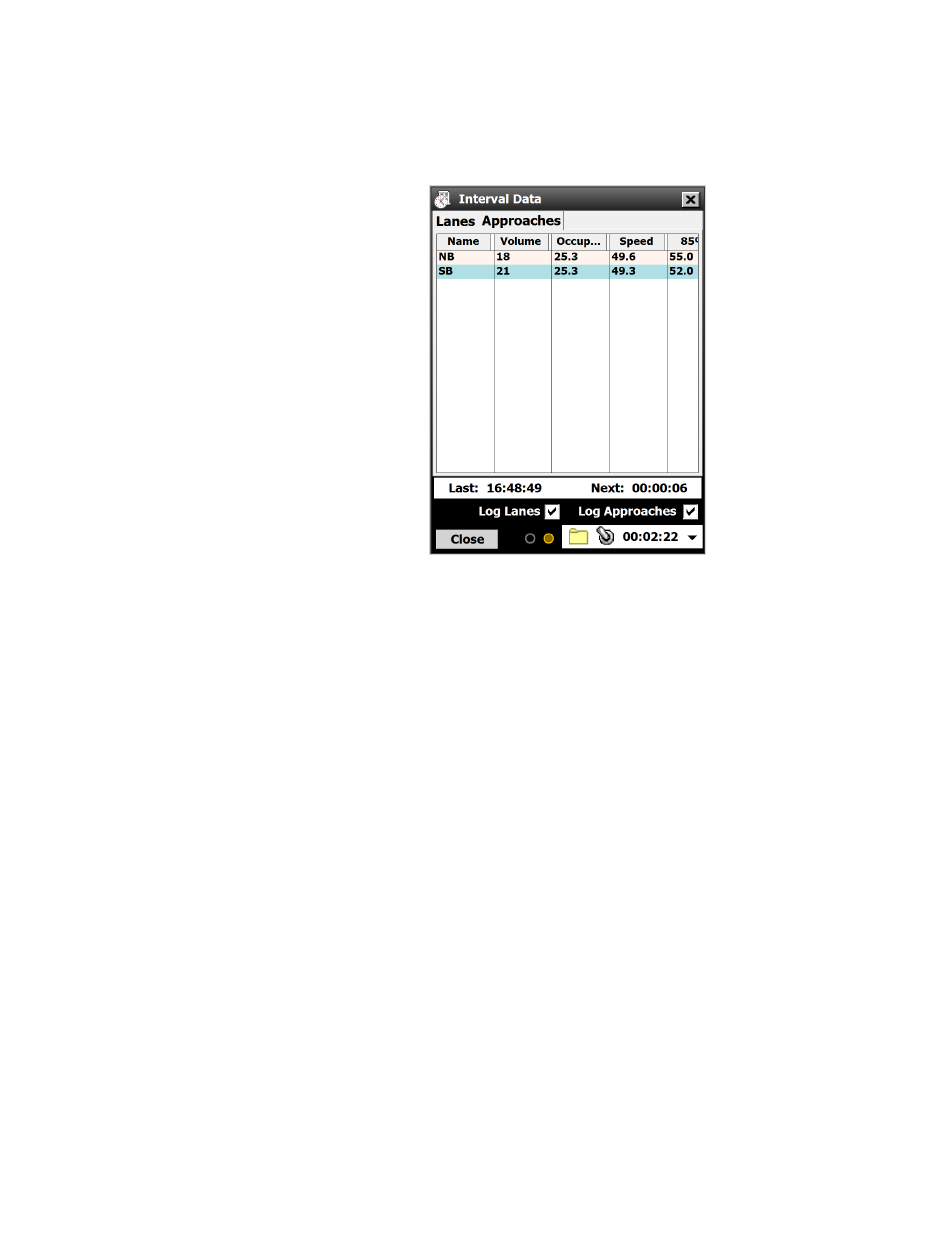

Figure 85. Interval Data screen, Approaches tab
Logging interval data
1 In the lower right corner of the Interval Data screen, next to the
word "Logging, " click the upward-pointing arrow. The Logging area
will appear, as seen above.
2
Choose where to store the log file by clicking the folder icon; the Log
File window will open. If you want to change the location shown,
click the magnifying glass icon next to the file name.
3 Click OK when done.
4 Click the checkboxes of what you want to log: Lanes, Approaches,
or both. If you don't click either checkbox, the resulting log file will
be blank.
5
To begin logging, click the switch icon. When you're done, click it
again to stop.
6
To view the file, navigate to it on your computer. The file that was
created will be a .log file that can be opened in a text editor.
Interval data
The Lanes and Approaches screens show the following data about each
interval that passes (they don't all fit on the screen, so click and drag
from side to side to show more data):
