Setting Description
Show/Hide
Shows or hides a compass
Compass that shows which direction
the sensor is pointing. This
is completely user-set; the
information comes from
the Orientation field under
Settings, so if you didn't
change that setting, this will
default to north. You can
change the orientation by
clicking on the compass.
Show/Hide
Shows or hides the arrow
Alignment
used for indicating the
alignment of the sensor.

Using the Automatic Lane window

Click an automatic lane in the edit area to open this window.
Setting Description
Range &
Shows the size and
Width placement of the lanes
(Range refers to the
distance from the sensor).

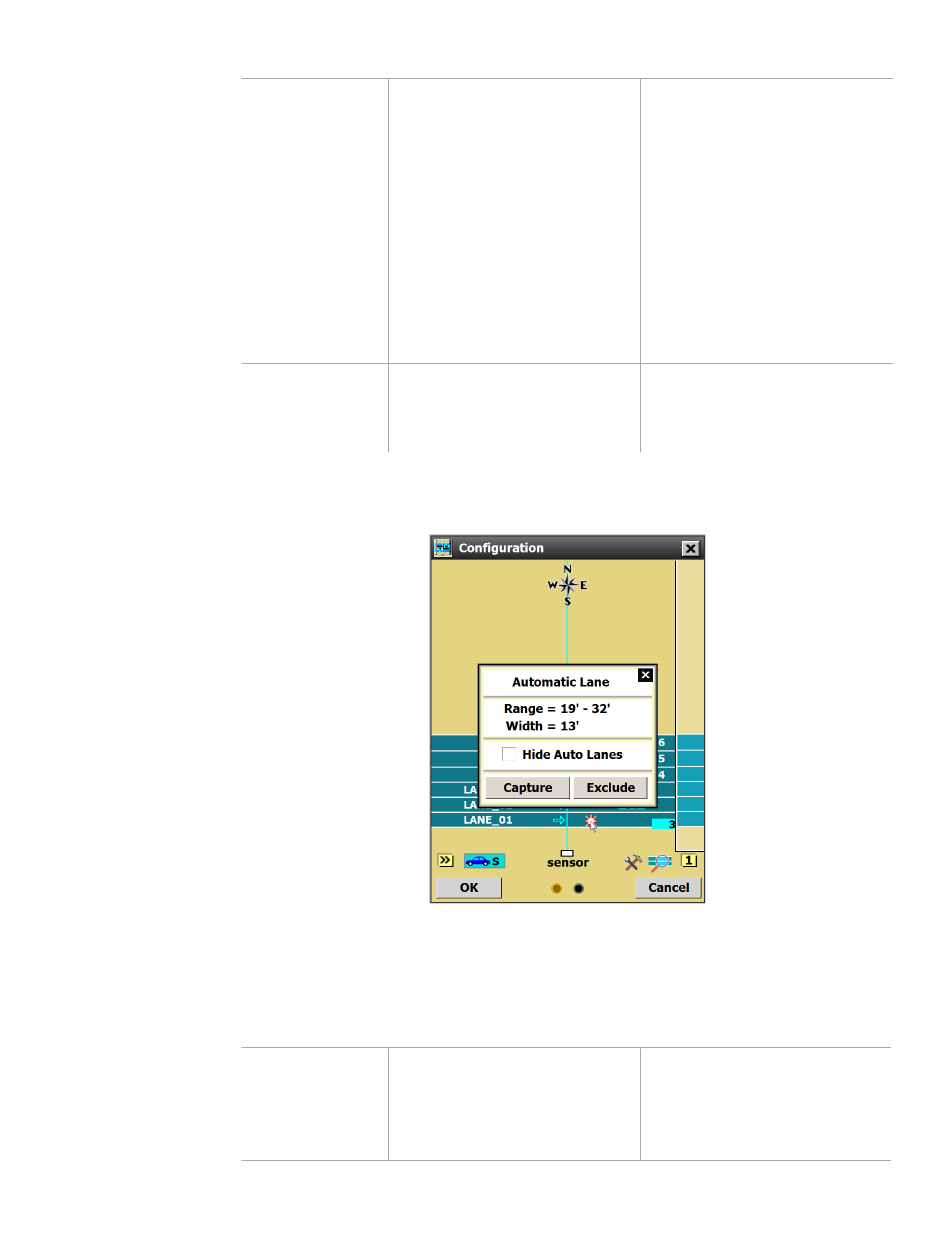

Figure 67. Automatic lane window
Details
This setting is for your
information and doesn't
affect sensor operation.
See the Alignment section
earlier in this chapter for
more information.
Details
Can't be changed.
