Wavetronix SmartSensor HD User Manual page 82

5
Repeat for all desired lanes.
6
To remove a lane from your approach, highlight it in the approach
list, and click the left arrow to move the lane back to the lanes list.
7 When you're done, click OK. Repeat steps 1–6 as needed.
8 To remove an approach, highlight it and click the – button at the top
of the Approaches area.
Using direction bins
To enable the use of direction bins, click the Direction checkbox in the
lower righthand corner of the Definitions screen.
Using the Speed = 0 option
If during an interval, the volume is zero (meaning no cars were
detected), SSMHD will report the average speed of the last interval. If
you would like the intervals that are reporting zero volume to report
speeds as zero, simply check the If volume = 0, speed = 0 checkbox.
Interval Data

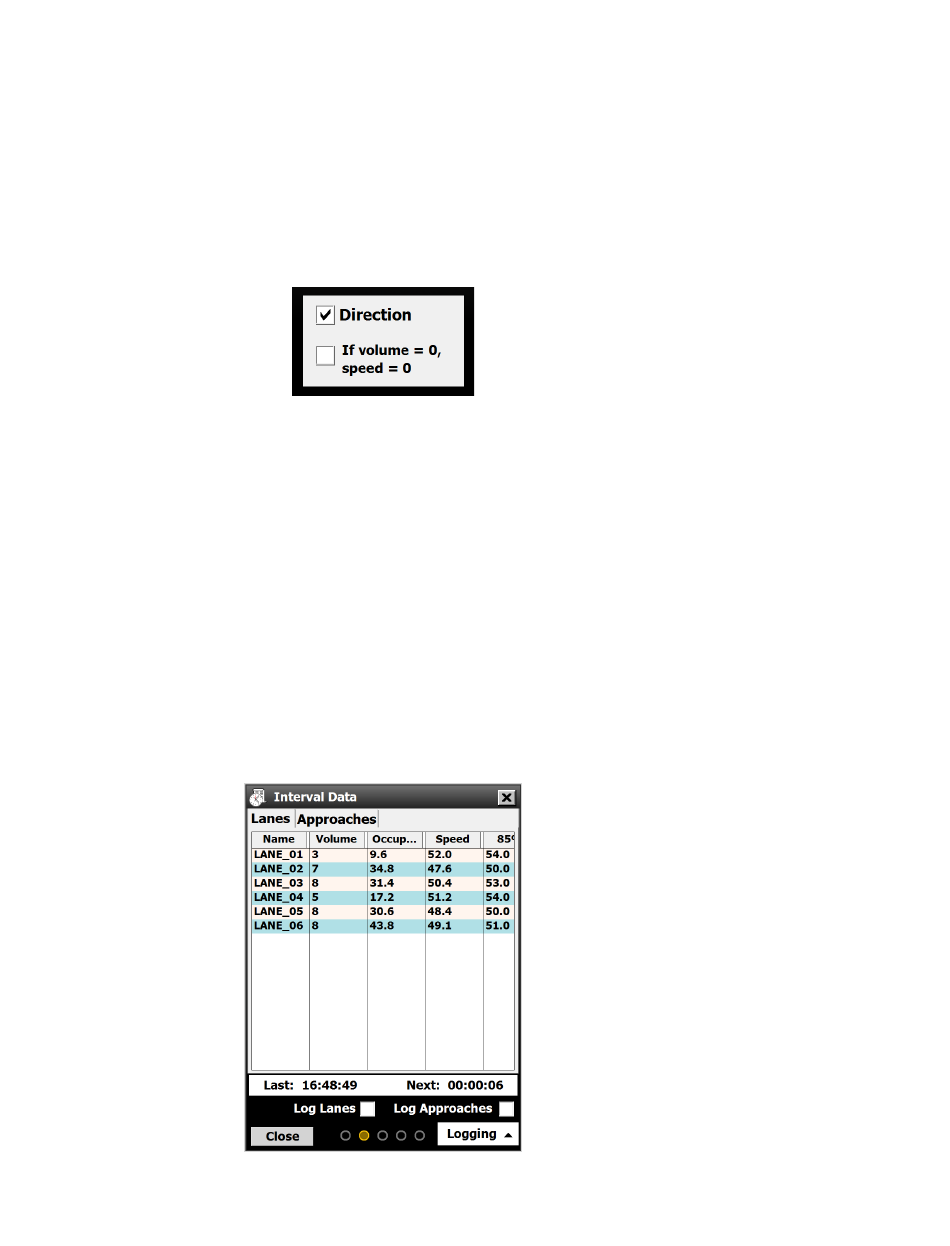

Figure 84. Interval Data screen, Lanes tab
Figure 83. Direction checkbox
Chapter 9: Setting Up and Downloading Sensor Data
Note. A lane can
belong to more than
one approach.
Definition. There are
two direction bins:
Right and Wrong.
Vehicles are classified
depending on whether
they are traveling
the direction the
lane is configured.
For bi-directional
lanes, traffic moving
from left to right
will be placed in the
Right bin, and traffic
moving from right
to left will be placed
in the Wrong bin.
81
•
