Troubleshooting a connection

Some or all of the following may help you troubleshoot:
Make sure that all power and communication wiring is correct.
˿
Check the port settings (baud rate, port ID).
˿
Make sure the sensor ID is correct.
˿
Make sure the terminal server is configured properly.
˿
If a failure occurs repeatedly, contact support@wavetronix.com.
˿

Advanced communication tools

Once you've made a connection, the Connect button of the main screen
should now be animated, with arrows moving past each other, and it
should now say "Connected."

Viewing connection information

1 Click Connected.
2 This will bring up the Connection Info window, with information
about the connection status, device (subnet and sensor ID), speed in
bps, and duration.

Disconnecting from a sensor

1 Click Connected.
2 This will bring up the Connection Info window. Click Disconnect.

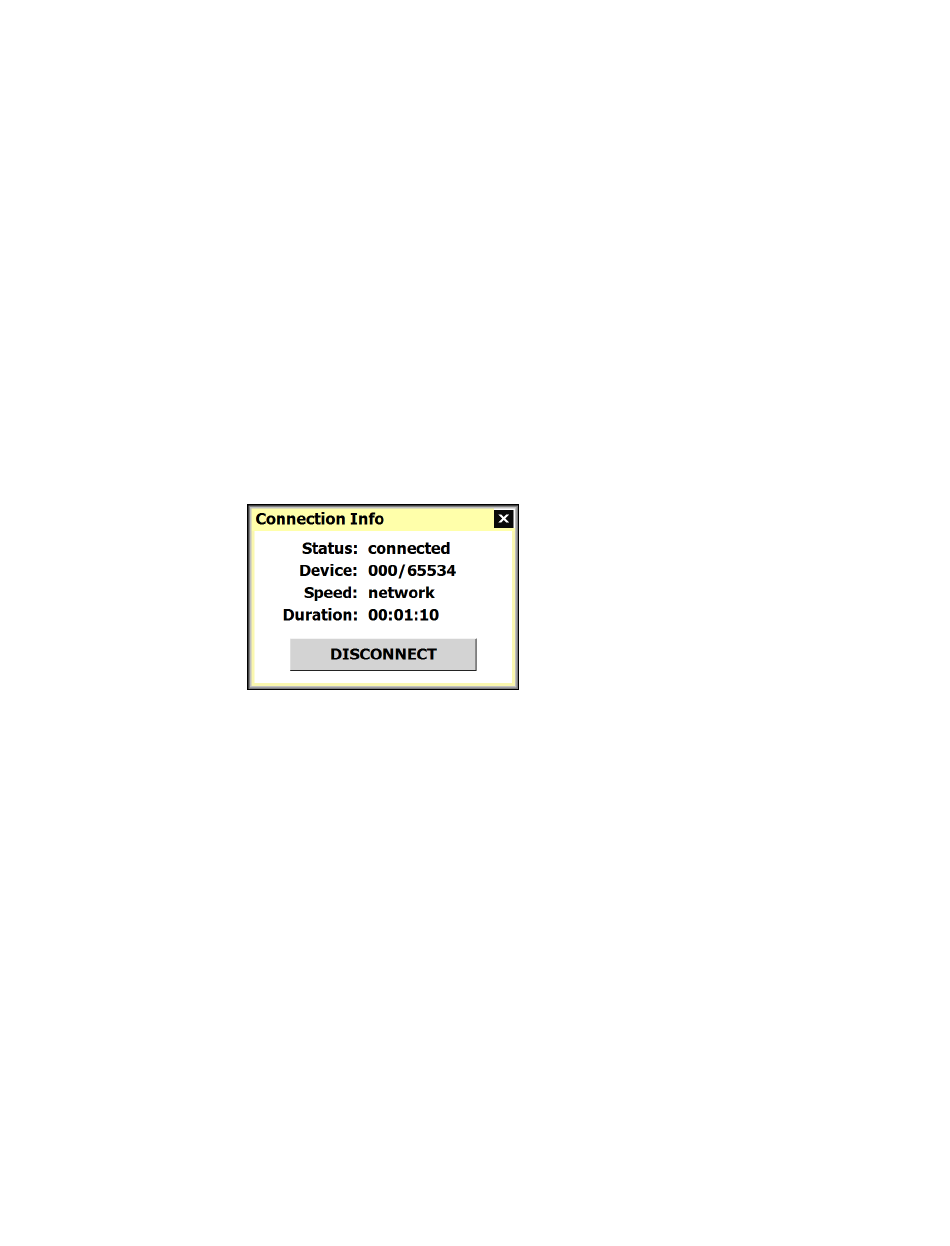

Figure 37. Connection Info window
Chapter 5: Connecting to a Sensor
