16
SmartSensor HD User Guide
•
Attaching the sensor to the mount
1
Align the bolts on the sensor's backplate with the holes in the mount.
2
Make sure the large 10-pin connector at the bottom of the unit is
pointing towards the ground.
3
Push the bolts through the mount holes.
4
Place the lock washers on the bolts, thread on the nuts and tighten.
Aligning the sensor to the roadway
1
Tilt the sensor down so the front is aimed at the center of the detec-
tion area.

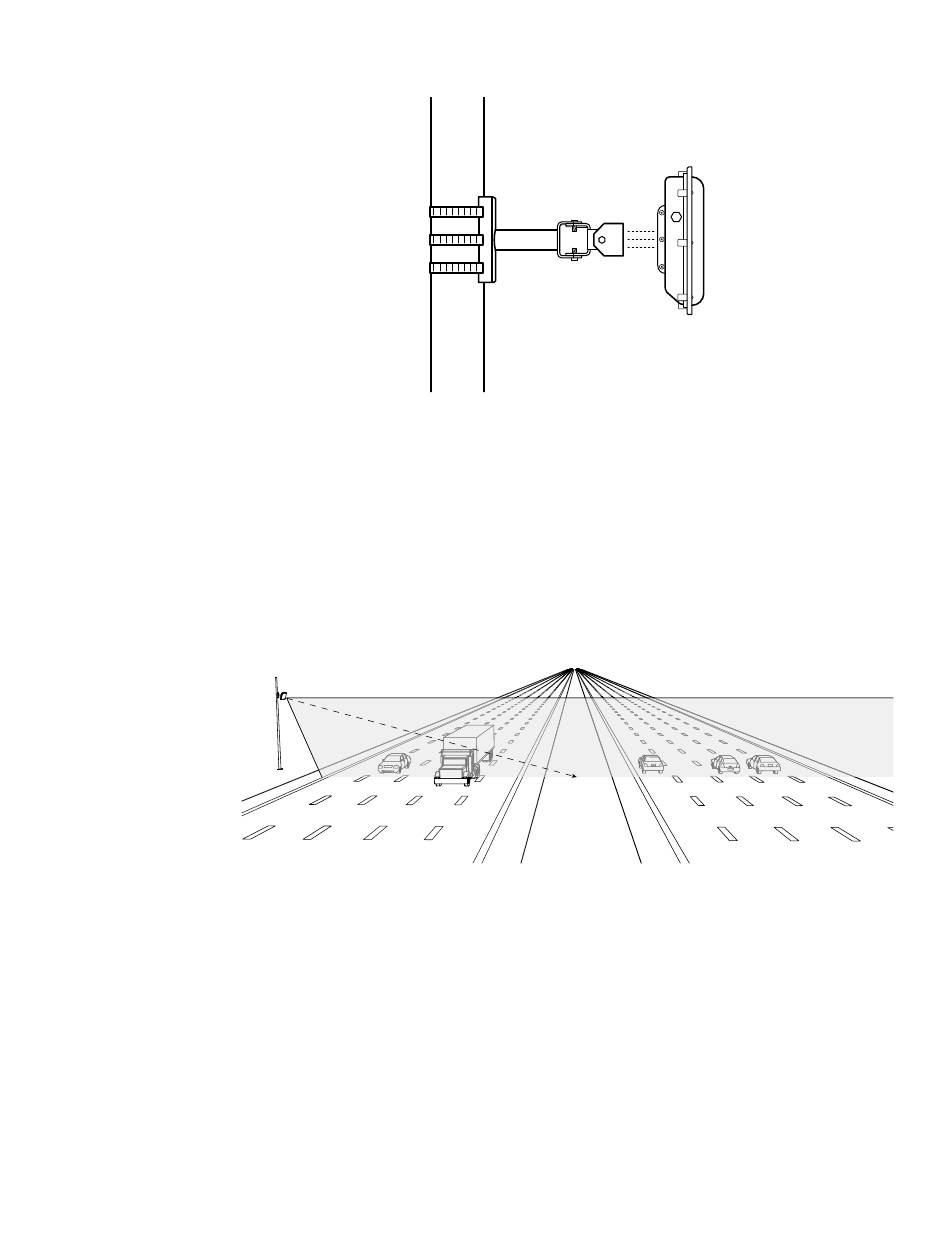

Figure 7. Attaching the sensor
Figure 8. Up-and-down positioning
