Changing Data Tab Settings - Wavetronix SmartSensor HD User Manual

Setting Description
Legacy Protocols
SS105
Sets the sensor to use the
SS105 communication
protocol.
This doesn't turn off native
SSHD protocol.
RTMS (X3) Sets the sensor to use the
RTMS communication
protocol (although only
a portion of the RTMS
commands are emulated).
This doesn't turn off native
SSHD protocol.

Changing Data tab settings

Setting Description
Max Vehicle
Lets you set your maximum
Length
vehicle length; any detected
vehicle that exceeds this
length is reported as being
only this long.
Details
Click this checkbox if
your backend system was
originally configured for
a SmartSensor 105 and is
still expecting data in SS105
protocol.
Click this checkbox if your
controller or backend
system was originally
configured for an RTMS
model X3 sensor and is still
expecting data in RTMS
protocol.

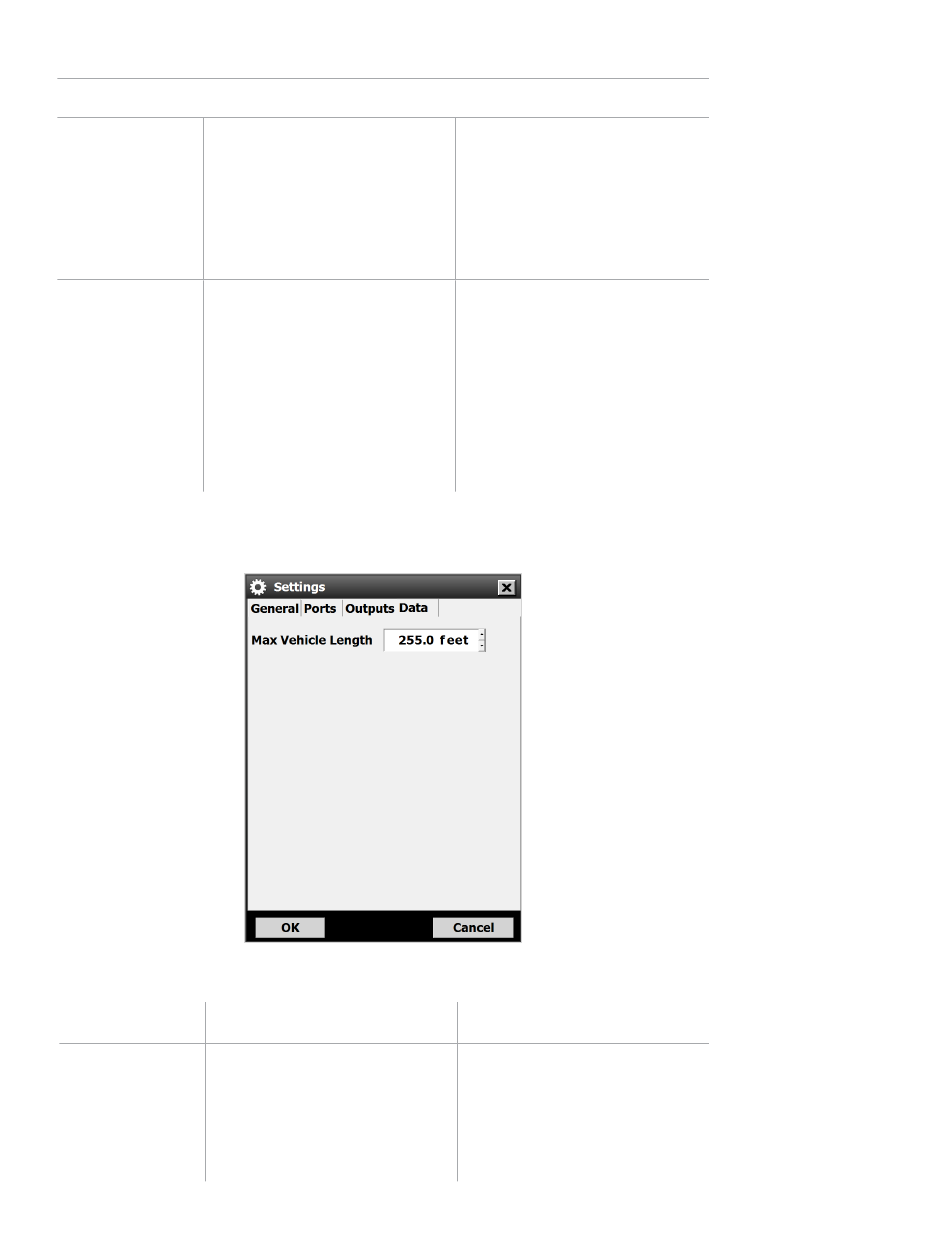

Figure 49. Data tab
Details
Change this if your roads
have a max vehicle length.
Note. For a
SmartSensor HD
in an RTMS-based
system: if your system
is set up to poll the
sensor, turn on the
RTMS protocol so the
sensor can respond
to RTMS commands.
If your system is
simply listening for
data pushes from the
sensor, don't turn on
the RTMS protocol.
