Definition. A class bin
is a classification of
a vehicle based on its
length (usually a range
of lengths); which
length bin a detection
falls into is part of the
data collected about it.
For interval data, the
sensor records how
many detections fell
into each bin over the
course of the interval.
Note. The first class
bin created defaults
to 120; it is the
maximum length
value and cannot
be changed. This
bin can't be deleted
until all the others
are deleted first.
Definition. An
approach is a grouping
of lanes used in
data collection; they
let you collect per
vehicle–based stats
you couldn't get
otherwise, such as
85th percentile. Be
aware that adding
approaches will
increase the data
report size, meaning
the sensor can store
fewer intervals in
onboard storage.
80
SmartSensor HD User Guide
•
Creating, adjusting and deleting class bins
1 To create a class bin, press the + button at the bottom of the Class
area. Each line is one bin.
2 To adjust the parameters of a bin, click on it and use the + and – but-
tons to change the value, or type a new value in. The number that
you see is the maximum length for that bin. For instance, in the
image above, the highlighted bin is for vehicles that are between 31
and 50 feet long.
3 To delete a bin, highlight it and click the – button at the top of the
Class area.
Creating, adjusting and deleting approaches
1 To create a new approach, click the + button at the bottom of the
Approaches area. The Approaches window will appear.
2 Type a name for your new approach in the Name field at the top.
3
From the lanes list on the left, select a lane you want in your new
approach.
4
Click the right arrow to move it to the approach list on the right.

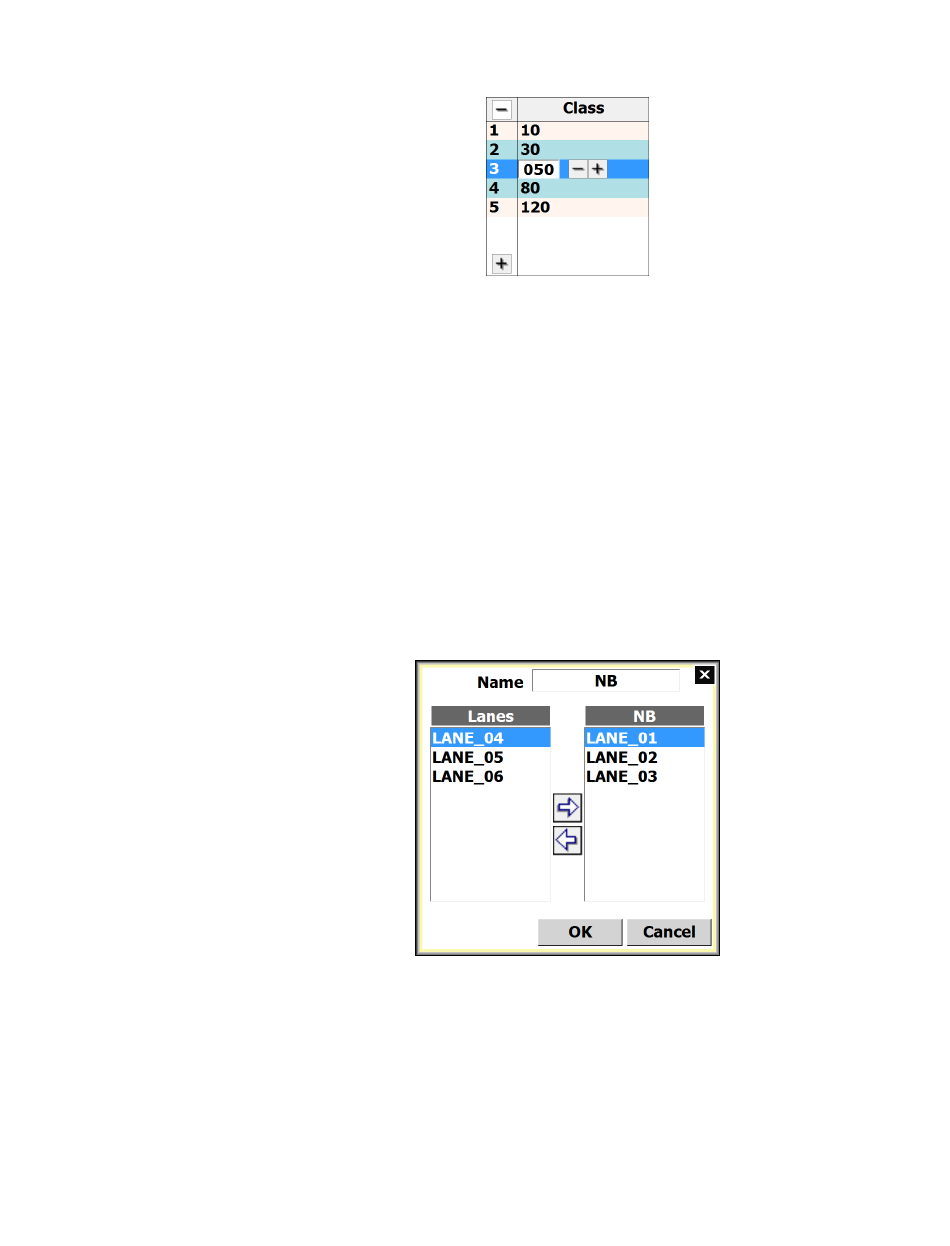

Figure 81. Adjusting a class bin
Figure 82. Approaches window
