Adding a lane

1 Click on the spot where you want to add a lane. The Shoulder Area
window will appear.
2 Click Add Lane. The new lane will appear black, unlike a blue auto-
matically configured lane.

Editing a lane name

1 Click on the lane you want to edit. The Lane window will appear.

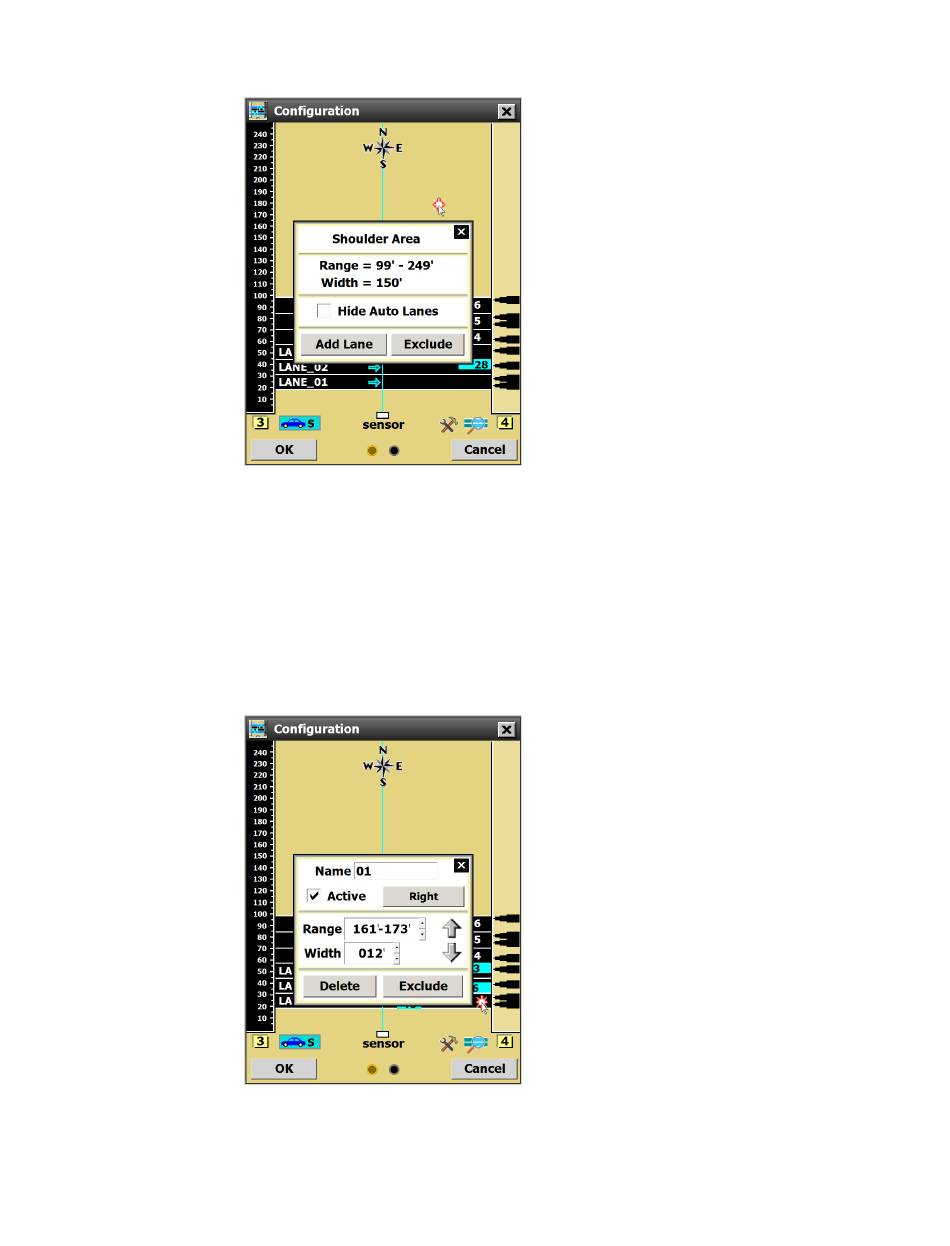

Figure 58. Shoulder Area window
Figure 59. Lane window
Note. Other options
found in the Lane
window will be covered
later in this chapter.
Note. The software
won't let you use
"LANE_xx" as the
format (since that's
the format it uses),
but you can use the
lowercase version,
"Lane_xx", if you'd like.
Chapter 7: Configuring Lanes
53
•
