Note. This section
assumes you are
using the Standard
Preassembled Cabinet
from Wavetronix. If
you bought individual
Click modules instead,
see Click 100–400
Series User Guide and
support document
295, How to Assemble
the Power Plant. If
you are not using
Wavetronix devices,
contact your dealer or
visit the knowledge
base at www.
wavetronix.com.
24
SmartSensor HD User Guide
•
Installations with a pole-mount
box and traffic cabinet
As shown below, this is an installation where the sensor cable runs down
the pole to the pole-mount box, then down to ground level, where it
runs underground to a traffic cabinet. Power and communication mod-
ules are located in the cabinet, and power is sent to the sensor via the
sensor cable.

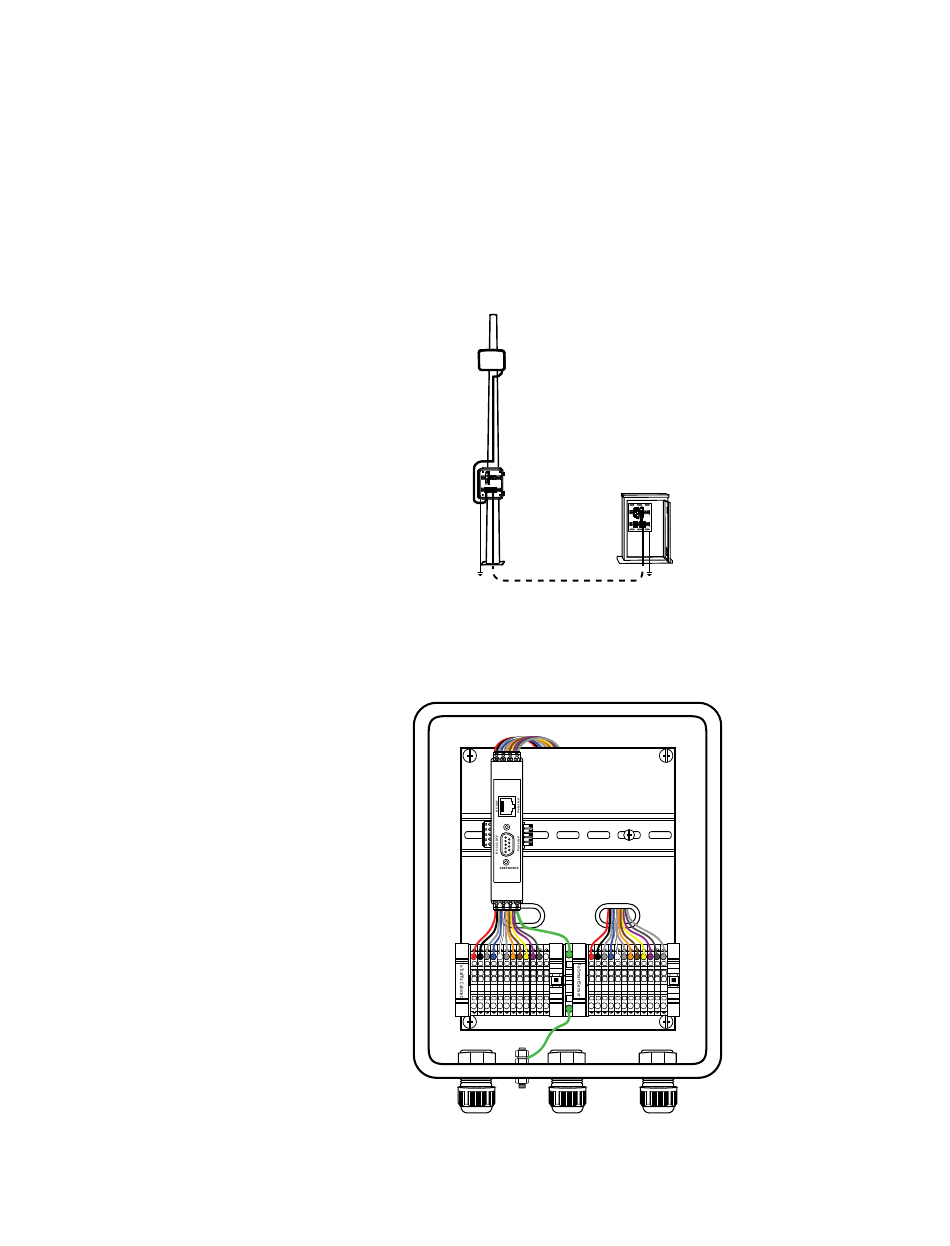

Figure 19. Installation with pole-mount box and traffic cabinet

Setting up the pole-mount box

Figure 20. Surge Preassembled Cabinet (pole-mount box)
Lightning
Surge
Protection
W
Click!
200
+DC -DC GND 485- 485+ GND RTS CTS TD RD GND GND +DC -DC GND 485- 485+ GND RTS CTS TD RD GND GND
