Using The Shoulder Area Window - Wavetronix SmartSensor HD User Manual

66
SmartSensor HD User Guide
•

Using the Shoulder Area window

Click in the shoulder (tan) area to open this window.
Setting Description
Range & Shows the size and
Width
placement of the lanes
(Range refers to the
distance from the sensor).
Hide Auto Hides (but does not
Lanes
delete) the automatically
configured lanes from the
edit area.
Add Lane
Creates a new lane in the
spot you clicked on.
Exclude
Tells the sensor to ignore
the area you clicked on;
detections there won't affect
alignment or configuration.
To include the area
again, click it to open the
Excluded Area window and
click Include.

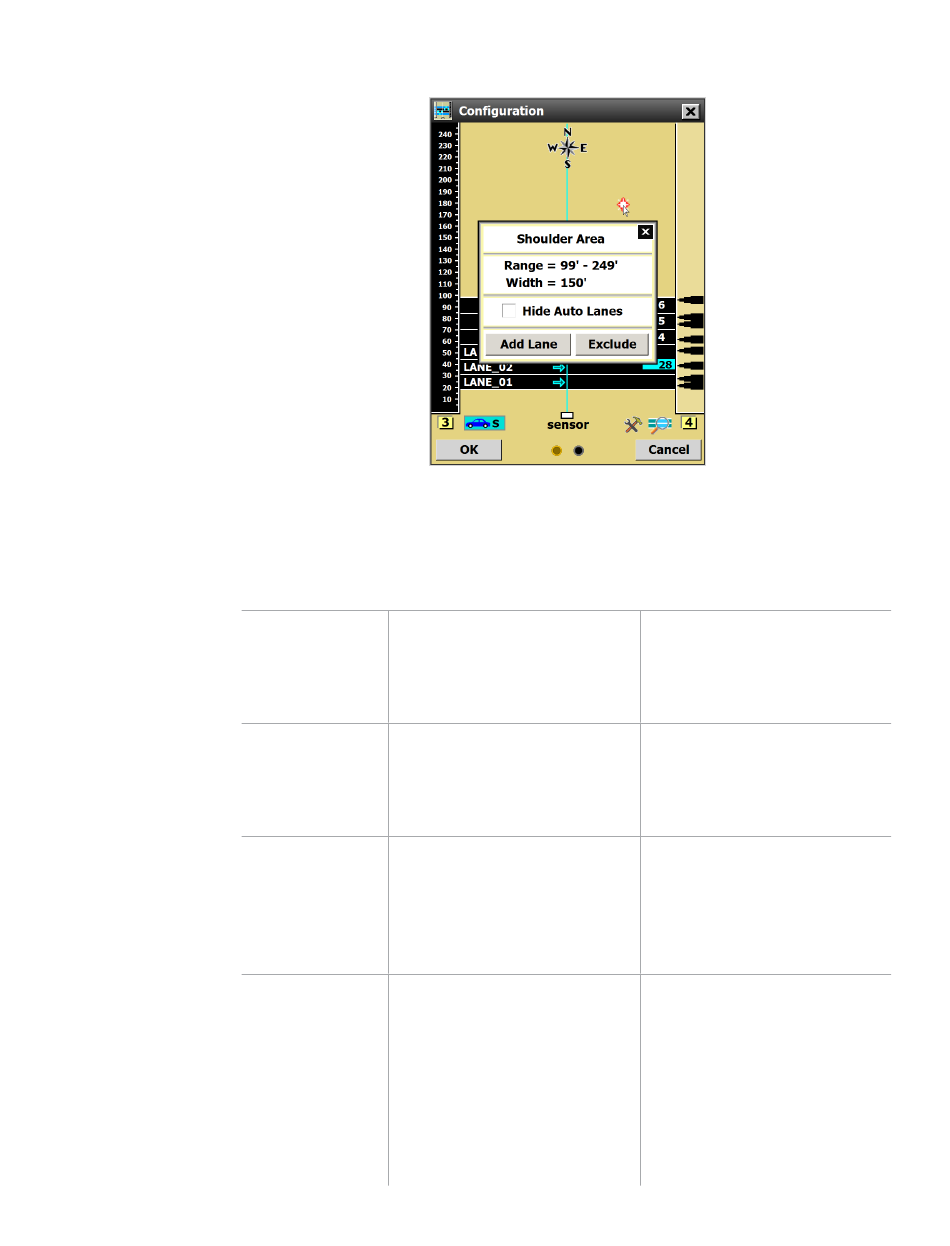

Figure 69. Shoulder Area window
Details
Can't be changed.
This can also be done
through the View menu.
Unlike automatically
configured lanes, which are
blue when they first appear,
user-created lanes will
appear black.
This may be useful
in order to ignore
phantom detections from
multipathing. An excluded
area will turn red.
