Excluding Or Including A Lane Or Area - Wavetronix SmartSensor HD User Manual

Note. Excluding a
lane or area is useful
when you're aligning
the sensor and there
are non-parallel lanes
that are making the
alignment difficult. It
can also stop events
from being generated
in any non-lane areas.
52
SmartSensor HD User Guide
•
1
Open the Tools menu by clicking the hammer and wrench icon, then
select Clear Edit Area.
2
Click on the sidebar button until sidebar 1 appears.
3 Open the Tools menu again and select Restart Auto Cfg.
4
Let the configuration process run (this could take a few seconds to a
few minutes) until all of the lanes have been found by SSMHD; they
will appear as blue bars in the sidebar and, if Show Auto Lanes is
turned on, in the edit area.
If the software's set to Show Auto Lane, change it: open the View menu
5
by clicking the magnifying glass icon, and select Hide Auto Lanes;
the automatically detected lanes will disappear from the edit area.
6 If you want to capture all the lanes that appear in the sidebar,
click anywhere in the sidebar; in the Automatic Lane window that
appears, click Copy Sidebar. If you only want to capture certain
lanes, click on those lanes in the sidebar; in the Automatic Lane
window that appears, click Copy Lane. Repeat as needed. Captured
lanes will appear black.

Excluding or including a lane or area

1 Click on the lane or shoulder area you want to exclude. The Shoul-
der Area window or Lane window will appear, based on which you
clicked.
Click the Exclude button.
2
3 To include an area that has previously been excluded, click on it to
open this window again, and click Include.

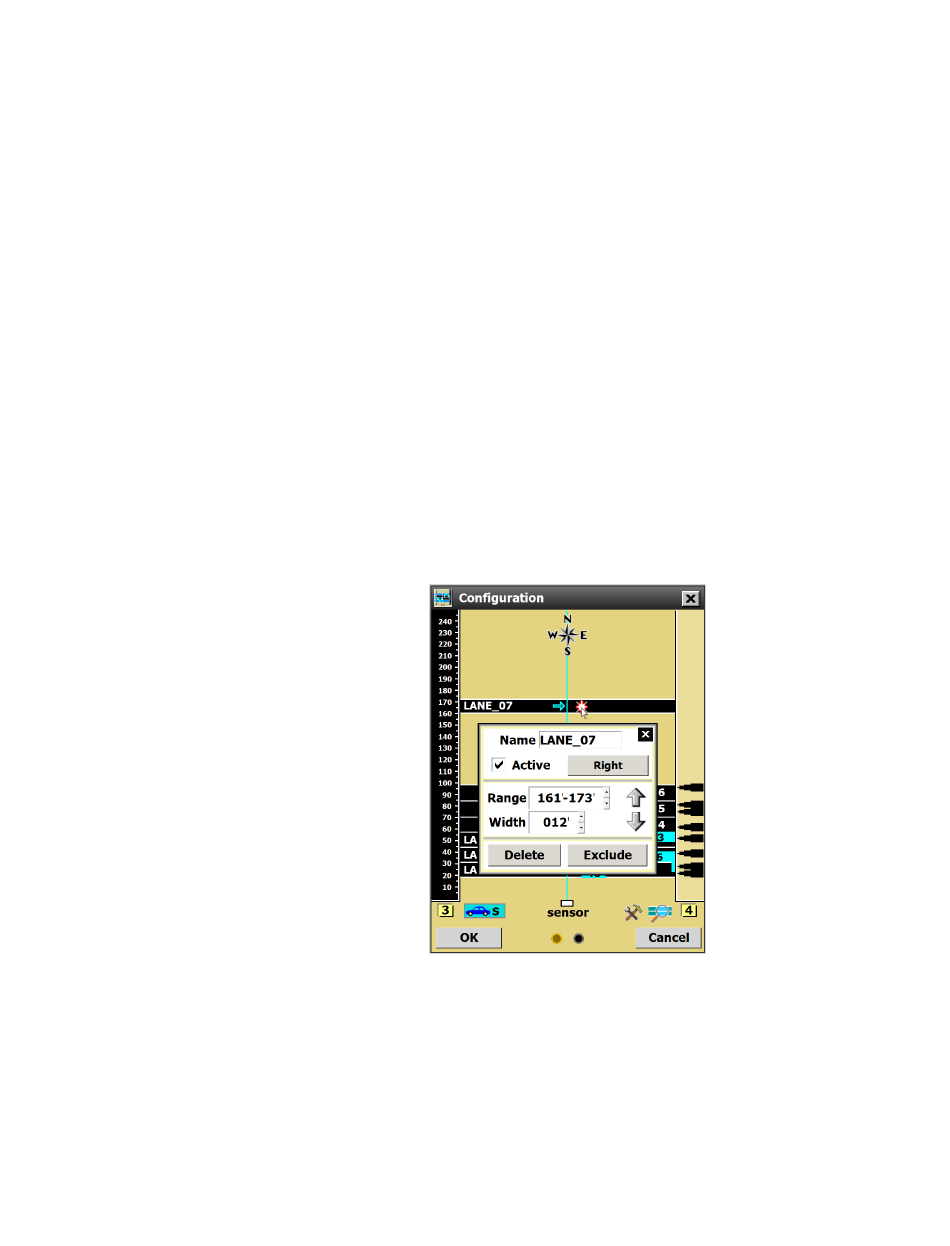

Figure 57. Lane window
